Bals Elektrotechnik 300 300 CEE connector 16.0 A 5-pin 400 V 1 pc(s)
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 11.76
3
5% = € 0.59
€ 11.17
5
7% = € 0.82
€ 10.94
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 11.76 / piece)
€ 11.76
plus VAT.
Technical specifications
- IEC current 16 A.
- Number of pins: 5
- Voltage according to EN 60309-2: 400 V (50+60 Hz) red
- Time setting 6 h
- Colour code: Red
- RAL number: 3000
- Protection class (IP) IP54
- Connection technology: Screw less terminal
- With straight plug
- Cable entry: Screw connection
- Material: Plastic
- Contact material CuZn
- Surface treatment contacts: Untreated
- Military version: No.
- Product type
CEE connector
- Nominal voltage
400 V
- Nominal current
16.0 A
- Nominal current - rounded value
16 A
- Type A
Screwless terminal
- Type
straight
IP54
- Factory colour
Red
- Content
1 pc(s)
- Number of pins
5
- Weight
0.2200 kg
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 3306583 Bals Elektrotechnik 300 300 CEE connector 16.0 A 5-pin 400 V 1 pc(s)
User & Safety Instructions
User & Safety Instructions 3306583 Bals Elektrotechnik 300 300 CEE connector 16.0 A 5-pin 400 V 1 pc(s)
Description
INNOLINQ QC coupling
16A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP54
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Contact carriers/contacts: The contacts are bare brass, the contact carrier is made of highly heat-resistant material
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with KONTEX-ULTRA contact
Cable entry: With cable gland
Colour: Dark gray hinged lid RAL 7012, red collar RAL 3000, dark gray cable gland RAL 7012, dark gray housing cover RAL 7012

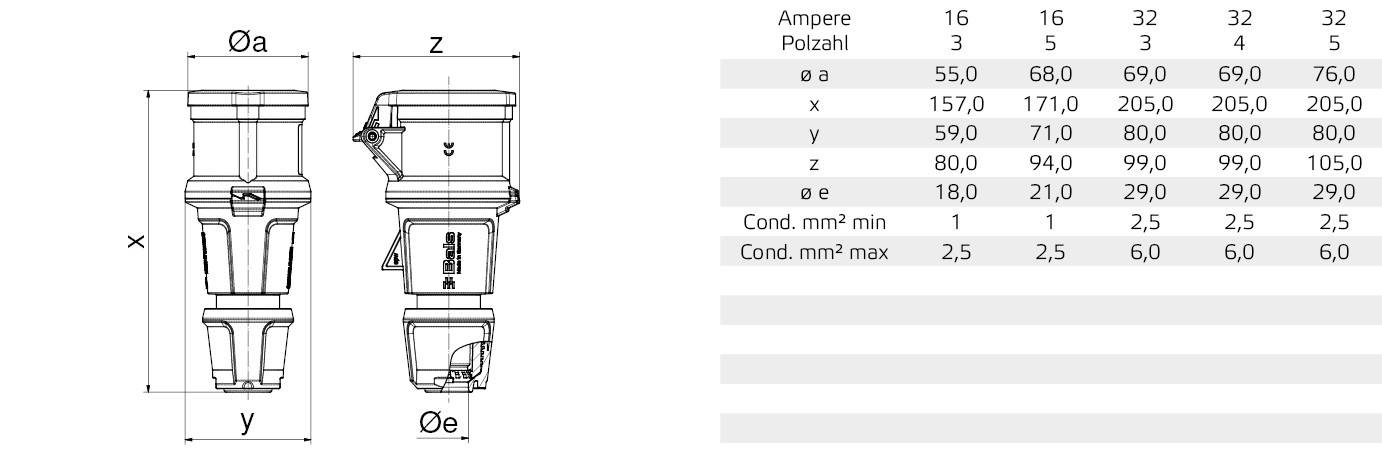

Device height: 171 mm, device width: 71 mm, device depth: 94 mm
Halogen-free: Yes
Other technical features: This product is without lead, with MULTI-Grip cable gland and integrated strain relief, the connection of the housing parts is screwless and is locked by a locking catch. It is possible to open it with a screwdriver. For cables with a min. Diameter from 10mm to max. Diameter 21 mm
This text is machine translated.
16A 5P (3P+N+PE) 400V (200/346 - 240/415V~) 6H IP54
Mains frequency: 50/60Hz.
Technical color: Red RAL 3000
Contact carriers/contacts: The contacts are bare brass, the contact carrier is made of highly heat-resistant material
Maximum cross-section of 2.5 sqmm
Housing material: Polyamid
Connection technology: Screw-less spring-cage terminal technology with KONTEX-ULTRA contact
Cable entry: With cable gland
Colour: Dark gray hinged lid RAL 7012, red collar RAL 3000, dark gray cable gland RAL 7012, dark gray housing cover RAL 7012
Device height: 171 mm, device width: 71 mm, device depth: 94 mm
Halogen-free: Yes
Other technical features: This product is without lead, with MULTI-Grip cable gland and integrated strain relief, the connection of the housing parts is screwless and is locked by a locking catch. It is possible to open it with a screwdriver. For cables with a min. Diameter from 10mm to max. Diameter 21 mm
This text is machine translated.
