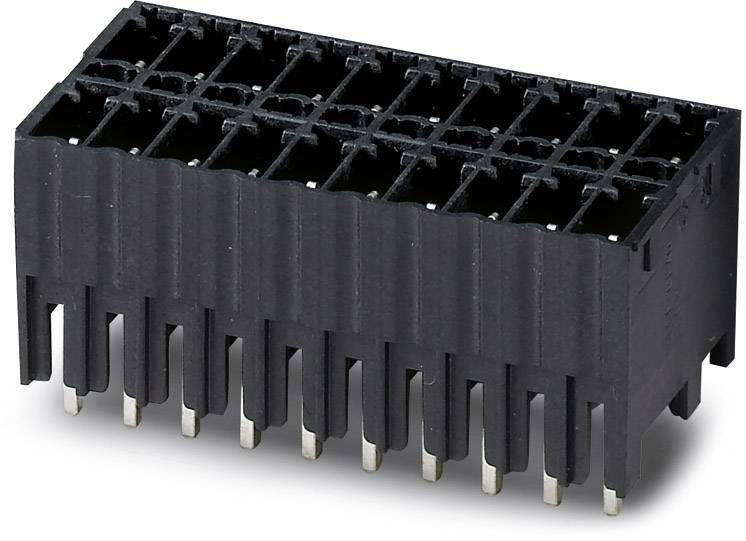

Image similar
Base strip MCDNV 1,5/20-G1-3,5 P26THR 1952966 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Pin housing PCB
Connector type
Plug, horizontal mount
No. of rows
1
Series
MCDNV
CS
3.50 mm
Datasheet (PDF)
Number (Package size 50 pc(s))
Total (€ 12.70 / piece)
€ 635.00
incl. VAT
14-day return policy included
Highlights & Details
Base strip MCDNV 1,5/20-G1-3,5 P26THR
- Content: 50 pc(s)
- No. of rows: 1
- Total number of pins: 20
Technical specifications
- Product type
Pin housing PCB
- Connector type
Plug, horizontal mount
- No. of rows
1
- Connector system
wire-to-board
- Series
MCDNV
- CS
3.50 mm
- Pins per row
20
- Total number of pins
20
- Width
71.50 mm
- Nominal current
8 A
- Nominal current - rounded value
8 A
- Content
50 pc(s)
- Dim
(L x W x H) 15.90 x 71.50 x 16.00 mm
- Connection
Print
- Manufacturer part #
1952966
- Factory colour
Black
- Industrial packaging
Yes
- Contact material
Tin plated
- Nominal voltage
160 V
- Height
16.00 mm
- Length
15.90 mm
- Connector orientation
Perpendicular (to the PCB)
- Type
MCDNV 1,5/20-G1-3,5 P26THR
Documents & Downloads
Datasheet
Datasheet 569338 Base strip MCDNV 1,5/20-G1-3,5 P26THR 1952966 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 569338 Base strip MCDNV 1,5/20-G1-3,5 P26THR 1952966 Phoenix Contact
Description
Header, Nominal current: 8 A, Rated voltage (III/2): 200 V, Number of positions: 20, Pitch: 3.5 mm, Color: Black, Contact surface: Tin, Assembly: SMD/THT/THR, The pin length is 26 mm. User information and design recommendations on Through Hole Reflow Technology can be found at: http://www.combicon.com
