Benning 11001243 EV 3-1 Wallbox socket tester
EAN:
Part number:
Item no:
Number
Total (€ 155.45 / piece)
€ 155.45
plus VAT.
14-day return policy included
Highlights & Details
Benning 11001243 EV 3-1 Wallbox socket tester
- Wallbox tester and measurement adapter for function testing with type 2 charging plug
Technical specifications
- Signal output: Yes
- Vehicle status simulation: Yes
- Status display charging: Yes
- Depth: 0 mm
- Product type
Wallbox socket tester
- Charging mode
Mode 3
- Protection class
CAT II
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3730915 Benning 11001243 EV 3-1 Wallbox socket tester
Description

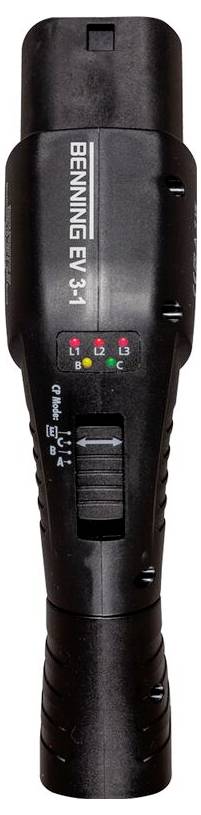

Benning EV 3-1. The wall-box tester and measurement adapter
Benning EV 3-1 enables easy and fast function testing as well as fault finding on wall speakers. In conjunction with a suitable installation tester, the safety and function test of AC charging stations (wall boxes) for electric vehicles can be demonstrated in accordance with DIN VDE 0100-600 (IEC 60364-6) and DIN VDE 0105-100 (EN 50110) standards. Compatible for 1 and 3-phase charging stations (EVSE) of the 3 charging mode with type 2 connector. Enables easy functional testing of the Wallbox as well as the contact of the installation tester with the charging station. Simulation of different vehicle statuses: A (not connected), B (connected, not ready), C (charging without ventilation), E (fault, short circuit between CP-PE). Display of the output voltage (L1/L2/L3) and vehicle states (B/C) via colored LEDs. EVSE locking system check from status B (charging cable release is blocked). 4 mm sockets (L1/L2/L3/N/PE) for easy connection with installation tester. 4 mm socket (CP-signal) for analysis of the CP-signal via an oscilloscope/multimeter. Can be used at all common charging stations (wall boxes) with charging socket and fixed-connected charging cable type 2. Thanks to its easy handling, it can also be operated by electrotechnical personnel (EUPs). Measurement category CAT II 300 V
This text is machine translated.
Benning EV 3-1 enables easy and fast function testing as well as fault finding on wall speakers. In conjunction with a suitable installation tester, the safety and function test of AC charging stations (wall boxes) for electric vehicles can be demonstrated in accordance with DIN VDE 0100-600 (IEC 60364-6) and DIN VDE 0105-100 (EN 50110) standards. Compatible for 1 and 3-phase charging stations (EVSE) of the 3 charging mode with type 2 connector. Enables easy functional testing of the Wallbox as well as the contact of the installation tester with the charging station. Simulation of different vehicle statuses: A (not connected), B (connected, not ready), C (charging without ventilation), E (fault, short circuit between CP-PE). Display of the output voltage (L1/L2/L3) and vehicle states (B/C) via colored LEDs. EVSE locking system check from status B (charging cable release is blocked). 4 mm sockets (L1/L2/L3/N/PE) for easy connection with installation tester. 4 mm socket (CP-signal) for analysis of the CP-signal via an oscilloscope/multimeter. Can be used at all common charging stations (wall boxes) with charging socket and fixed-connected charging cable type 2. Thanks to its easy handling, it can also be operated by electrotechnical personnel (EUPs). Measurement category CAT II 300 V
