Benning CM 11 Clamp meter, Handheld multimeter Calibrated to (ISO standards) Digital ISO calibration CAT IV 300 V Displa
EAN:
Part number:
Item no:
Highlights & Details

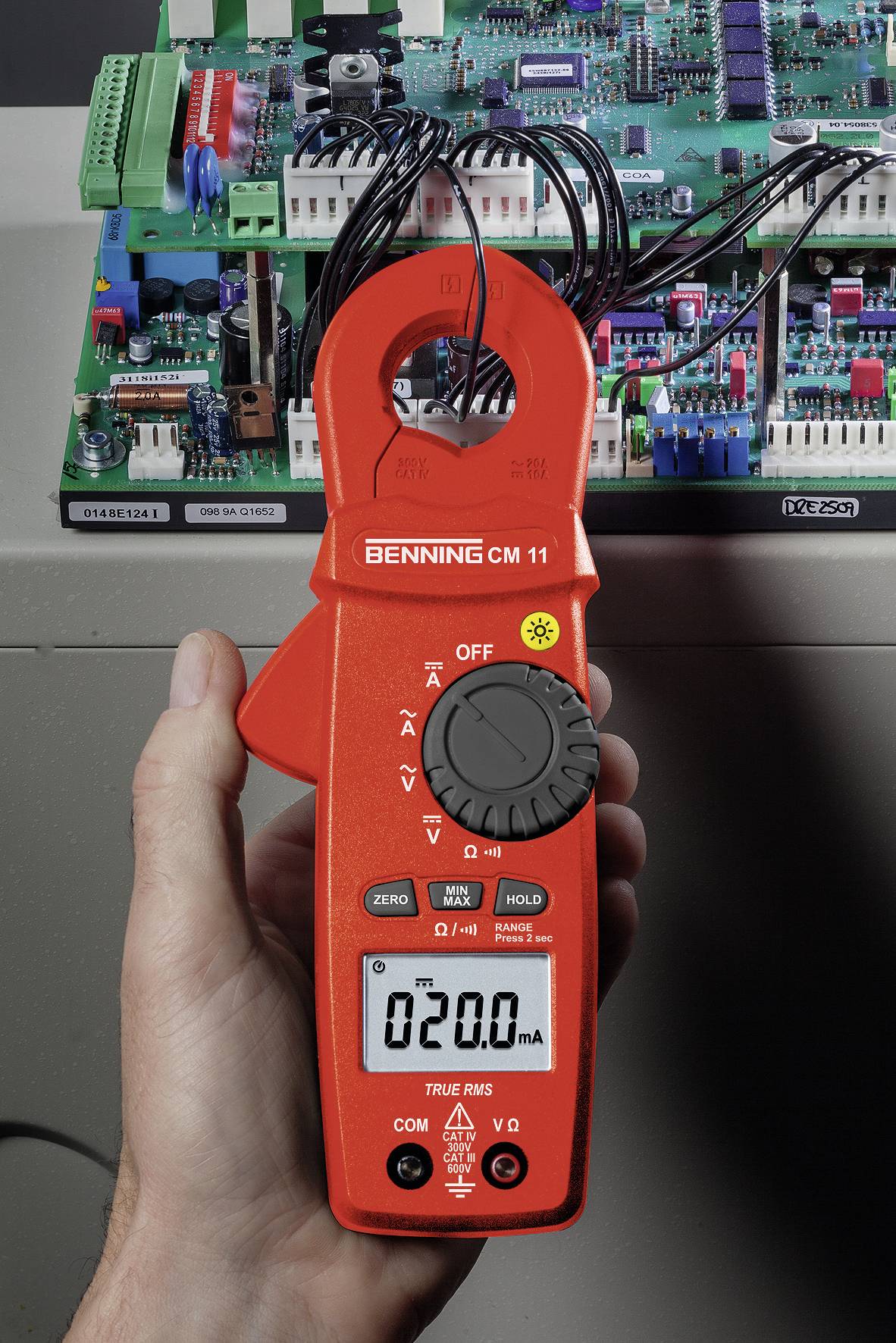

TRUE RMS AC/DC milliampere clamp-on ammeter multimeter BENNING CM 11
- Ideal for detecting faults in electrical systems, control systems, devices and car electrics
- Precise measurement of small AC/DC currents with the highest resolution of 0.1 mA
- Versatile useable for voltage, resistance and continuity testing
- Precise through real-effective value procedure TRUE RMS
- Compact dimensions (L x W x H 206 x 76 x 33 mm) with 23 mm clamp opening
- Measurement category CAT IV 300 V
Technical specifications
- Voltage reading range DC (min.)
0.01 V
- Product type
Clamp meter
- Voltage DC reading range (max.)
600 V
- V AC reading range (min.)
0.01 V
- V AC reading range (max.)
600 V
- Amperage reading range DC (min.)
0.1 mA
- A DC reading range (max.)
10 A
- A AC reading range (min.)
0.1 mA
- Amperage reading range AC (max.)
20 A
- Reading range - resistance
0.1 Ω - 600 kΩ
- Measurement type (details)
True RMS
- Power supply (details)
2 x 1.5 V Micro (AAA)
- Height
206 mm
- Width
76 mm
- Length
33 mm
- Weight
300 g
ISO standards
- Reading category
CAT IV 300 V
- Voltage metering
AC/DC
- Current reading
AC/DC
- Type
CM 11
- Display
Digital
- Display (counts)
6000
- Dim
(L x W x H) 33 x 76 x 206 mm
- Features
ISO calibration
- Opening range of current clamps
23 mm
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1411575 Benning CM 11 Clamp meter, Handheld multimeter Calibrated to (ISO standards) Digital ISO calibration CAT IV 300 V Displa
Information
Information 1411575 Benning CM 11 Clamp meter, Handheld multimeter Calibrated to (ISO standards) Digital ISO calibration CAT IV 300 V Displa
Description

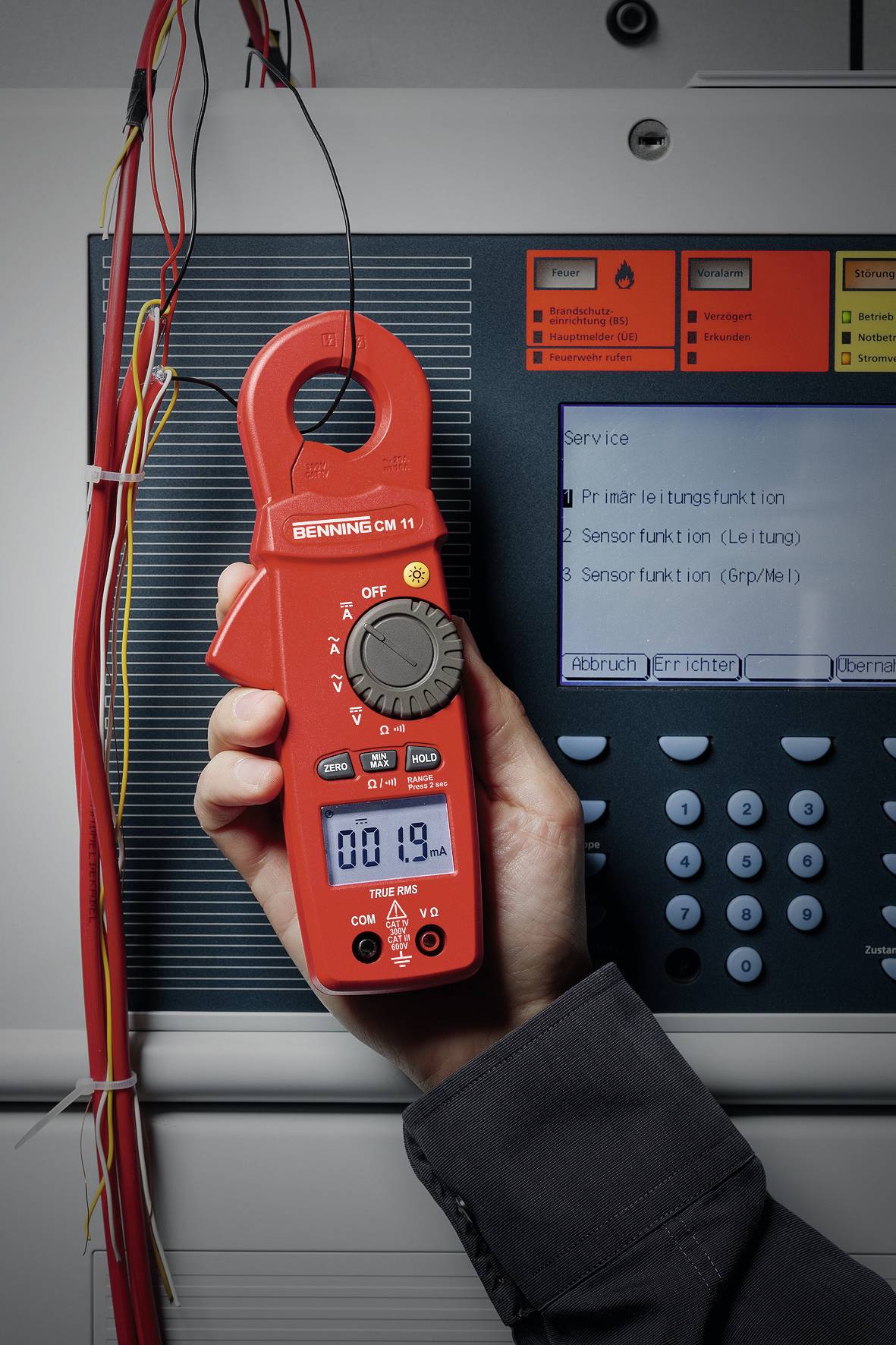

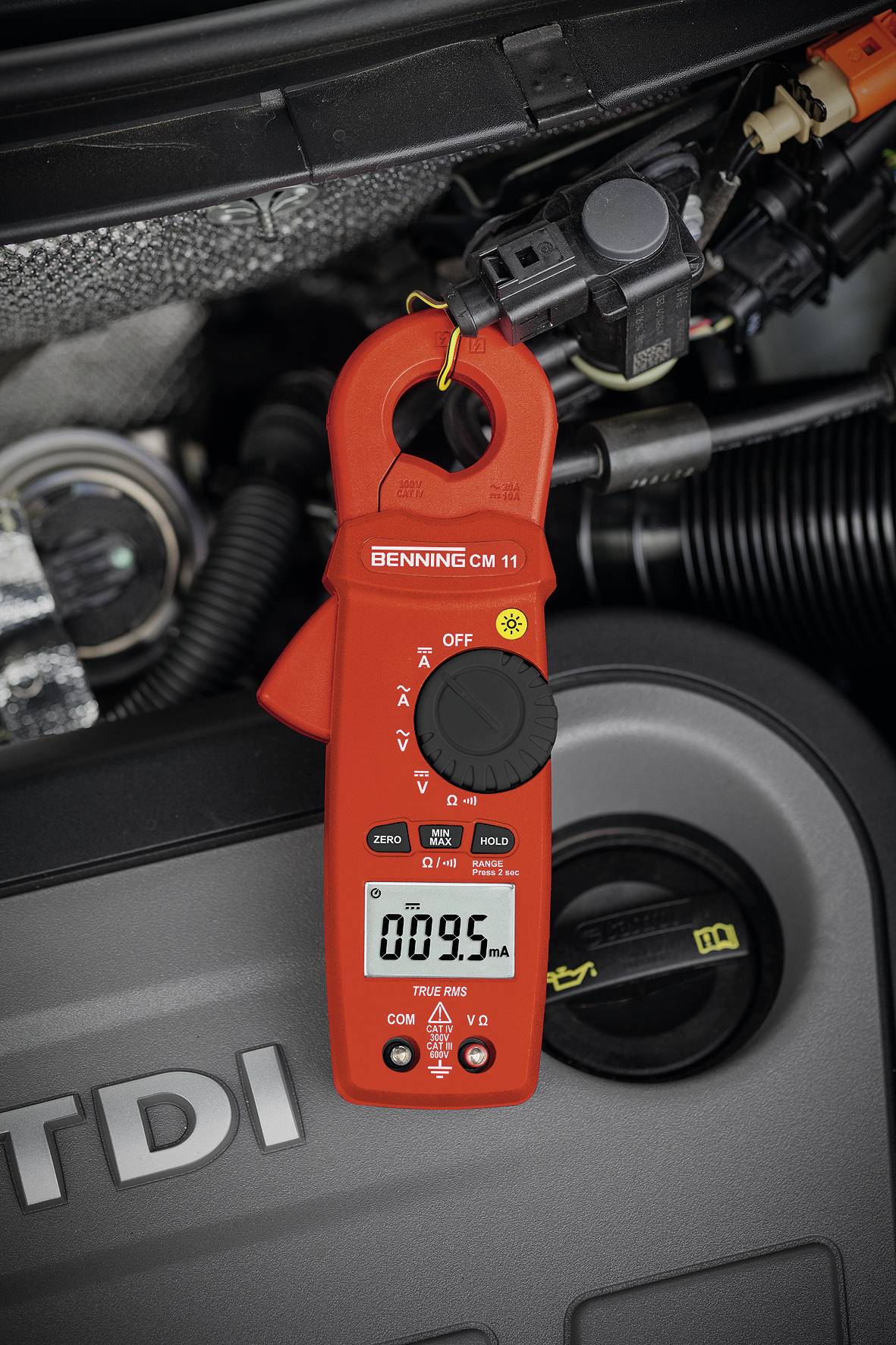

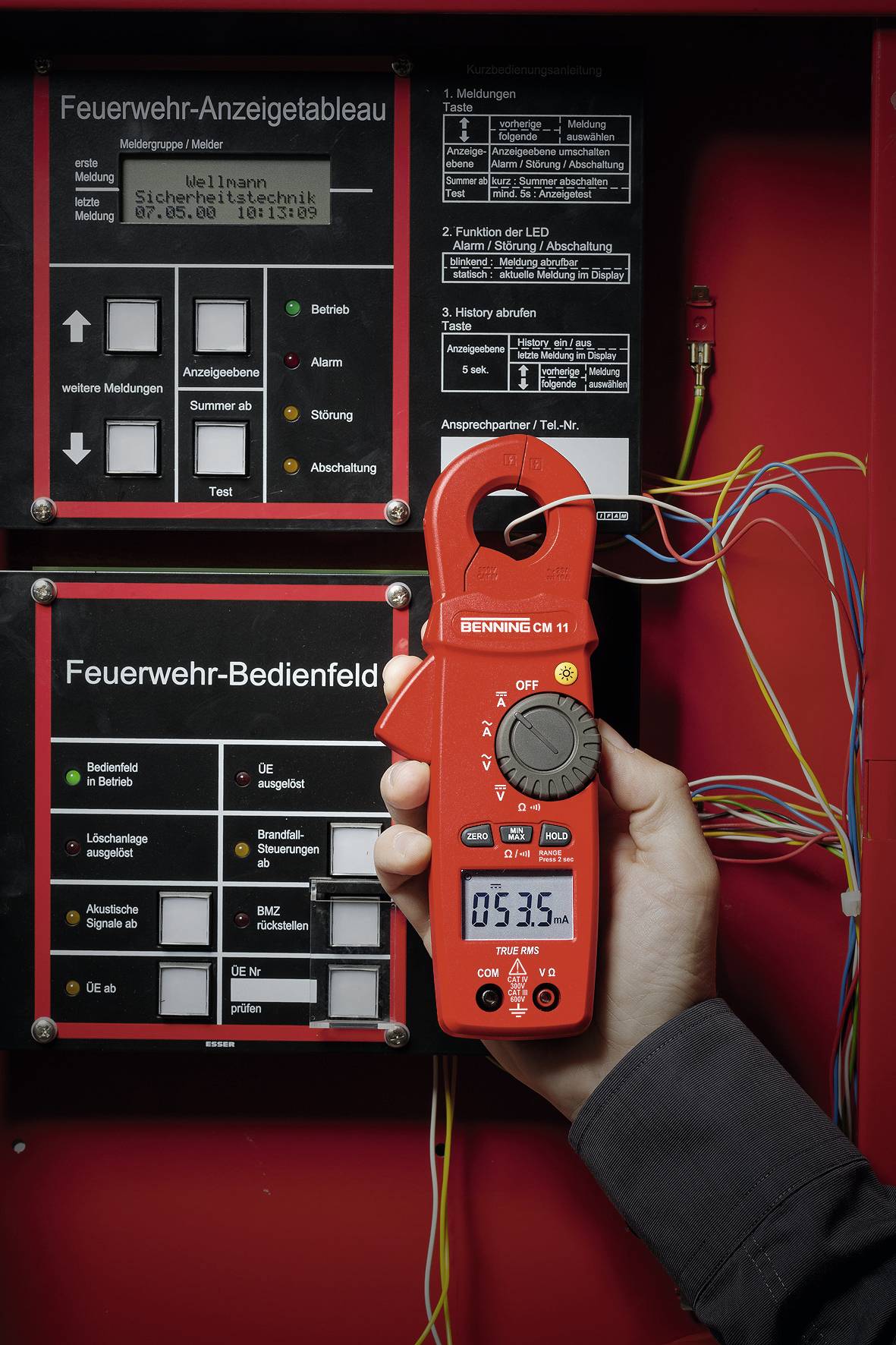

Ideal tool for all electrical experts, service technicians and maintenance electrical trade and industry. Due to the high level of accuracy in the direct and alternating current range, the BENNING CM 11 especially for the faults in electrical systems, control systems, devices and car electrics. Precise measurement of small AC/DC currents with the highest resolution of 0.1 mA. Versatile useable for voltage, resistance and continuity testing. Real-effective value procedure TRUE RMS for precise measurement results even with non-sinusoidal signal processes. Measurement of leakage, differential and leakage currents from 4 mA - 20 mA process signals without interrupting the current loop as well as load currents up to 20 A AC/10A DC. Quiescent current measurement on car batteries for review sneaking battery discharge. Compact dimensions (L x W x H 206 x 76 x 33 mm) at 23 mm clamp opening. The highest measurement category CAT IV 300 V provides optimum protection against transient overvoltages.
This text is machine translated.
This text is machine translated.

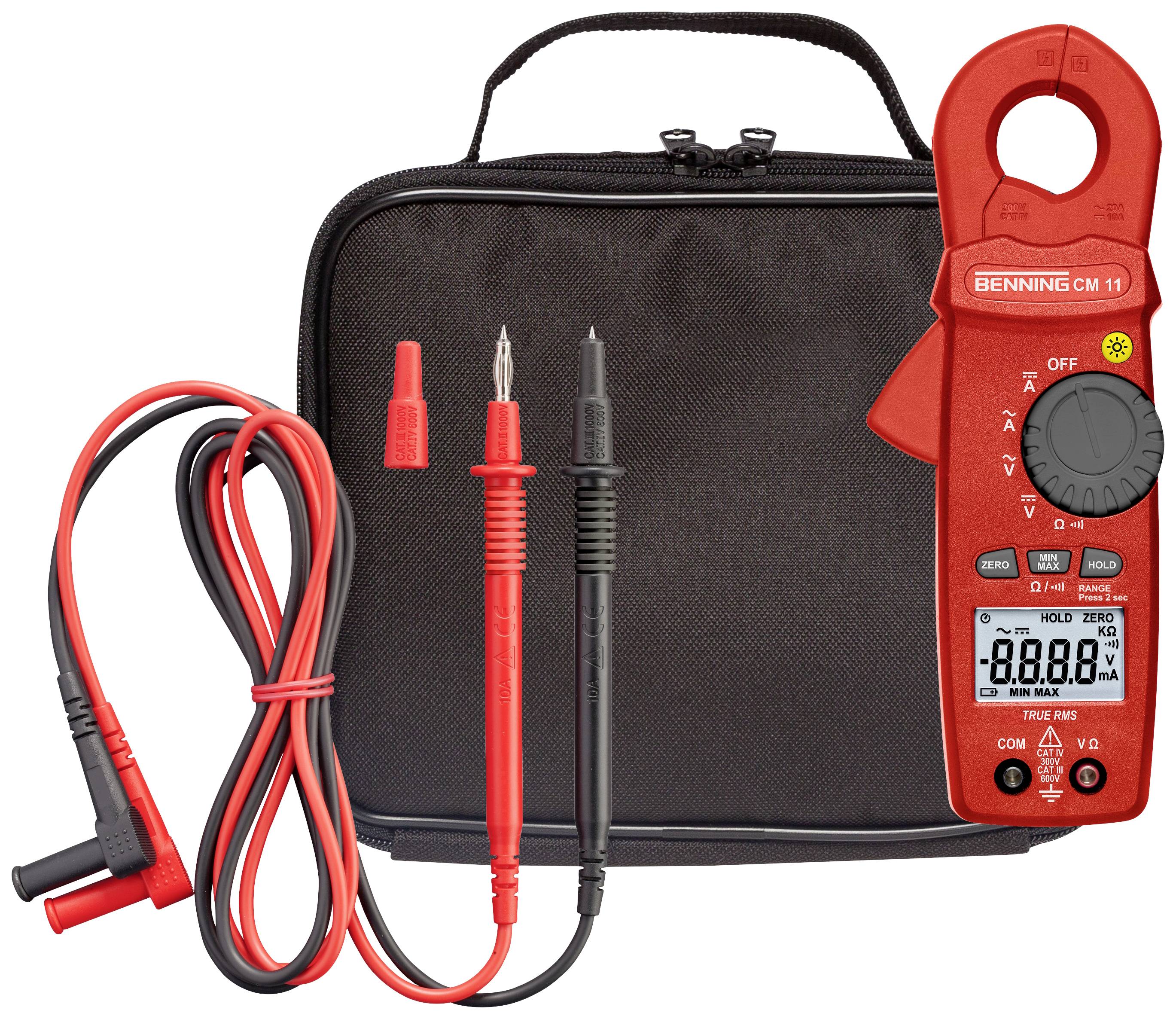

Scope of delivery
- Bag
- Batteries
- Test Leads
- User manual.
