A red digital insulation measuring device with a display shows various measurement options and buttons for control and selection.

A red digital insulation measuring device with a display shows various measurement options and buttons for control and selection.

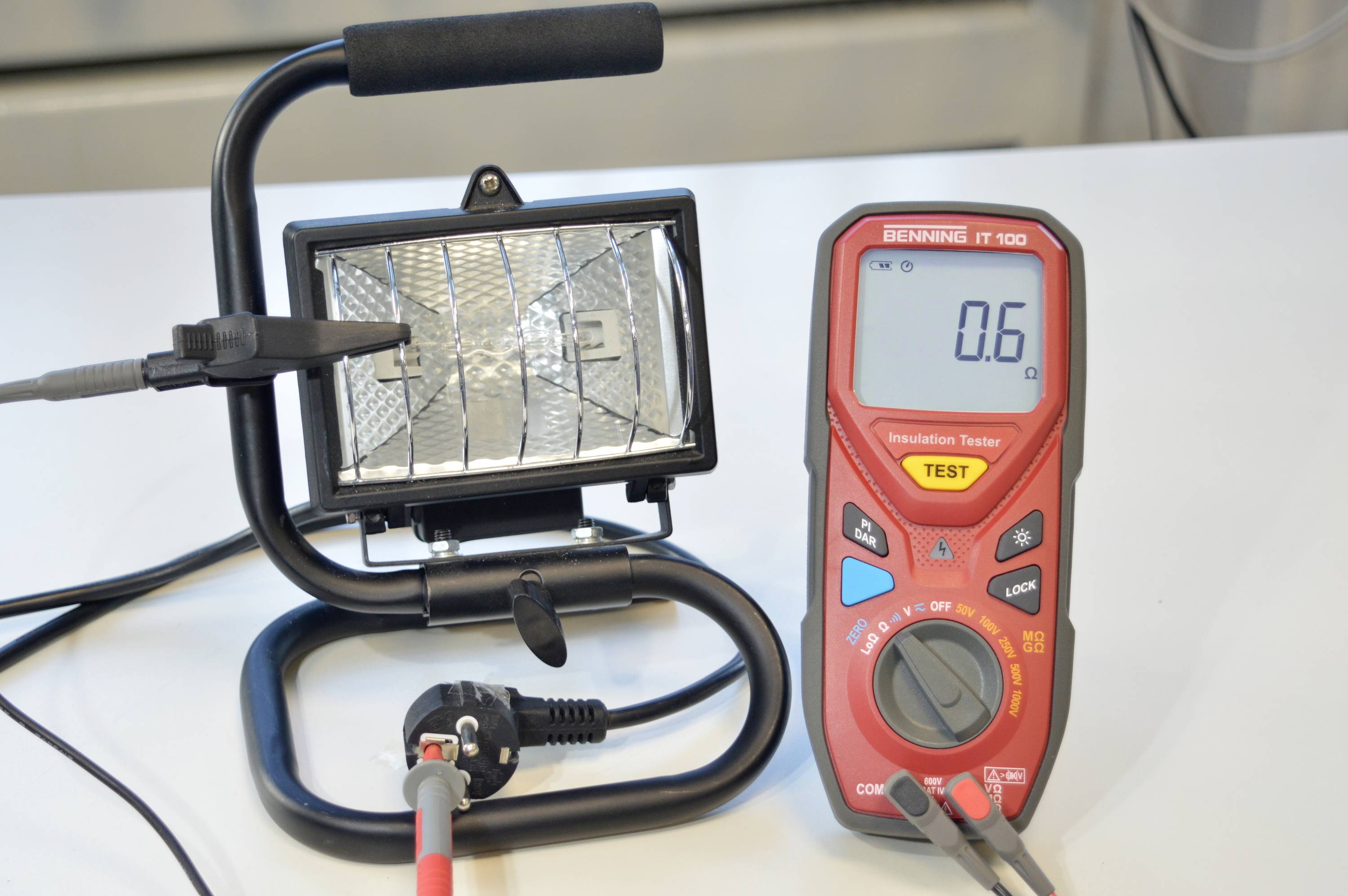

A red multimeter displays '0.6' and is connected to a black work light which is standing on a table.

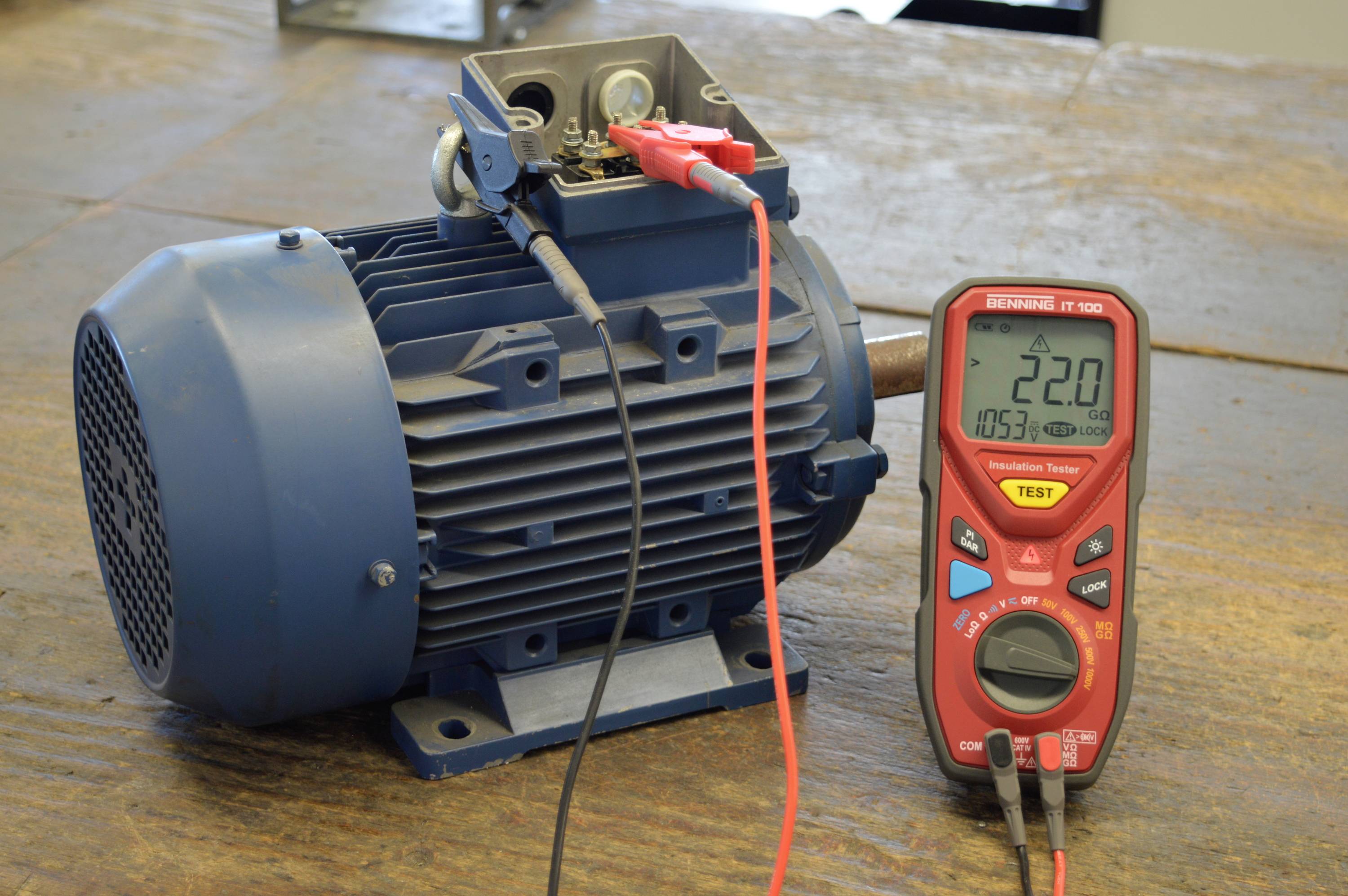

An electric motor on a table is being measured with a multimeter, which shows a reading of 22.0 ohms.

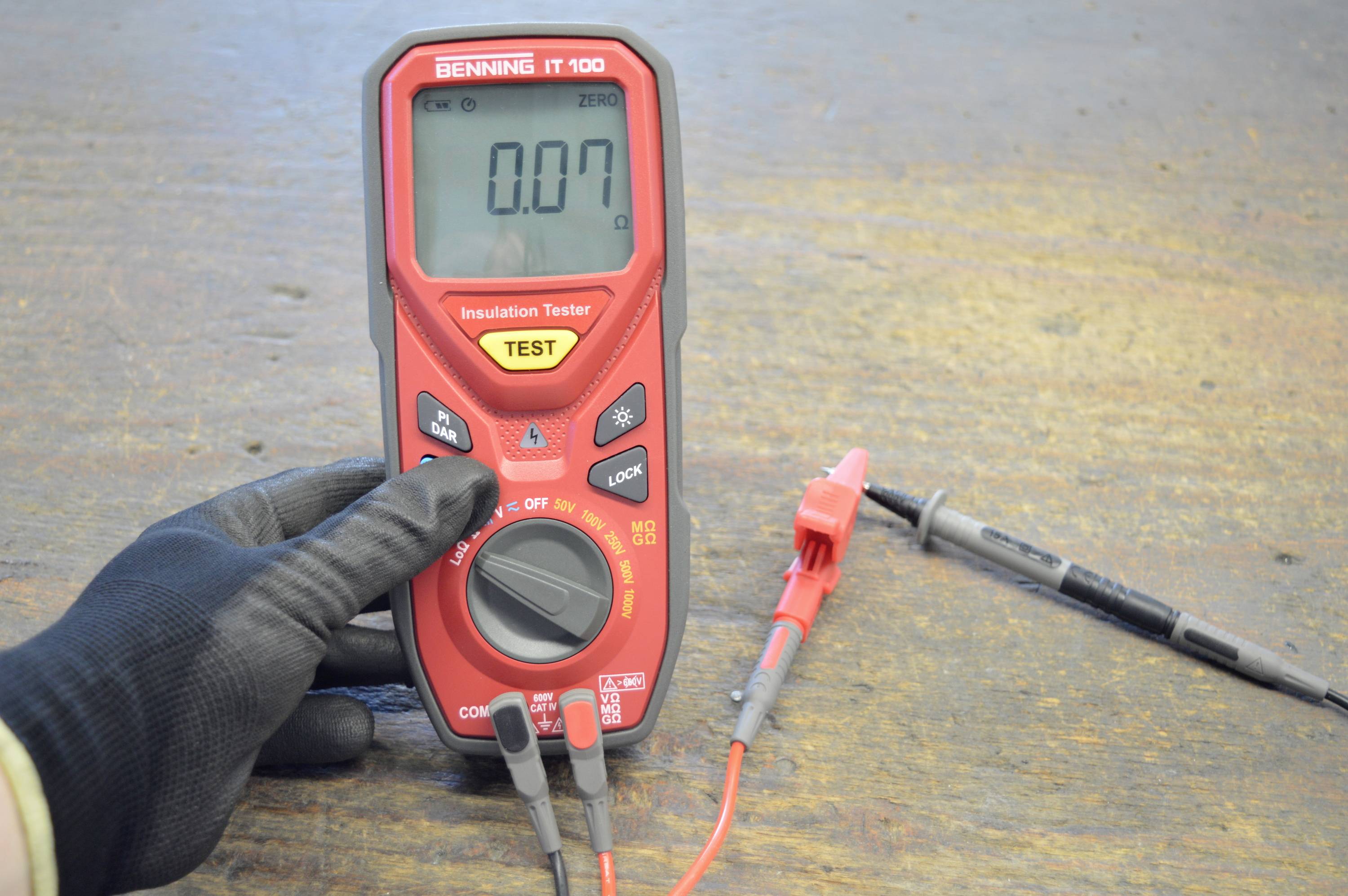

A red multimeter displays '0.07'. A gloved hand is holding the device, which is connected to two cables with clamps.

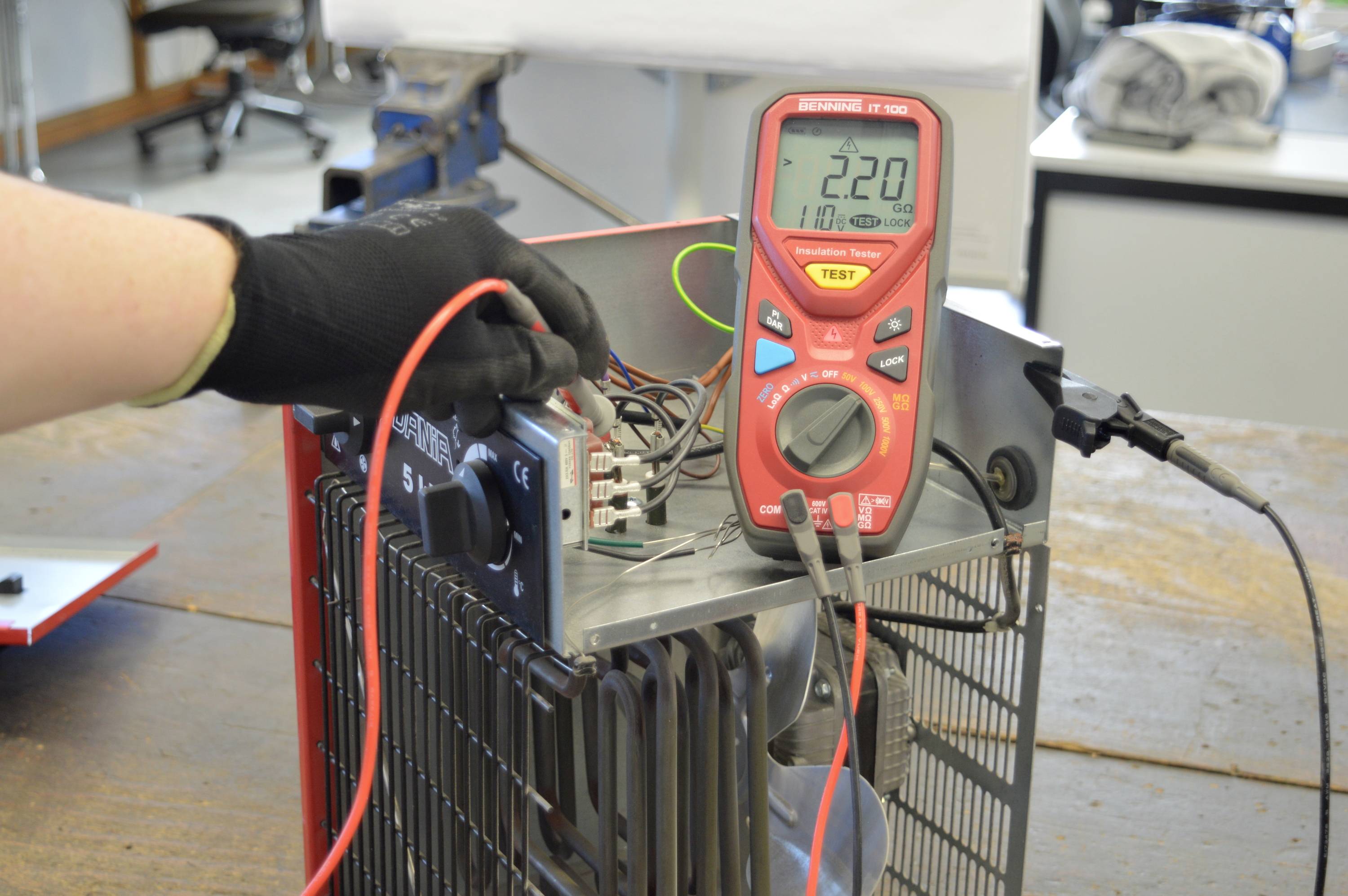

A hand wearing a black glove is holding a multimeter connected to an electrical device. The display shows '220' volts.

1/5

Benning

Datasheet (PDF)

Deutsch (Deutschland)

38 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 385.71 / piece)

€

Report legal concerns

Highlights & Details

Insulation and resistance measuring instrument IT 100

Polarisation index (PI)
Dielectric absorption (DAR)
Red LED for test/external voltage
Automatic discharge of capacitive voltages
Zero balance of measurement leads
Lock function for continuous insulation and low ohm measurement
Built-in fuse test
Test locking in case of counter voltage

Technical specifications

Low ohm measurement: Up to 60 ΩResistance measurement: 200 mA test current for testing protective conductor connections4-digit illuminated LCD display (9,999 points)

Product type: Insulation tester

Test voltage: 50 V
100 V
250 V
500 V
1000 V

Reading type: Insulation resistance

: Manufacturer's standards (no certificate)

Reading range - resistance: 600 kΩ

Power supply (details): 4 x AA batteries

Dim: (L x W x H) 206 x 90 x 51 mm

Weight: 510 g

Display type: Digital (LCD)

Insulation resistance (max.): 20 GΩ

Voltage reading range (max.): 600 V

Voltage reading range (min.): 0 V

Reading category: CAT IV 600 V

Width: 90 mm

Height: 51 mm

Length: 206 mm

Factory colour: Red

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 2613255 Benning IT 100 Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 20 GΩ

User & Safety Instructions

User & Safety Instructions 2613255 Benning IT 100 Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 20 GΩ

Description

For insulation and low-resistance measurements on electrical systems, devices, lines, motors and generators.

This text is machine translated.

Features

Polarization index (PI)Dielectric Absorption Rate (DAR)Red LED for test/external voltageAutomatic discharge of capacitive voltagesZero balance of measurement leadsLock function for continuous insulation and low-ohm measurementIntegrated fuse testTest lock for counter voltage

Scope of delivery

Includes bag
Probe tips
Test Leads
Alligator clips
Protective rubber surround
Batteries (4x 1.5 V AA/ LR6)
User manual.
