VOLTCRAFT ET-200 Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 20 GΩ-0

Our service for you

Datasheet (PDF)

295 Piece(s)

Do your needs go beyond this?

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 155.45 / piece)

€

Report legal concerns

Highlights & Details

Insulation tester ET-200

Test voltage 50/100/250/500/1000 V
Insulation resistance measurement up to 20 GΩ
Resistance measurement of 0.01 Ω - 20 kΩ

Technical specifications

Product type: Insulation tester

Test voltage: 50 V
100 V
250 V
500 V
1000 V

Reading type: Insulation resistance
AC voltage
DC voltage

Continuity testing: acoustic (test current 200 mA)

: Manufacturer's standards (no certificate)

Reading range - resistance: 0.01 Ω - 20.0 GΩ

Interfaces: none

: IP40

Power supply (details): 6 Mignon batteries (AA)

Dim: (L x W x H) 5.9 x 10.3 x 22.5 cm

Weight: 640 g

Display type: Digital (LCD)

Frequency range

Insulation resistance (max.): 20 GΩ

Voltage reading range (max.): 600 V

Voltage reading range (min.): 0.1 V

Reading category: CAT IV 600 V

Width: 10.3 cm

Height: 22.5 cm

Length: 5.9 cm

Documents & Downloads

Datasheet

Datasheet 1301293 VOLTCRAFT ET-200 Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 20 GΩ

User & Safety Instructions

User & Safety Instructions 1301293 VOLTCRAFT ET-200 Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 20 GΩ

Conformity certificate

Conformity certificate 1301293 VOLTCRAFT ET-200 Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 20 GΩ

Warranty Terms

Warranty Terms 1301293 VOLTCRAFT ET-200 Insulation tester 50 V, 100 V, 250 V, 500 V, 1000 V 20 GΩ

Description

This text is machine translated.

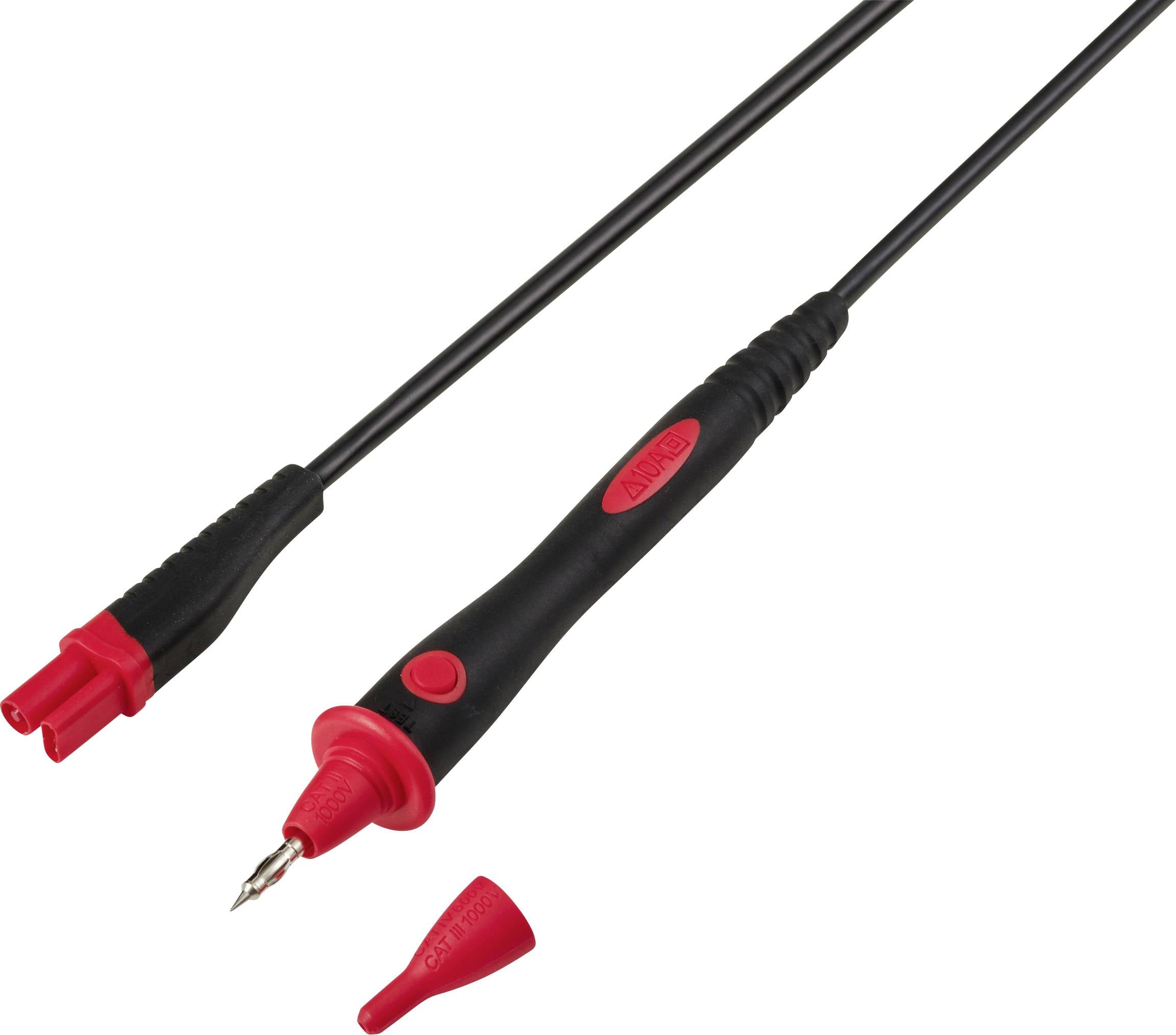

Measure insulation resistance up to max. 20 GΩ with test voltages 50/100/250/500/1000 V. In addition, the ET-200 measurement functions for DC and AC voltages up to 600 V CAT IV and for resistances up to 20kΩ. An optional remote trip test lead enables the measurement resolution directly at the probe tip; for this purpose, the ET-200 during the measurement not be held in the hand. By the soft rubber protection device is ideally protected against shocks.

Calculation of the polarization index (PI) and the dielectric absorption rate (DAR)
The polarization index and the dielectric absorption rate give information about the quality of the insulation.

Test time setting
The test time during long-term measurement can be preset depending on the need.

Comparison function with Pass/Fail Display
The limit values for a quick pass/fail display can be adjusted individually. As a result of this, user-specific tolerances easily verifiable.
