binder 09 0115 320 05 Mini DIN connector Sleeve plug Total number of pins: 5 1 pc(s)

'Connector with four colour-coded wires in a metal sleeve. Used for electrical connections in industrial applications.'
Technical drawing of a cylindrical connector with length and width measurements in millimetres, top view and side view.

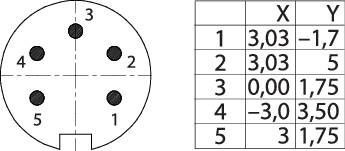

Rounded connection plan with five numbered pins on the left and a table on the right showing X and Y coordinates for each pin.
Technical drawing of a cylinder; showing edge lengths of 1 and diameter, with a 30-degree angle marking.
1/4
Image similar
Product type
Mini DIN connector
Connector type
Sleeve plug
Total no. of pins
5
Connection
Open end cable
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
38 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 20.99 / piece)
€ 20.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Type

09 0115 320 05

Product type

Mini DIN connector

Connector type

Sleeve plug

Total no. of pins

5

Connection

Open end cable

Content

1 pc(s)

Max. temperature

+85 °C

Nominal current

5 A

Min. temperature

-30 °C

Nominal current - rounded value

5 A

Seal

Screws

Leading contact (PE)

No

Nominal voltage

300 V

Contact material

CuSn

Case material

PBT, UL94V-0

22

Connection angle

180°

Manufacturer part #

09 0115 320 05

Number of pins

5

IP67
