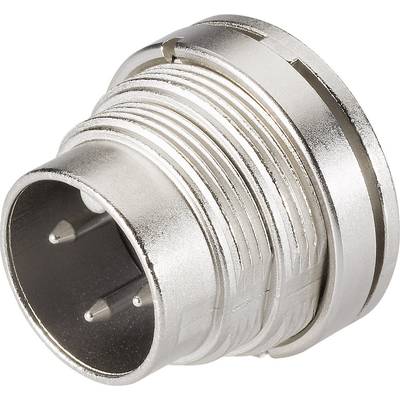

Image similar
binder 09-0311-80-04 Series 682 Miniature Circular Connector Nominal current (details): 6 A Pins: 4
Product type
Bullet connector
Connector type
Plug, mount
Total no. of pins
4
Connection
Soldering
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 7.99 / piece)
€ 7.99
incl. VAT
14-day return policy included
Highlights & Details
binder 09-0311-80-04 Series 682 Miniature Circular Connector Nominal current (details): 6 A Pins: 4
- IP40
Technical specifications
- Type
09-0311-80-04
- Product type
Bullet connector
- Connector type
Plug, mount
- Total no. of pins
4
- Connection
Soldering
- Content
1 pc(s)
- Nominal current
6 A
- Nominal current - rounded value
6 A
- Seal
Screw
- Nominal voltage
250 V
- Contact material
Silver plated
20
- Connection angle
180°
- Manufacturer part #
09-0311-80-04
- Number of pins
4
- max. cross section
0.75 mm²
- Cross-section range
0.75 mm² (max)
IP40
- Series
682
- Type
Flange plug
- Nominal voltage (details)
250 V
- Nominal current (details)
6 A
- Contamination level
1
- Cross section
0.75 mm²
- Pins
4
- Connection
Solder
- Temperature range
-40 - +85 °C
Documents & Downloads
Datasheet
Datasheet 737888 binder 09-0311-80-04 Series 682 Miniature Circular Connector Nominal current (details): 6 A Pins: 4
User & Safety Instructions
User & Safety Instructions 737888 binder 09-0311-80-04 Series 682 Miniature Circular Connector Nominal current (details): 6 A Pins: 4
Description
· Screw lock plug connector according to IEC 60130.9
· Good EMC
· Connector assembly with raised countersunk screw
· Good EMC
· Connector assembly with raised countersunk screw
