binder 09 0431 600 04 Mini DIN connector Plug, mount Total number of pins: 4 1 pc(s)

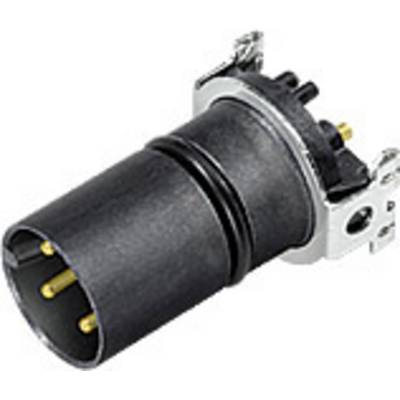

A black, cylindrical electrical plug with three gold-coloured pins and a silver fixing ring.
Technical drawing of an electric motor with dimensions of 20x12 units. Side and front views show connection details.
Technical drawing of a screw with marking 'Tightening torque', showing required minimum length.

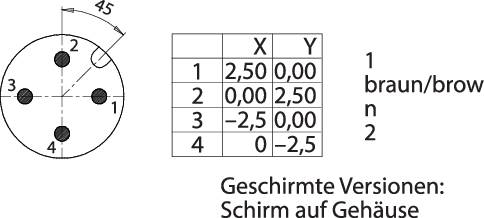

'Diagram of a round connector with four pins. Table shows X and Y coordinates of the pins. Note about shielded versions.'
Technical drawing of an electric motor with dimensions: Length 20 cm, Diameter 7 cm. Representation of side and front view.
binder 09 0431 600 04 Mini DIN connector Plug, mount Total number of pins: 4 1 pc(s)-5
Cable connection diagram of a 4-pin plug with label 'Shielded Versions: Screen to Housing'. Table shows X and Y coordinates in mm.
1/7
Image similar
Product type
Mini DIN connector
Connector type
Plug, mount
Total no. of pins
4
Connection
Soldering
SMT
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Thu 29 Oct
45 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 7.99 / piece)
€ 10.99
-27 %
€ 7.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Type

09 0431 600 04

Product type

Mini DIN connector

Connector type

Plug, mount

Total no. of pins

4

Connection

Soldering

SMT

Content

1 pc(s)

Max. temperature

+85 °C

Nominal current

4 A

Min. temperature

-40 °C

Nominal current - rounded value

4 A

Seal

Screws

Nominal voltage

250 V

Contact material

CuZn

Case material

LCP

Connection angle

180°

Manufacturer part #

09 0431 600 04

Number of pins

4

Feature

A-coded

IP67

Documents & Downloads

Datasheet

Datasheet 1664644 binder 09 0431 600 04 Mini DIN connector Plug, mount Total number of pins: 4 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1664644 binder 09 0431 600 04 Mini DIN connector Plug, mount Total number of pins: 4 1 pc(s)
