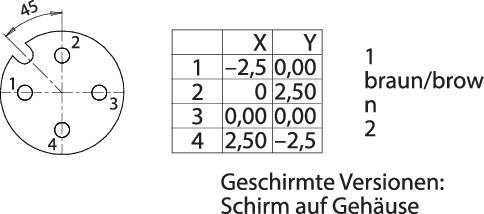

An electrical circuit diagram shows a circular socket with numbered pins and a table with 'X' and 'Y' coordinates.

1/5

Image similar

Product type

Mini DIN connector

Connector type

Socket, built-in

Total no. of pins

4

Connection

Soldering

SMT

Content

1 pc(s)

Datasheet (PDF)

Deutsch (Deutschland)

binder

Fast track dispatch on Wed, 5 Aug

21 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 5.87 / piece)

€ 9.24

-36 %

€ 5.87

plus VAT.

Report legal concerns

Technical specifications

Type: 09 0432 600 04

Product type: Mini DIN connector

Connector type: Socket, built-in

Total no. of pins: 4

Connection: Soldering
SMT

Content: 1 pc(s)

Max. temperature: +85 °C

Nominal current: 4 A

Min. temperature: -40 °C

Nominal current - rounded value: 4 A

Seal: Screws

Nominal voltage: 250 V

Contact material: CuSn

Case material: LCP

Connection angle: 180°

Manufacturer part #: 09 0432 600 04

Number of pins: 4

Feature: A-coded

: IP67
