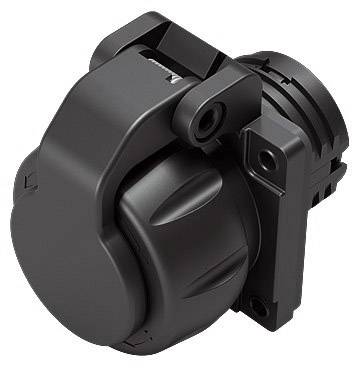

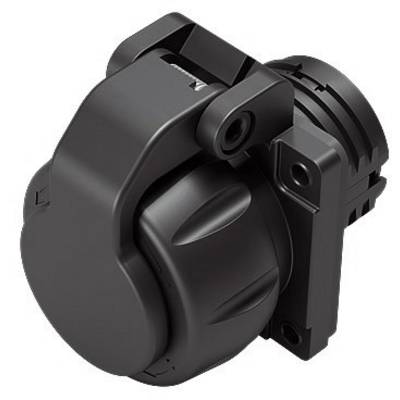

binder 09 6504 200 08 DIN connector Socket, built-in Total number of pins: 4 + 3 + PE 1 pc(s)
Product type
DIN connector
Connector type
Socket, built-in
Total no. of pins
4 + 3 + PE
Content
1 pc(s)
Nominal current - rounded value
NaN A
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 22.99 / piece)
€ 22.99
incl. VAT
Only 8 Piece(s) available
Technical specifications
- Type
09 6504 200 08
- Product type
DIN connector
- Connector type
Socket, built-in
- Total no. of pins
4 + 3 + PE
- Content
1 pc(s)
- Nominal current
3 A
25 A
- Nominal current - rounded value
NaN A
- Leading contact (PE)
Yes
- Nominal voltage
60 V
400 V
- Cable Ø (max.)
17 mm
- Cable Ø up to
7 mm
26 - 14
- Manufacturer part #
09 6504 200 08
- Cable Ø range
7 - 17 mm
- Number of pins
4
3
- max. cross section
2.50 mm²
- Min. cross section
0.14 mm²
- Cross-section range
0.14 - 2.50 mm²
Documents & Downloads
Datasheet
Datasheet 1983775 binder 09 6504 200 08 DIN connector Socket, built-in Total number of pins: 4 + 3 + PE 1 pc(s)
User & Safety Instructions
User & Safety Instructions 1983775 binder 09 6504 200 08 DIN connector Socket, built-in Total number of pins: 4 + 3 + PE 1 pc(s)
