binder 76 4331 0011 00004-0200 Mini DIN connector Sleeve plug Total number of pins: 4 1 pc(s)

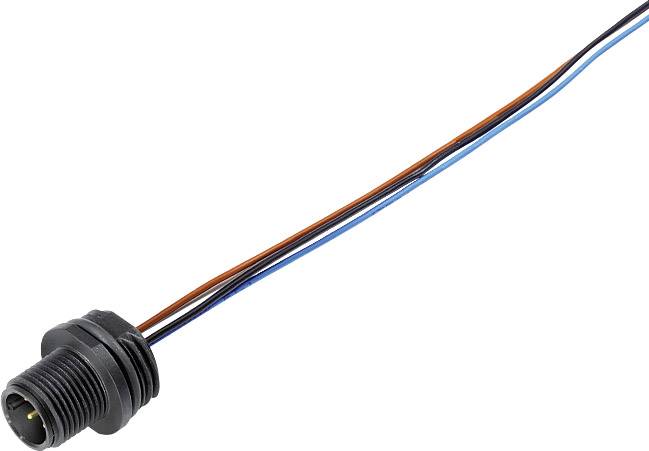

A black round plug with a thread and four coloured cables (red, blue, brown, black) protrudes to the right from the socket.
Technical drawing of a cylindrical part with threading, M12 x M6 dimensions, side view, showing precise measurements.
'Drawing shows technical component from the front and in cross-section with dimensions. Table with technical specifications on the right.'
Technical drawing of a connector with metric dimensions. Shows external and internal diameters as well as thread sizes, M12 and M6x.

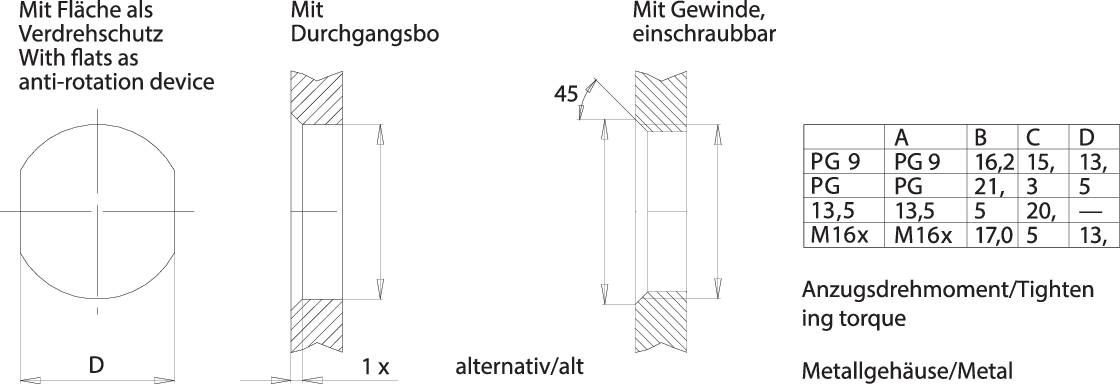

Technical Drawing: Cross-section of a Shaft Seal with Dimensions, Tolerances and a Table of Material Properties and Measurements.
1/5
Image similar
Product type
Mini DIN connector
Connector type
Sleeve plug
Total no. of pins
4
Connection
Open end cable
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Fri 6 Nov
38 Piece(s) (Only while stocks last)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 8.49 / piece)
€ 8.49
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Type

76 4331 0011 00004-0200

Product type

Mini DIN connector

Connector type

Sleeve plug

Total no. of pins

4

Connection

Open end cable

Content

1 pc(s)

Max. temperature

+85 °C

Nominal current

4 A

Min. temperature

-40 °C

Nominal current - rounded value

4 A

Seal

Screws

Nominal voltage

250 V

Contact material

CuZn

Case material

PA

24

Connection angle

180°

Manufacturer part #

76 4331 0011 00004-0200

Number of pins

4

Feature

A-coded

IP68

Documents & Downloads

Datasheet

Datasheet 1664619 binder 76 4331 0011 00004-0200 Mini DIN connector Sleeve plug Total number of pins: 4 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1664619 binder 76 4331 0011 00004-0200 Mini DIN connector Sleeve plug Total number of pins: 4 1 pc(s)
