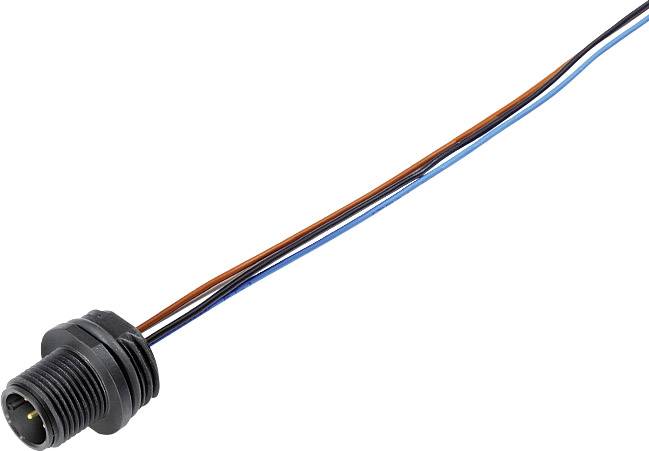

Round, black electrical connector with three long, coloured cables (blue, red, black). Suitable for electrical connections.

Image similar

Round, black electrical connector with three long, coloured cables (blue, red, black). Suitable for electrical connections.

Technical drawing of a connector with M12 and M6 threads. Markings indicate length measurements and diameters.

Technical drawing of connection elements with dimensions in millimetres. Table shows standard values and dimensions for various sizes.

Technical drawing of an M12 connector with dimensional specifications for length (2) and width (1), including thread details (M6x).

Technical Drawing: Details of a Valve Structure with Dimensional Specifications. A table with Material and Load Information is located to the right.

1/5

Image similar

Product type

Mini DIN connector

Connector type

Sleeve plug

Total no. of pins

5

Connection

Open end cable

Content

1 pc(s)

Datasheet (PDF)

Deutsch (Deutschland)

binder

Fast track dispatch on Wed, 5 Aug

32 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Number

Piece(s)

Total (€ 9.24 / piece)

€ 9.24

plus VAT.

Report legal concerns

Technical specifications

Type: Binder

Product type: Mini DIN connector

Connector type: Sleeve plug

Total no. of pins: 5

Connection: Open end cable

Content: 1 pc(s)

Max. temperature: +85 °C

Nominal current: 4 A

Min. temperature: -40 °C

Nominal current - rounded value: 4 A

Seal: Screws

Nominal voltage: 60 V

Contact material: CuZn

Case material: PA

: 24

Connection angle: 180°

Manufacturer part #: 76 4331 0011 00005-0200

Number of pins: 5

Feature: A-coded

: IP68

Documents & Downloads

Datasheet

Deutsch (Deutschland)

Datasheet 1664633 binder 76 4331 0011 00005-0200 Mini DIN connector Sleeve plug Total number of pins: 5 1 pc(s)
