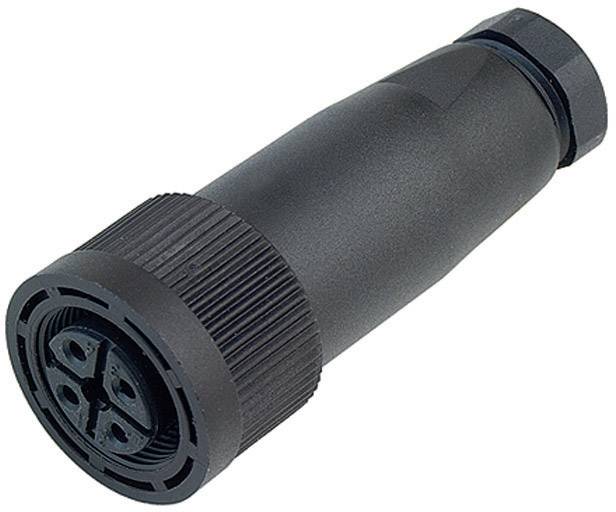

binder 99-0440-16-04 Series 713, M18 Sensor / Actuator Connector, Screw Cap, Straight
EAN:
Part number:
Item no:
Product type
Sensor/actuator connector
Connector type
Socket, straight
Connector standard
Sensor connector
Connection side A
M18 socket, straight
Connection side B
Customisable
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 26.88
3
4% = € 1.17
€ 25.71
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 26.88 / piece)
€ 26.88
plus VAT.
Technical specifications
- Type
99-0440-16-04
- Product type
Sensor/actuator connector
- Connector type
Socket, straight
- Connector standard
Sensor connector
- Connection side A
M18 socket, straight
- Connection side B
Customisable
- No. of pins
4
- Nominal voltage
250 V
- Nominal current
16 A
- Nominal current - rounded value
16 A
- Connector cross-section (max.)
1.50 mm²
- Connection
Screws
- Thread type connection side
M18
- Contact material
CuZn
IP67
- Min. temperature
-25 °C
- Max. temperature
+85 °C
- Seal type
Screw-on
- Manufacturer part #
99-0440-16-04
- Content
1 pc(s)
- Type
Cable socket, M18 x 1
- Nominal voltage (details)
250 V
- Nominal current (details)
16 A
- Thread type
M18
- Contamination level
3
- Connector cross section
1.5 mm²
- Pins
4
- Connection
Screw
- Cable diameter (details)
10 mm
- Temperature range
-25 - +85 °C
Documents & Downloads
Datasheet
Datasheet 734156 binder 99-0440-16-04 Series 713, M18 Sensor / Actuator Connector, Screw Cap, Straight
User & Safety Instructions
User & Safety Instructions 734156 binder 99-0440-16-04 Series 713, M18 Sensor / Actuator Connector, Screw Cap, Straight
