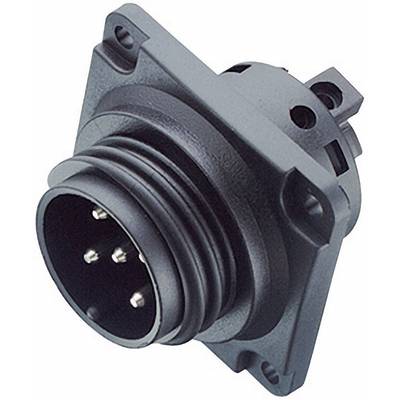

Image similar
Image similar
binder 99-0711-00-05
EAN:
Part number:
Item no:
Product type
Bullet connector
Connector type
Screw-lock latch
Total no. of pins
4 + PE
Connection
Screws
Content
1 pc(s)
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 20.16
3
5% = € 1.00
€ 19.16
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 20.16 / piece)
€ 20.16
plus VAT.
binder 99-0711-00-05
Highlights & Details
- IP65
Technical specifications
- Type
99-0711-00-05
- Product type
Bullet connector
- Connector type
Screw-lock latch
- Total no. of pins
4 + PE
- Connection
Screws
- Factory colour
Black
- Content
1 pc(s)
- Nominal current
5 A
- Nominal current - rounded value
5 A
- Leading contact (PE)
Yes
- Nominal voltage
125 V
- Contact material
CuZn
- Cable Ø (max.)
12 mm
- Cable Ø up to
10 mm
- Case material
PA (UL 94 V-0)
14
- Connection angle
180°
- Manufacturer part #
99-0711-00-05
- Cable Ø range
10 - 12 mm
- Number of pins
4
- max. cross section
2.5 mm²
- Cross-section range
2.5 mm² (max)
IP65
- Series
694
Documents & Downloads
Datasheet
Datasheet 568017 binder 99-0711-00-05
User & Safety Instructions
User & Safety Instructions 568017 binder 99-0711-00-05
Description
· Connector with screw lock
· Integrated cable strain relief
· Cable feed for cable thickness up to 16 mm
· Angled plug connector in 8 angle positions can be set
This text is machine translated.
· Integrated cable strain relief
· Cable feed for cable thickness up to 16 mm
· Angled plug connector in 8 angle positions can be set
