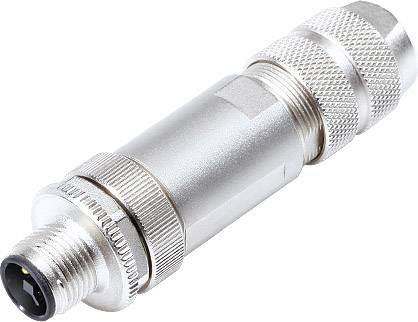

Metal plug, cylindrical in shape, with a grooved screw-lock and cable connection. Used for electrical connections.

Image similar

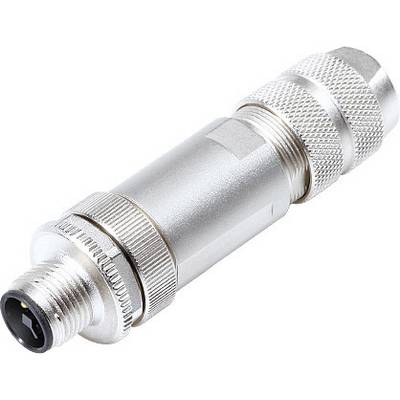

Metal plug, cylindrical in shape, with a grooved screw-lock and cable connection. Used for electrical connections.

Drawing of an M12 plug with dimensioning. Shows detailed views of plug components, with length specifications in millimetres.

A mechanical diagram shows a circle with four evenly distributed holes. Beside it, a table with X and Y coordinates.

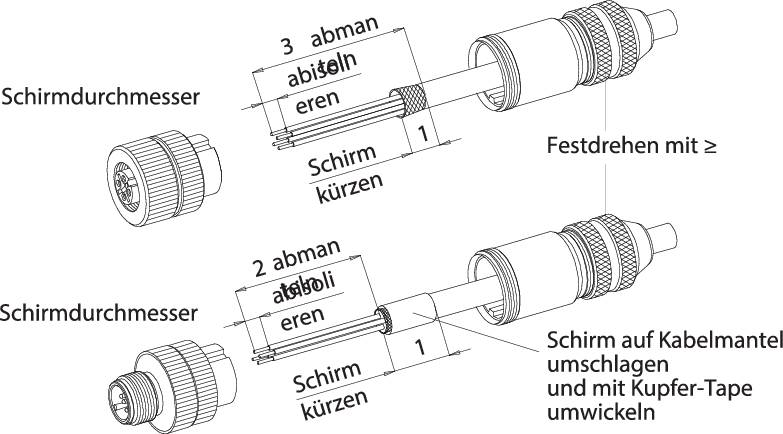

Two depicted cable connections with dimensions in millimetres show the construction and applied materials such as foam and copper tape.

Technical drawing of an M12 connector with multiple thread segments and dimensions in millimetres.

A technical diagram shows a circular arrangement with four numbered points and a corresponding table with X/Y coordinates.

A diagram shows the correct assembly of a coaxial cable with an F-connector. Markings and measurements facilitate understanding.

1/7

Image similar

Product type

Mini DIN connector

Connector type

Plug, straight

Total no. of pins

4

Connection

Screws

Content

1 pc(s)

Datasheet (PDF)

Deutsch (Deutschland)

binder

Available soon

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 24.36 / piece)

€ 24.36

plus VAT.

Report legal concerns

Technical specifications

Type: Binder

Product type: Mini DIN connector

Connector type: Plug, straight

Total no. of pins: 4

Connection: Screws

Content: 1 pc(s)

Max. temperature: +85 °C

Nominal current: 12 A

Min. temperature: -40 °C

Nominal current - rounded value: 12 A

Seal: Screws

Nominal voltage: 63 V

Contact material: CuZn

Case material: PA

: 16

Connection angle: 180°

Manufacturer part #: 99 1631 814 04

Number of pins: 4

Min. cross section: 1.50 mm²

Cross-section range: 1.50 mm² (min)

Feature: T-coded
shielding option
