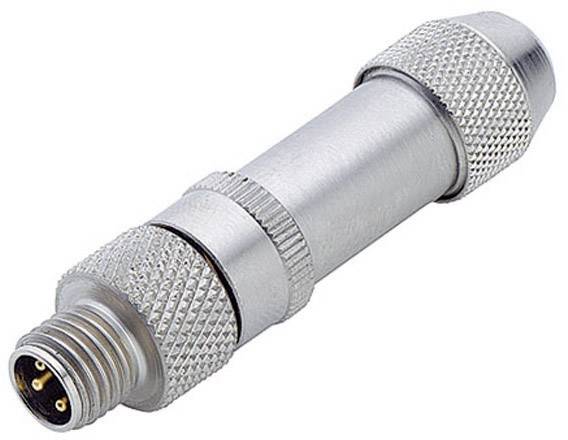

A silver metal connector with a knurled grip and multiple connection pins, commonly used in electronic devices.

Technical drawing of a plug with dimensions: Total length approx. 50 mm, including threaded screw and cable attachment.

1/2

Product type

Sensor/actuator connector

Connector type

Plug, straight

Connector standard

Sensor connector

Connection side A

M8 plug, straight

Connection side B

Customisable

Datasheet (PDF)

Fast track dispatch on Wed, 5 Aug

145 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 21.84 / piece)

€ 21.84

plus VAT.

Report legal concerns

Technical specifications

Type: 99-3361-00-03

Product type: Sensor/actuator connector

Connector type: Plug, straight

Connector standard: Sensor connector

Connection side A: M8 plug, straight

Connection side B: Customisable

No. of pins: 3

Nominal voltage: 60 V

Nominal current: 4 A

Nominal current - rounded value: 4 A

Connector cross-section (max.): 0.25 mm²

Connection: Soldering

Thread type connection side: M8

Contact material: Gold

: IP67

Min. temperature: -40 °C

Max. temperature: +85 °C

Seal type: Screw-on

Manufacturer part #: 99-3361-00-03

Content: 1 pc(s)

Type: Cable connector, M8 x 1, can be shielded

Insulation resistance: > 10¹⁰ Ω

Nominal voltage (details): 60 V

Nominal current (details): 4 A

Thread type: M8

Contamination level: 3

Connector cross section: 0.25 mm²

Pins: 3

Connection: Soldering

Cable diameter (details): 3.5 mm

Temperature range: -40 - +85 °C

Case material: PA

Variants(All information is without VAT, plus shipping costs)

Connection side B

Type

Nominal current - rounded value

Connection side A

Connector type

No. of pins

Nominal voltage

binder 99-3361-00-03 Series 768, Sensor / Actuator Plug Connector M8, Screw Closure, Straight

Item no:746535

This article

Customisable

99-3361-00-03

4 A

M8 plug, straight

Plug, straight

60 V

binder 99-3376-00-04 Series 768, Sensor / Actuator Plug Connector M8, Screw Closure, Straight

Item no:156146

Customisable

Binder

4 A

M8 socket, straight

Socket, straight

30 V

binder 99-3378-00-04 Series 768, Sensor / Actuator Plug Connector M8, Screw Closure, Angled

Item no:156147

Customisable

99-3378-00-04

4 A

M8 socket, right angle

Socket, right angle

30 V

binder 99-3376-00-04 Sensor/actuator connector M8 Socket, straight No. of pins (RJ): 4 20 pc(s)

Item no:1656975

Customisable

99-3376-00-04

4 A

M8 socket, straight

Socket, straight

30 V

binder 99-3378-00-04 Sensor/actuator connector M8 Socket, right angle No. of pins (RJ): 4 20 pc(s)

Item no:1656976

Customisable

99-3378-00-04

4 A

M8 socket, right angle

Socket, right angle

30 V

binder 99-3376-100-04 Sensor/actuator connector M8 Socket, straight No. of pins (RJ): 4 20 pc(s)

Item no:1656987

Customisable

99-3376-100-04

4 A

M8 socket, straight

Socket, straight

30 V

binder 08-2441-000-000 Sensor/actuator built-in connector M8 Protective cap 20 pc(s)

Item no:1657021

08-2441-000-000

Protective cap

binder 09-3390-80-04 Sensor/actuator built-in connector M8 Socket, straight No. of pins (RJ): 4 20 pc(s)

Item no:1657053

Customisable

09-3390-80-04

4 A

M8 socket, straight

Socket, straight

60 V

binder 99-3361-00-03-20 Sensor/actuator connector M8 Plug, straight No. of pins (RJ): 3 1 pc(s)

Item no:3216541

Customisable

99-3361-00-03-20

4 A

M8 plug, straight

Plug, straight

60 V

binder 99-3360-00-03-20 Sensor/actuator connector M8 Socket, straight No. of pins (RJ): 3 1 pc(s)

Item no:3216542

Customisable

99-3360-00-03-20

4 A

M8 socket, straight

Socket, straight

60 V

Documents & Downloads

Datasheet

Datasheet 746535 binder 99-3361-00-03 Series 768, Sensor / Actuator Plug Connector M8, Screw Closure, Straight

User & Safety Instructions

User & Safety Instructions 746535 binder 99-3361-00-03 Series 768, Sensor / Actuator Plug Connector M8, Screw Closure, Straight

Description

An extensive range of freely configurable plug connectors is available for the quick assembly of often different lengths of cables, e.g. on site. M8 connectors are supplied with the classic screw or solder connection.
