binder 99-3379-00-03 Series 768, Sensor / Actuator Plug Connector M8, Screw Closure, Straight

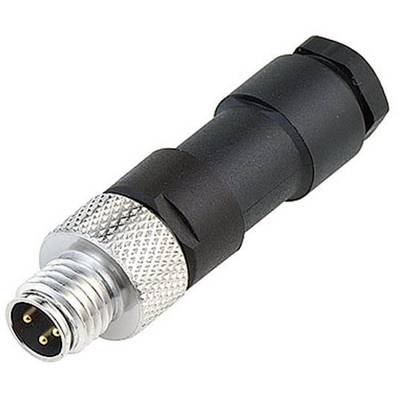

Black connector with metal thread, four-pole. Commonly used in industrial applications for secure cable connection.
Technical drawing of a threaded cylinder with dimensions in millimetres. Shows screw diameter, length, and thread type.
1/2
Product type
Sensor/actuator connector
Connector type
Plug, straight
Connector standard
Sensor connector
Connection side A
M8 plug, straight
Connection side B
Customisable
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Wed 4 Nov
65 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 13.99 / piece)
€ 13.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Packaging type

Piece

Type

99-3379-00-03

Product type

Sensor/actuator connector

Connector type

Plug, straight

Connector standard

Sensor connector

Connection side A

M8 plug, straight

Connection side B

Customisable

No. of pins

3

Nominal voltage

60 V

Nominal current

4 A

Nominal current - rounded value

4 A

Connector cross-section (max.)

0.25 mm²

Connection

Soldering

Thread type connection side

M8

Thread type (wiring and installation)

M8

Contact material

Gold

IP67

Min. temperature

-40 °C

Max. temperature

+85 °C

Seal type

Screw-on

Manufacturer part #

99-3379-00-03

Content

1 pc(s)

Type

Cable connector, M8 x 1

Insulation resistance


> 1010 Ω

Nominal voltage (details)

60 V

Nominal current (details)

4 A

Thread type

M8

Contamination level

3

Connector cross section

0.25 mm²

Pins

3

Connection

Soldering

Cable diameter (details)

3.5 mm

Temperature range

-40 - +85 °C

Case material

PA

Documents & Downloads

Datasheet

Datasheet 745487 binder 99-3379-00-03 Series 768, Sensor / Actuator Plug Connector M8, Screw Closure, Straight

User & Safety Instructions

User & Safety Instructions 745487 binder 99-3379-00-03 Series 768, Sensor / Actuator Plug Connector M8, Screw Closure, Straight

Description

An extensive range of freely configurable plug connectors is available for the quick assembly of often different lengths of cables, e.g. on site. M8 connectors are supplied with the classic screw or solder connection.
