binder 99 4221 300 04 Micro DIN connector Plug, straight Total number of pins: 3 + PE 1 pc(s)

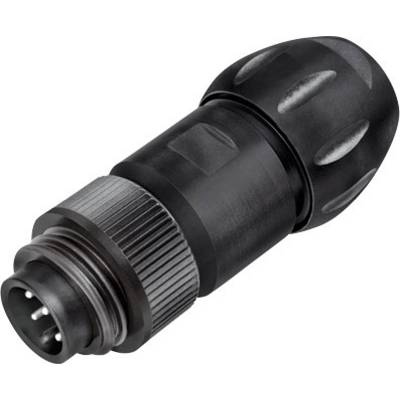

A black, cylindrical plug with multiple metal elements. Suitable for industrial or technical applications.
Technical drawing of an electrical connector in side view with labels and dimension lines indicating the length.
Technical drawing of a circle with diameter 'Ø32', horizontal arrow lines with length markings '2' and '3'.

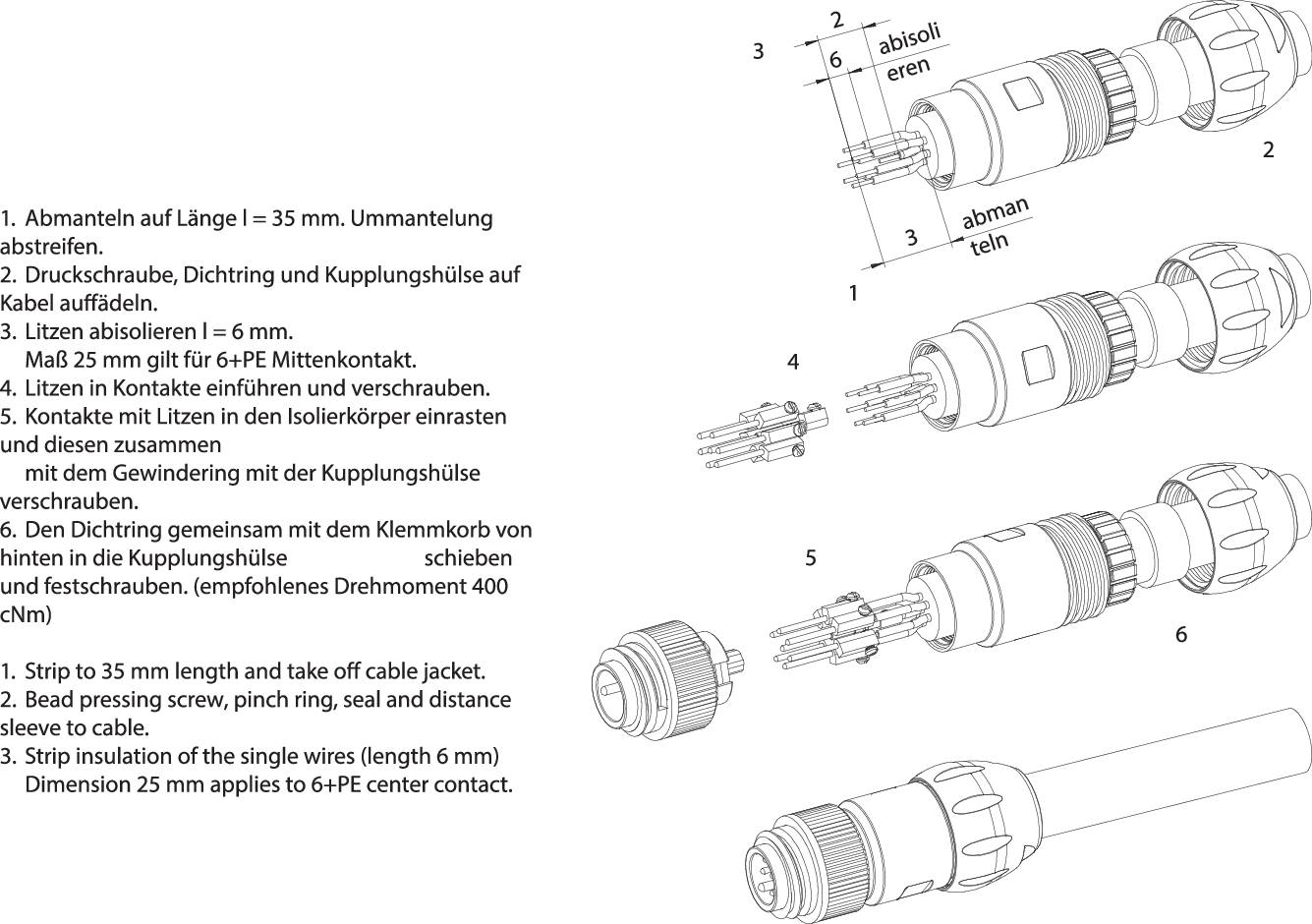

Technical drawing of electrical connectors with labels and dimensions. Shows various views and details of the components.

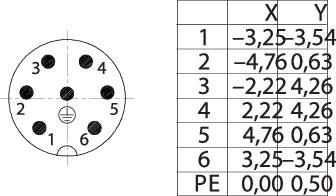

Technical drawing of a circular connector with six numbered socket positions and a table with X/Y coordinates for each position.
Technical drawing of a cylindrical component with dimensions and markings. Shows a side view with detailed annotations.
Technical Drawing: Circle with diameter 32, centred within a frame, attached lines with markings 2 and 3.
'Technical drawing of a cable connection. Detailed view of cable connectors and their components in an exploded view.'
1/8
Image similar
Product type
Micro DIN connector
Connector type
Plug, straight
Total no. of pins
3 + PE
Connection
Screws
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Fast track dispatch on Fri 6 Nov
65 Piece(s)
Sales and shipping:
Conrad ElectronicTerms & Conditions
Number
Total (€ 19.99 / piece)
€ 19.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Type

Binder

Product type

Micro DIN connector

Connector type

Plug, straight

Total no. of pins

3 + PE

Connection

Screws

Factory colour

Black

Content

1 pc(s)

Max. temperature

+100 °C

Nominal current

16 A

Min. temperature

-40 °C

Nominal current - rounded value

16 A

Leading contact (PE)

Yes

Nominal voltage

400 V

Contact material

Brass silver plated

Cable Ø (max.)

17 mm

Cable Ø up to

7 mm

Case material

PBT

14

Connection angle

180°

Manufacturer part #

99 4221 300 04

Cable Ø range

7 - 17 mm

Number of pins

3

max. cross section

2.50 mm²

Cross-section range

2.50 mm² (max)

IP67

Documents & Downloads

Datasheet

Datasheet 1665965 binder 99 4221 300 04 Micro DIN connector Plug, straight Total number of pins: 3 + PE 1 pc(s)

User & Safety Instructions

User & Safety Instructions 1665965 binder 99 4221 300 04 Micro DIN connector Plug, straight Total number of pins: 3 + PE 1 pc(s)
