binder 99 6517 000 12 Micro DIN connector Plug, straight Total number of pins: 12 1 pc(s)

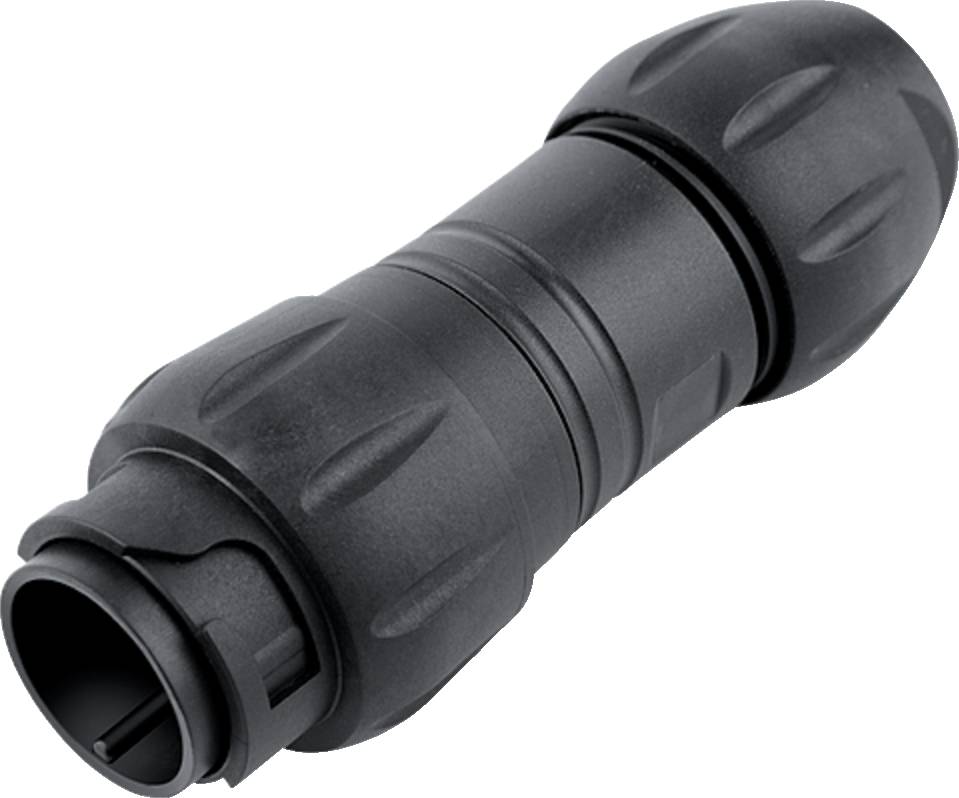

A black, cylindrical cable connector with a ribbed surface. Suitable for connecting electrical cables.

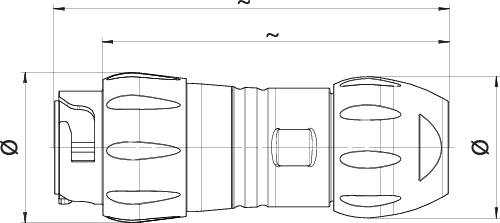

Technical drawing of a mechanical component with dimensional specifications, showing detailed profile view and measurements.

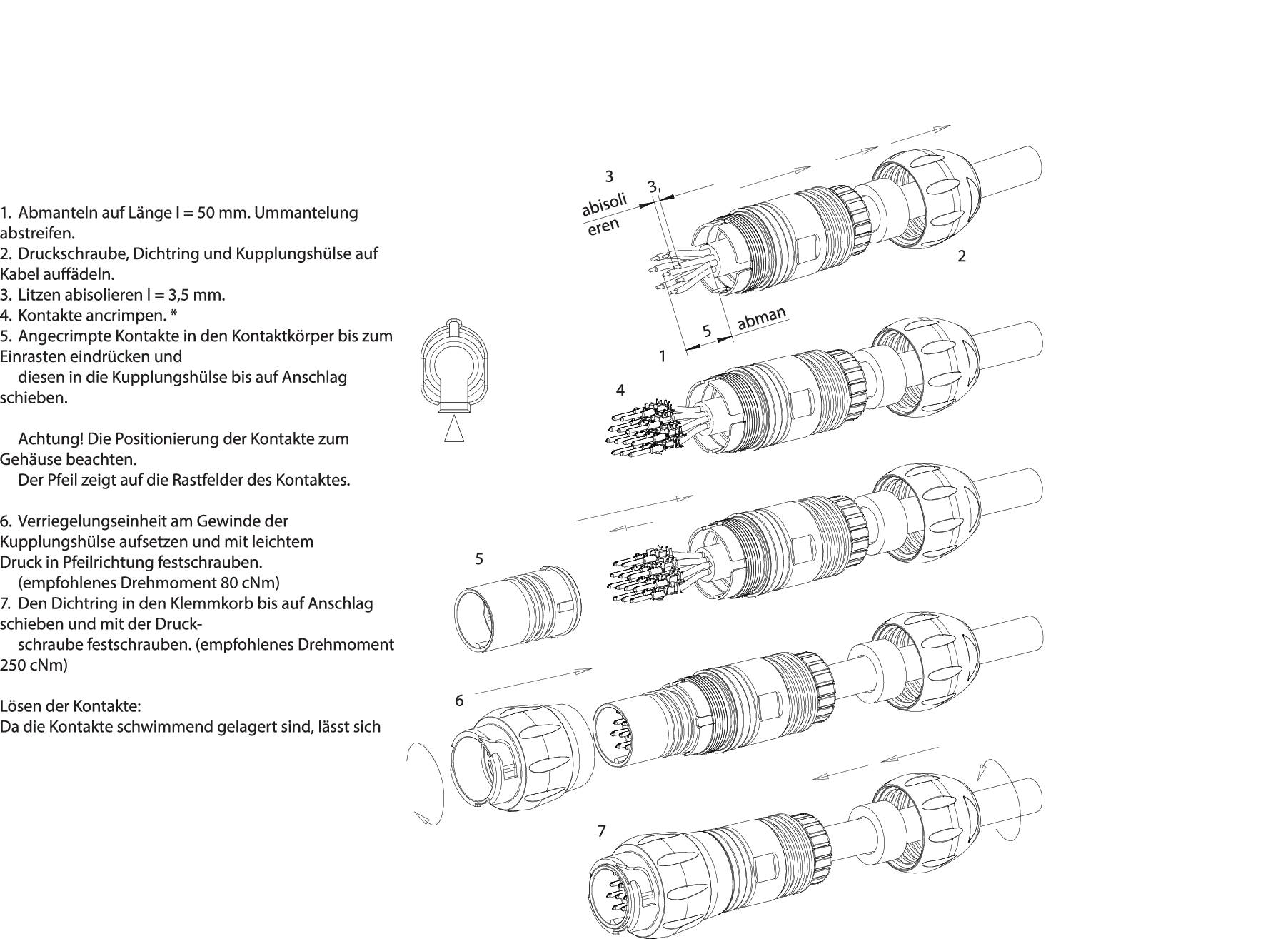

Assembly Instructions for Electrical Connectors. Shows seven steps from stripping to completion of the connection. Diagrams and labels explain the parts and steps.

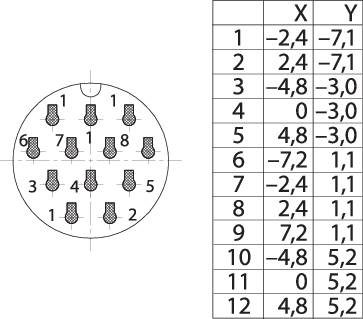

'Circular Pin Layout: 12 contacts arranged in a circular formation, with table on the right. X and Y coordinates listed for each contact.'
Technical drawing of a cylindrical component with multiple grooves and dimensions, shown in a side view.
Circular diagram with numbers from 1 to 12 in a clockwise direction, showing connector positions. Table adjacent lists X,Y coordinates.
'Exploded diagram of a connector with numbered components. Shows the individual parts and their arrangement for assembly.'
1/7
Image similar
Product type
Micro DIN connector
Connector type
Plug, straight
Total no. of pins
12
Connection
Crimp
Content
1 pc(s)
Datasheet (PDF)
EAN:
Part number:
Item no:
Unavailable
Sales and shipping:
Conrad ElectronicTerms & Conditions
Total (€ 27.99 / piece)
€ 27.99
prav.tax.untaxed incl. VAT
plus € 19.99
prav.priceAvailability.ecoparticipation.cost ...
prav.priceAvailability.privatecopyingfee.cost ...
without further shipping costs
14-day return policy included
Report legal concerns

Technical specifications

Type

99 6517 000 12

Product type

Micro DIN connector

Connector type

Plug, straight

Total no. of pins

12

Connection

Crimp

Factory colour

Black

Content

1 pc(s)

Max. temperature

+100 °C

Nominal current

5 A

Min. temperature

-40 °C

Nominal current - rounded value

5 A

Leading contact (PE)

No

Nominal voltage

250 V

Cable Ø (max.)

13 mm

Cable Ø up to

7 mm

Case material

PA

Connection angle

180°

Manufacturer part #

99 6517 000 12

Cable Ø range

7 - 13 mm

Number of pins

12

IP68

IP69K
