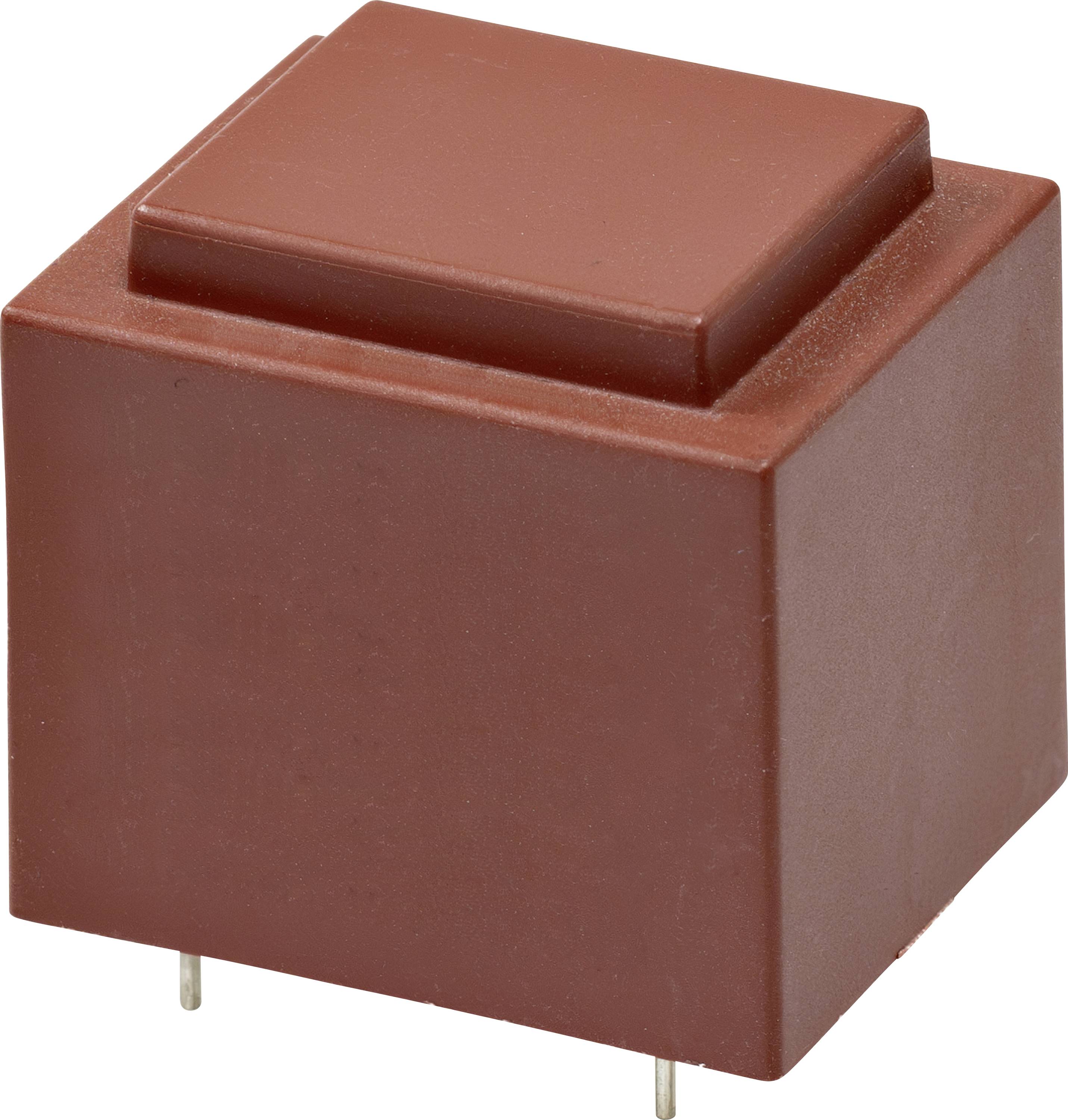

BLOCK VB 1,5/1/9 PCB mount transformer 1 x 230 V 1 x 9 V AC 1.50 VA 166 mA
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 13.99 / piece)
€ 13.99
incl. VAT
14-day return policy included
Highlights & Details
BLOCK VB 1,5/1/9 PCB mount transformer 1 x 230 V 1 x 9 V AC 1.50 VA 166 mA
- Minimum size in case of high power
- Short-circuit resistant
Technical specifications
- Product type
PCB mount transformer
- Output voltage
9 V AC
- Output voltage (number x voltage)
1 x 9 V AC
- Output current
166 mA
- No. of inputs
1 x
- No. of outputs
1 x
- Input voltage
230 V
- Input voltage (number x voltage)
1 x 230 V
1.50 VA
- Height
23.8 mm
- Type
VB 1,5/1/9
- Connection
Soldering
- Frequency
50 - 60 Hz
- Weight
0.08 kg
- Content
1 pc(s)
- Insulation class
VDE=B, UL=105
- Test voltage
5000 V
- Test mark
C-UL-US, ENEC 10 (VDE)
- RoHS-compliant
Yes
- Max. ambient temperature
+70 °C
- Efficiency
57 %
1.5 VA
- Output voltage
9 V
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 710468 BLOCK VB 1,5/1/9 PCB mount transformer 1 x 230 V 1 x 9 V AC 1.50 VA 166 mA
User & Safety Instructions
User & Safety Instructions 710468 BLOCK VB 1,5/1/9 PCB mount transformer 1 x 230 V 1 x 9 V AC 1.50 VA 166 mA
Conformity certificate
Conformity certificate 710468 BLOCK VB 1,5/1/9 PCB mount transformer 1 x 230 V 1 x 9 V AC 1.50 VA 166 mA
Description
VB Single voltage
Primary connection assignment: pin 1 to 2
Pin assignment Secondary: Pen 4-3
Primary connection assignment: pin 1 to 2
Pin assignment Secondary: Pen 4-3
Hints
Dimensional drawing see technical data sheet.
