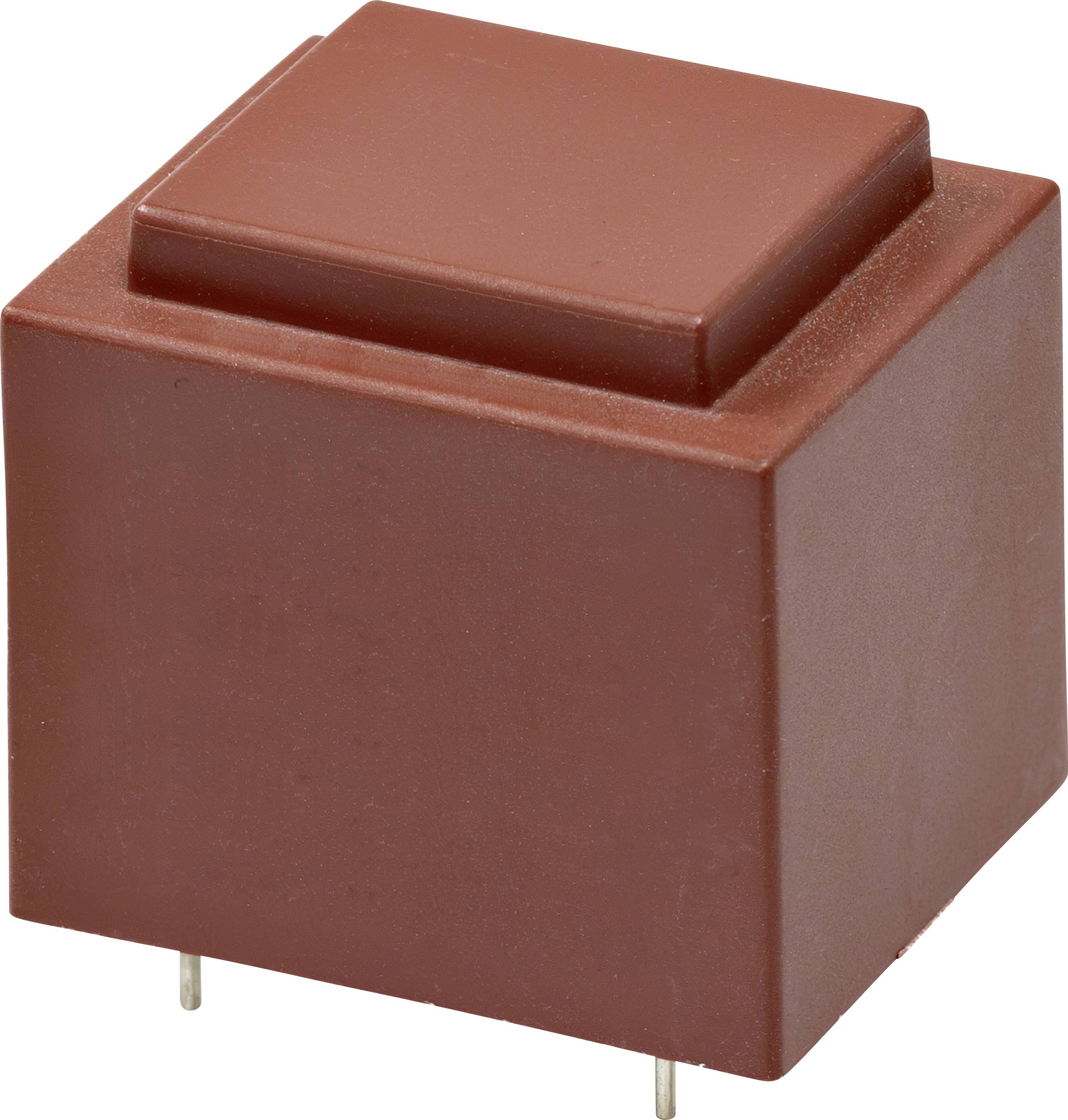

BLOCK VB 2,0/1/18 PCB mount transformer 1 x 230 V 1 x 18 V AC 2 VA 111 mA
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 8.49 / piece)
€ 8.49
incl. VAT
14-day return policy included
Highlights & Details
BLOCK VB 2,0/1/18 PCB mount transformer 1 x 230 V 1 x 18 V AC 2 VA 111 mA
- Minimum size in case of high power
- Short-circuit resistant
Our service for you
Technical specifications
- Product type
PCB mount transformer
- Output voltage
18 V AC
- Output voltage (number x voltage)
1 x 18 V AC
- Output current
111 mA
- No. of inputs
1 x
- No. of outputs
1 x
- Input voltage
230 V
- Input voltage (number x voltage)
1 x 230 V
2 VA
- Height
26.8 mm
- Type
VB 2,0/1/18
- Connection
Soldering
- Frequency
50 - 60 Hz
- Weight
0.10 kg
- Content
1 pc(s)
- Insulation class
VDE=B, UL=105
- Test voltage
5000 V
- Test mark
C-UL-US, ENEC 10 (VDE)
- RoHS-compliant
Yes
- Max. ambient temperature
+70 °C
- Efficiency
52 %
2 VA
- Output voltage
18 V/
Documents & Downloads
Datasheet
Datasheet 710576 BLOCK VB 2,0/1/18 PCB mount transformer 1 x 230 V 1 x 18 V AC 2 VA 111 mA
User & Safety Instructions
User & Safety Instructions 710576 BLOCK VB 2,0/1/18 PCB mount transformer 1 x 230 V 1 x 18 V AC 2 VA 111 mA
Conformity certificate
Conformity certificate 710576 BLOCK VB 2,0/1/18 PCB mount transformer 1 x 230 V 1 x 18 V AC 2 VA 111 mA
Description
VB Single Voltage Primary terminal assignment
: Pen 1 – 2 Secondary terminal assignment: pen 4 - 3
: Pen 1 – 2 Secondary terminal assignment: pen 4 - 3
Hints
Dimensional drawing see technical data sheet.
