Name: Bosch Professional GCL 2-50 C Cross line and plumb dot laser Self-levelling Range (max.): 20 m
Brand: Bosch Professional
SKU: 2757402

Laser spirit level with rotating laser, tripod, batteries and protective case. Shows diagonally aligned laser lines.

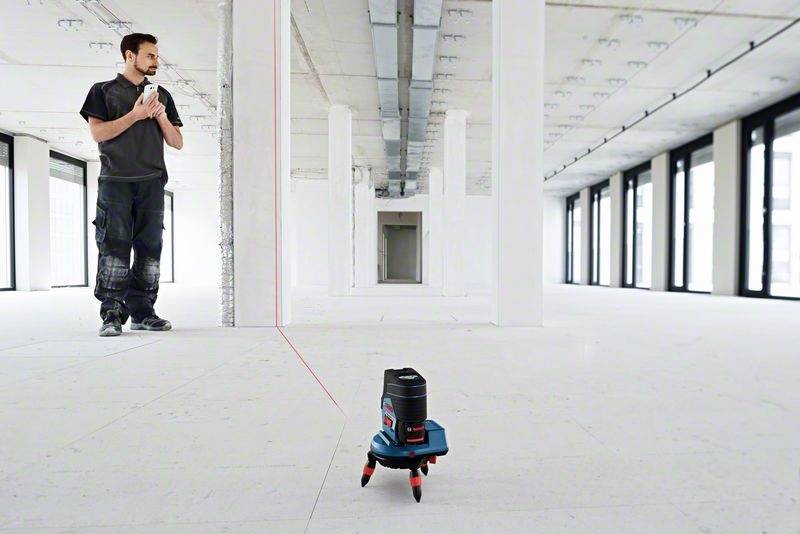

A person in an empty room is using a laser levelling device for precise measurement of lines and points.

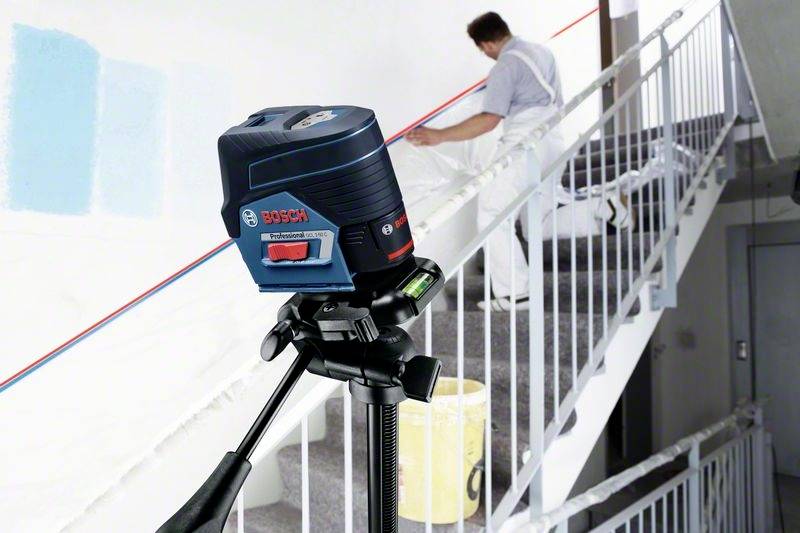

A tradesman is painting a staircase white. In the foreground, a Bosch laser levelling device is positioned on a tripod for precise alignment.

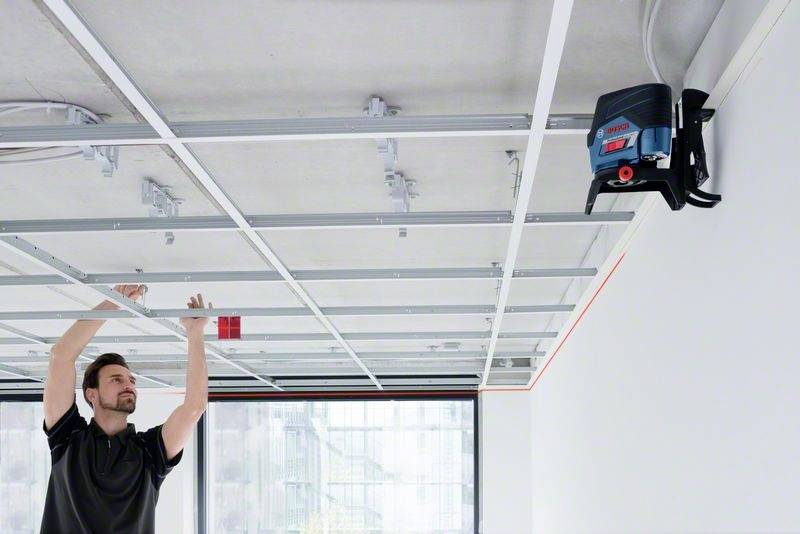

A man is securing a ceiling panel in a metal frame. In the background, a rotating tool is mounted on the ceiling.

'Bosch Professional GLM 30 C' Laser Distance Meter with dimensions 136 mm x 55 mm x 122 mm in Black and Blue.

1/5

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Kombi laser GCL 2-50 C

Bluetooth® connection in combination with Leveling Remote APP to remotely position the tool over a smartphoneMore flexibility through Dual Power source operation with 12 V Li-ion batteries or standard alkaline batteriesPrecise alignment of laser lines around centered solder points around the manually operated RM 2 or the motor-driven RM 3

Technical specifications

Laser diode 635 - 650 nmOperating temperature -10 to + 50 °C.Storage temperature -20 to 70 °C.Working range of laser point, max.: 10 m (above), 10 m (below)Self-leveling range ± 4°Power supply: 12 V lithium ion or 4 x 1.5 V LR6 battery (AA)Operating time: 18 hours (Li-Ion) and 10 hours (4 x AA) in crossline and point mode, 25 hours (Li Ion) and 16 hrs (4 x AA) in crossline operation, 35 hrs. (Li Ion) and 28 hrs (4 x AA) in line operation, 60 hrs. (Li Ion) and 32 hours (4 x AA) in point operationTripod socket 1/4"Colour of laser line: RedColor of the solder points: RedSolder point accuracy: ± 0.7 mm/m* (* plus insert-dependent deviation)Compatible laser receiver LR 6+7

Product type: Cross line and plumb dot laser

Features: Self-levelling

Range (max.): 20 m

Accuracy (+/-): 0.3 mm/m

Auto-adjustment range (+/-): 4°

Laser category: 2

Visible beam length: 650 nm

Tripod thread mount: 1/4"

Length: 122 mm

Width: 55 mm

Height: 136 mm

Dim: (L x W x H) 122 x 55 x 136 mm

Weight: 600 g

: Manufacturer's standards (no certificate)

Type: GCL 2-50 C

: IP54

Accuracy ±: 0.3 mm

Type: GCL 2-50 C

Max. reading range: 50 m

Min. reading range: 20 m

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2757402 Bosch Professional GCL 2-50 C Cross line and plumb dot laser Self-levelling Range (max.): 20 m

Warranty Terms

Warranty Terms 2757402 Bosch Professional GCL 2-50 C Cross line and plumb dot laser Self-levelling Range (max.): 20 m

Description

The combination laser GCL 2-50 C Professional offers numerous intelligent functions for maximum efficiency. Via a Bluetooth® connection, it is possible to align the tool remotely via a smartphone app, while Dual Power source technology allows operation with both 12 V Li-ion and standard alkaline batteries. For precise positioning around the centered solder points, the optional RM 3 Professional offers a motor-driven control, while the RM 2 Professional allows manual adjustments to be made.The device is designed for horizontal and vertical alignment with a long overshoot of almost 360° and is suitable for projects such as dry-work and interior finishing.The horizontal and vertical laser lines and the two centered solder points of the GCL 2-50 C Professional offer an optimum view of up to 20 m distance without receiver and up to 50 m distance with receiver.

This text is machine translated.

Features

Dual Power Source: operation via 12 V Li-ion battery or alkaline batteries possible
Bluetooth ®
Horizontal and vertical laser lines
Two-centric solder points
Pendulum locking provides for a safe transportation
Dust and splash-water protection according to IP54
100% compatible with all 10.8 & 12 V batteries and chargers of the Bosch Professional series.

Scope of delivery

Kombi laser GCL 2-50 CAA1 alkaline battery adapter 1 608 M00 C1BStand BT 150 Professional 0 601 096 B00Target plateProtective caseRM 2 Professional 0 601 092 700 rotating bracket4 x 1.5 V-LR6 batteries (AA)
