Bosch Professional GLL 3-50 Multi-line laser Self-levelling Range (max.): 10 m
EAN:
Part number:
Item no:
Highlights & Details

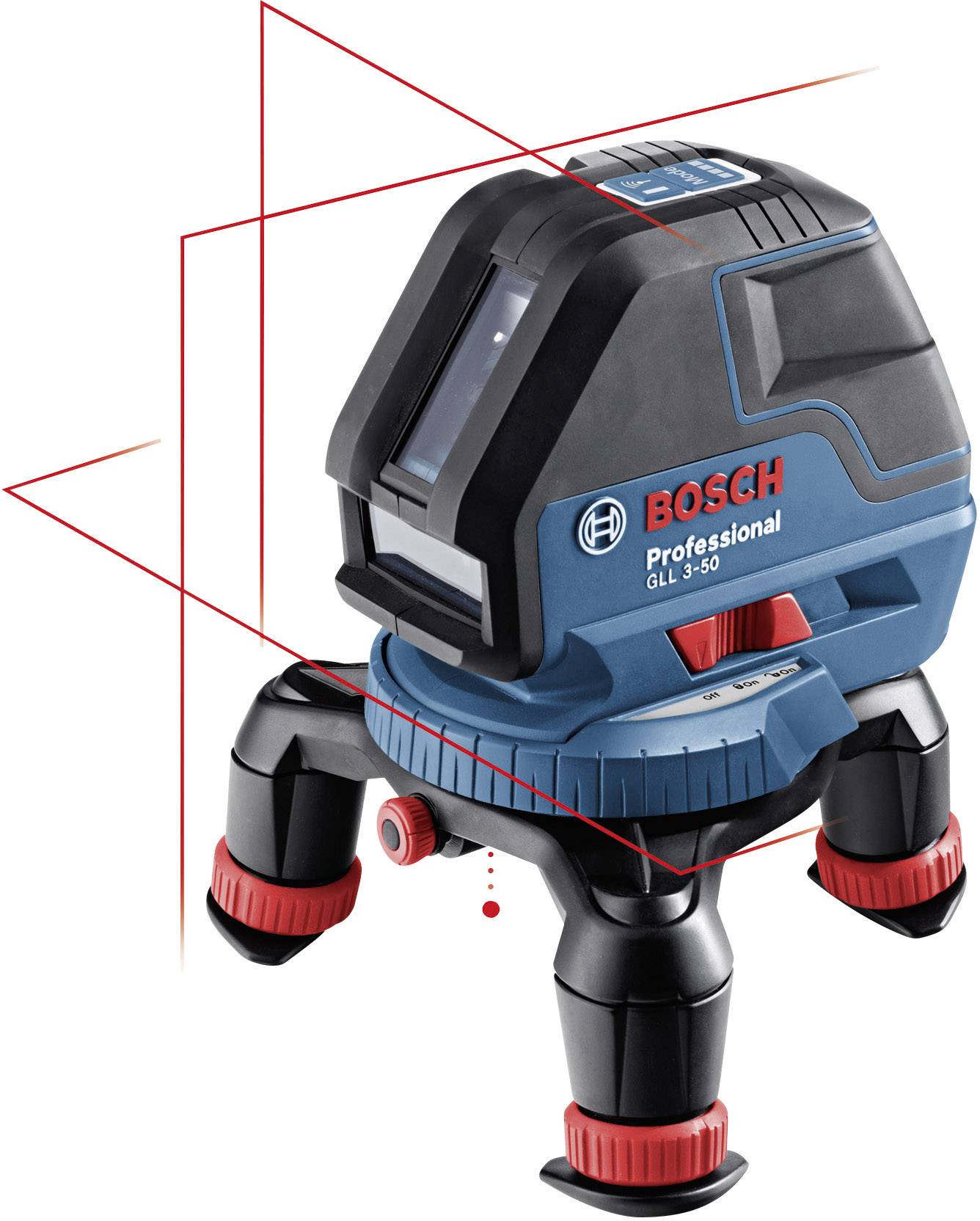

Line laser GLL of 3-50 PROF.
- Two vertical and a horizontal laser
- levelling accuracy laser ± 0.3 mm/m
- IP54
- Measurement range 50 m
Technical specifications
- Working range: (with/without receiver) 10 m/50 m
- Levelling accuracy laser/solder: ± 0.3 mm/m/± 0.5 mm/m
- aperture angle horizontal/vertical: 120/130°
- Product type
Multi-line laser
- Features
Self-levelling
- Range (max.)
10 m
- Accuracy (+/-)
0.3 mm/m
- Auto-adjustment range (+/-)
4°
- Laser category
2
- Visible beam length
635 nm
- Operating time (battery-powered)
18 h
- Tripod thread mount
1/4"
5/8"
- Length
146 mm
- Width
83 mm
- Height
117 mm
- Dim
(L x W x H) 146 x 83 x 117 mm
- Weight
940 g
Manufacturer's standards (no certificate)
- Type (Bosch)
Bosch Professional (blue)
- Type
GLL 3-50
- Levelling time
4 s
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 657962 Bosch Professional GLL 3-50 Multi-line laser Self-levelling Range (max.): 10 m
User & Safety Instructions 657962 Bosch Professional GLL 3-50 Multi-line laser Self-levelling Range (max.): 10 m
User & Safety Instructions 657962 Bosch Professional GLL 3-50 Multi-line laser Self-levelling Range (max.): 10 m
Warranty Terms
Warranty Terms 657962 Bosch Professional GLL 3-50 Multi-line laser Self-levelling Range (max.): 10 m
Description
A versatile range of applications due to complete solution of multi line laser and mini tripod
Ruggedness for professional deployment and other outstanding technical specifications
Compact shape and easy operation
Rotatable mini tripod simplifies stepless fine positioning of the laser lines
Height-adjustable telescopic feet enable ergonomic operation
Levelling set together with an L-BOXX for systematic storage and simplified transport
Ruggedness for professional deployment and other outstanding technical specifications
Compact shape and easy operation
Rotatable mini tripod simplifies stepless fine positioning of the laser lines
Height-adjustable telescopic feet enable ergonomic operation
Levelling set together with an L-BOXX for systematic storage and simplified transport
Features
- Versatile application possibilities for all held Montferrand-builders and installers with two vertical and horizontal laser line and a solder
- Extended work area by the activation of the pulse-mode and use with the LASER-RECIEVER LR2 PROFESSIONAL
- High flexibility thanks to the new removable mini stand with height-adjustable telescopic legs
- Simple User navigation through the self-explanatory keyboard
- Safe handling thanks to the anti-slip surface
- High precision with long life span by the automatic transport safety
- safe use on the construction site thanks to the dust and splash-protection IP54.
Scope of delivery
- Mini Tripod
- 4 x 1.5 V LR6 (AA) batteries
- Laser target plate
- Protective pouch
- L-Boxx inlay
- L-Boxx.
Hints
