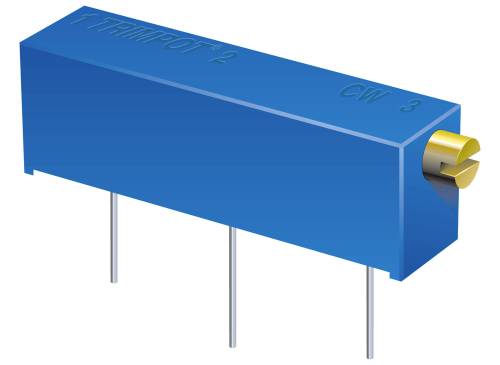

Bourns 3006P-1-201LF Cermet trimmer Sealed linear 0.75 W 200 Ω 5400 ° 5400 ° 1 pc(s)
Product type
Cermet trimmer
Resistance
200 Ω
Resistance characteristic
linear
Power rating
0.75 W
Mechanical angle
5400 °
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 1.20 / piece)
€ 1.20
incl. VAT
14-day return policy included
Technical specifications
- Product type
Cermet trimmer
- Potentiometer features
Sealed
- Resistance
200 Ω
- Resistance characteristic
linear
- Power rating
0.75 W
- Electrical angle
5400°
- Mechanical angle
5400°
- Connection
Solder pins
- Type
THT
- Operation type
side
- Min. temperature
-55 °C
- Max. temperature
125 °C
- Temperature coefficient
100 ppm/K
- Tolerance ±
10 %
- Width
4.83 mm
- Height
6.35 mm
- CS
5.08 mm
12.7 mm

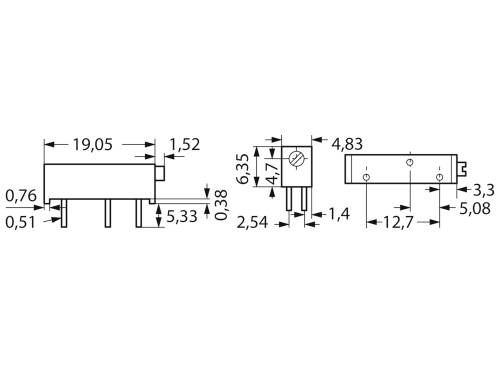

- Dim
(L x W x H) 19 x 4.83 x 6.35 mm
- Content
1 pc(s)
- Type
3006P-1-201LF
- RoHS-compliant
Yes
- Length
19 mm
- No. of rotations
15
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2996100 Bourns 3006P-1-201LF Cermet trimmer Sealed linear 0.75 W 200 Ω 5400 ° 5400 ° 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2996100 Bourns 3006P-1-201LF Cermet trimmer Sealed linear 0.75 W 200 Ω 5400 ° 5400 ° 1 pc(s)
Description
Trim Potentiometer, 3006P-1-201LF, Bourns Features * 3/4 " Rectangular / Multiturn / Cermet / Industrial / Sealed * Low PCB profile - only 1/4 " high * Transparent housing available, can be visually adjusted without connection and instrumentation (only "P" version)
