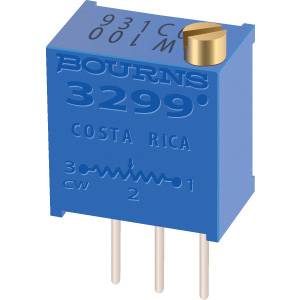

Bourns 3299W-1-203LF Cermet trimmer 25-pos linear 0.5 W 20 kΩ 9 ° 1 pc(s)
Product type
Cermet trimmer
Resistance
20 kΩ
Resistance characteristic
linear
Power rating
0.5 W
Connection
Solder pins
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 3.252 / piece)
€ 3.25
incl. VAT
14-day return policy included
Technical specifications
- Product type
Cermet trimmer
- Potentiometer features
25-pos
- Resistance
20 kΩ
- Resistance characteristic
linear
- Power rating
0.5 W
- Cut-off voltage
300 V
- Electrical angle
9°
- Connection
Solder pins
- Type
THT
- Operation type
top
- Min. temperature
-55 °C
- Max. temperature
125 °C
- Temperature coefficient
100 ppm/K
- Tolerance ±
10 %

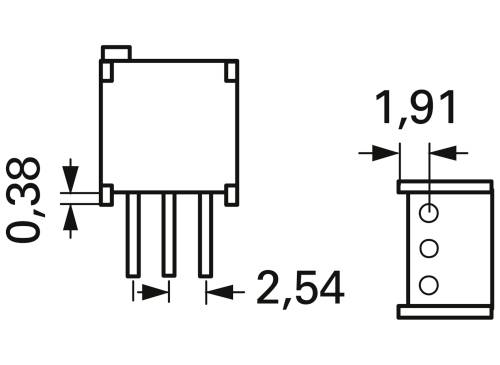

- Width
9.53 mm
- Height
6.1 mm
- CS
2.54 mm
- Dim
(L x W x H) 10.03 x 9.53 x 6.1 mm
- Content
1 pc(s)
- Type
3299W-1-203LF
- RoHS-compliant
Yes
- Length
10.03 mm
- No. of rotations
25
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2996239 Bourns 3299W-1-203LF Cermet trimmer 25-pos linear 0.5 W 20 kΩ 9 ° 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2996239 Bourns 3299W-1-203LF Cermet trimmer 25-pos linear 0.5 W 20 kΩ 9 ° 1 pc(s)
Description
Cermet trimmer type Bourns 3299. For 25 revolutions; Design: Vertical, activation from above, sealed industrial design, rating: 0.5 W at +70 °C (0 at +125 °C), operating voltage: Max. 300 V, temperature range: 55 to +125 °C, tolerance: ±10 %, temperature coefficient: ±100, dimensions: 9.5 x 6.0 x 10.0 mm. With contact placement in a series of type 3299W. Type 20K
This text is machine translated.
This text is machine translated.
