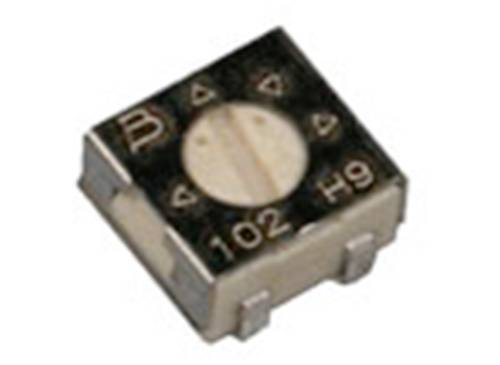

Bourns 3314J-1-503E Cermet trimmer 1-pos 0.25 W 50 kΩ 210 ° 240 ° 1 pc(s)
Product type
Cermet trimmer
Resistance
50 kΩ
Power rating
0.25 W
Mechanical angle
240 °
Connection
SMT
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 1.07 / piece)
€ 1.07
incl. VAT
14-day return policy included
Technical specifications
- Product type
Cermet trimmer
- Potentiometer features
1-pos
- Resistance
50 kΩ
- Power rating
0.25 W
- Electrical angle
210°
- Mechanical angle
240°
- Connection
SMT
- Type
SMD
- Operation type
top
- Min. temperature
-55 °C
- Max. temperature
125 °C
- Temperature coefficient
100 ppm/K
- Tolerance ±
20 %

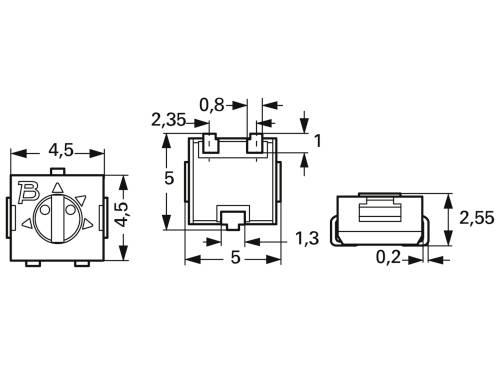

- Width
4.5 mm
- Height
2.55 mm
- CS
2.35 mm
- Dim
(L x W x H) 4.5 x 4.5 x 2.55 mm
- Content
1 pc(s)
- Type
3314J-1-503E
- RoHS-compliant
Yes
- Length
4.5 mm
- No. of rotations
1
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2996268 Bourns 3314J-1-503E Cermet trimmer 1-pos 0.25 W 50 kΩ 210 ° 240 ° 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2996268 Bourns 3314J-1-503E Cermet trimmer 1-pos 0.25 W 50 kΩ 210 ° 240 ° 1 pc(s)
Description
SMD cermet trim potentiometer, 3314J-1-503E, Bourns SMD cermet trim potentiometer, 50 kΩ, 0.25 W features * assembly / single turn / cermet industrial / sealed * compatible with surface-mounted production processes * compatible with common vacuum assembly machines * side adjustment available
This text is machine translated.
This text is machine translated.
