Buy Bourns 4605X-101-152LF Resistor ladder 1.5 kΩ THT SIP 5 0.2 W 1 pc(s)

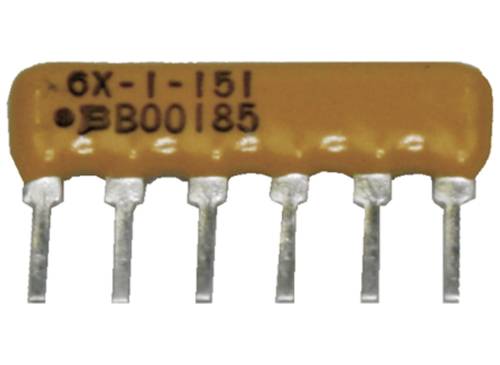

'Brown resistance network chip with six silver pins and the marking 6X-I-151 and B00185 on the top side.'

Circuit diagram of a 12-pin chip with a resistor in series at each pin. Dimensions are 1.24 x 3.43 mm with a spacing of 5.08 mm between pins.

1/2

Datasheet (PDF)

Fast track dispatch on Fri, 11 Sep

58 Piece(s)

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Minimum order quantity: 7

Total (€ 0.508 / piece)

€ 3.56

plus VAT.

Report legal concerns

Technical specifications

Type: THT

Type: SIP 5

Type: Number of resistors: 4

Resistance: 1.5 kΩ

Power rating: 0.2 W

Tolerance ±: 2 %

Temperature coefficient: 100 ppm/°C

Length: 12.65 mm

Width: 2.49 mm

Height: 5.08 mm

Content: 1 pc(s)

Dim: (L x W x H) 12.65 x 2.49 x 5.08 mm

Type: 4605X-101-152LF

Max. temperature: 125 °C

Product type: Resistor ladder

Documents & Downloads

Datasheet

Datasheet 2996335 Bourns 4605X-101-152LF Resistor ladder 1.5 kΩ THT SIP 5 0.2 W 1 pc(s)

User & Safety Instructions

User & Safety Instructions 2996335 Bourns 4605X-101-152LF Resistor ladder 1.5 kΩ THT SIP 5 0.2 W 1 pc(s)

Description

Resistor networks type Bourns 4600X. Thick film, SIL type (single-in-line), with resistors connected with each other (same values) and a common connection (Bussed resistors) With 4 5-pin resistors. Type 4605X-101-RC.
