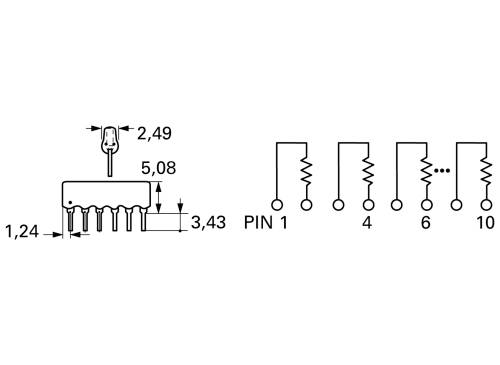

Stroke drawing/circuit diagram
Bourns 4608X-102-221LF Resistor ladder 220 Ω THT SIP 8 0.3 W 1 pc(s)
Product type
Resistor ladder
Type
THT
Resistance
220 Ω
Power rating
0.3 W
Tolerance ±
2 %
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 10
Total (€ 0.426 / piece)
€ 4.26
incl. VAT
14-day return policy included
Technical specifications
- Product type
Resistor ladder
- Type
THT
- Type
SIP 8
- Type
Number of resistors: 4
- Resistance
220 Ω
- Power rating
0.3 W
- Tolerance ±
2 %
- Temperature coefficient
100 ppm/°C
- Length
20.27 mm
- Width
2.49 mm
- Height
5.08 mm
- Content
1 pc(s)
- Dim
(L x W x H) 20.27 x 2.49 x 5.08 mm
- Type
4608X-102-221LF
- Max. temperature
125 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2996348 Bourns 4608X-102-221LF Resistor ladder 220 Ω THT SIP 8 0.3 W 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2996348 Bourns 4608X-102-221LF Resistor ladder 220 Ω THT SIP 8 0.3 W 1 pc(s)
Description
Resistor networks type Bourns 4600X. Thick film, SIL type (single-in-line), with non-connected and isolated and identical resistors each with their own connection (isolated resistors) With 4 resistors 8-pin. Type 4608X-102-RC.
