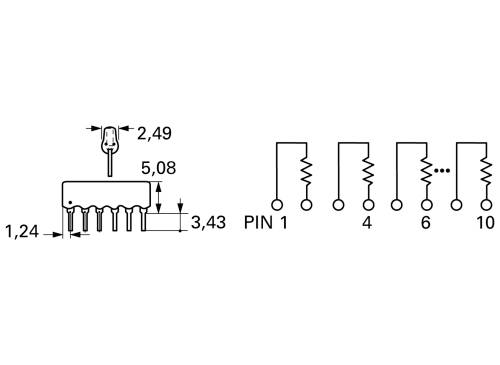

Stroke drawing/circuit diagram
Bourns 4610X-102-103LF Resistor ladder 10 kΩ THT SIP 10 0.3 W 1 pc(s)
Product type
Resistor ladder
Type
THT
Resistance
10 kΩ
Power rating
0.3 W
Tolerance ±
2 %
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Minimum order quantity: 7
Total (€ 0.462 / piece)
€ 0.46
incl. VAT
14-day return policy included
Technical specifications
- Product type
Resistor ladder
- Type
THT
- Type
SIP 10
- Type
Number of resistors: 5
- Resistance
10 kΩ
- Power rating
0.3 W
- Tolerance ±
2 %
- Temperature coefficient
100 ppm/°C
- Length
25.35 mm
- Width
2.49 mm
- Height
5.08 mm
- Content
1 pc(s)
- Dim
(L x W x H) 25.35 x 2.49 x 5.08 mm
- Type
4610X-102-103LF
- Max. temperature
125 °C
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2996365 Bourns 4610X-102-103LF Resistor ladder 10 kΩ THT SIP 10 0.3 W 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2996365 Bourns 4610X-102-103LF Resistor ladder 10 kΩ THT SIP 10 0.3 W 1 pc(s)
Description
Resistor networks type Bourns 4600X. Thick film, SIL type (single-in-line), with non-interconnected and isolated and the same resistors, each with their own connection (insulated resistors) With 5 10-pin resistors. Type 4610X-102-RC.
This text is machine translated.
This text is machine translated.
