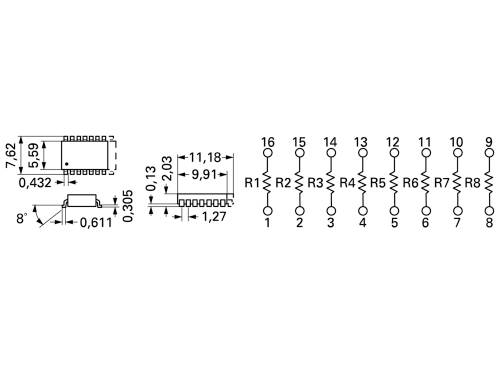

Stroke drawing/circuit diagram
Stroke drawing/circuit diagram
Bourns 4816P-1-102LF Resistor ladder 1 kΩ SMD SOIC-16 0.16 W 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Quantity (Piece(s))
Savings
Package size (plus VAT.)
2
-
€ 1.209
6
8% = € 0.10
€ 1.112
10
11% = € 0.14
€ 1.073
Volume discounts vary depending on the seller
You save € 0.00
Number
Minimum order quantity: 2
Total (€ 1.209 / piece)
€ 2.42
plus VAT.
Technical specifications
- Type
SMD
- Type
SOIC-16
- Type
Number of resistors: 8
- Resistance
1 kΩ
- Power rating
0.16 W
- Tolerance ±
2 %
- Temperature coefficient
100 ppm/°C
- Length
11.18 mm
- Width
7.62 mm
- Height
2.03 mm
- Content
1 pc(s)
- Dim
(L x W x H) 11.18 x 7.62 x 2.03 mm
- Type
4816P-1-102LF
- Max. temperature
125 °C
- Product type
Resistor ladder
Documents & Downloads
Datasheet
Datasheet 2996368 Bourns 4816P-1-102LF Resistor ladder 1 kΩ SMD SOIC-16 0.16 W 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2996368 Bourns 4816P-1-102LF Resistor ladder 1 kΩ SMD SOIC-16 0.16 W 1 pc(s)
Description
SMD resistor network type Bourns 4800P. Thick film, medium housing size (5.59 mm), standard E.I.A/SOGN-2002, with non-interconnected and isolated and identical resistors each with their own connection (isolated resistors) With 8 resistors (16-pole) type 4816P-001.
