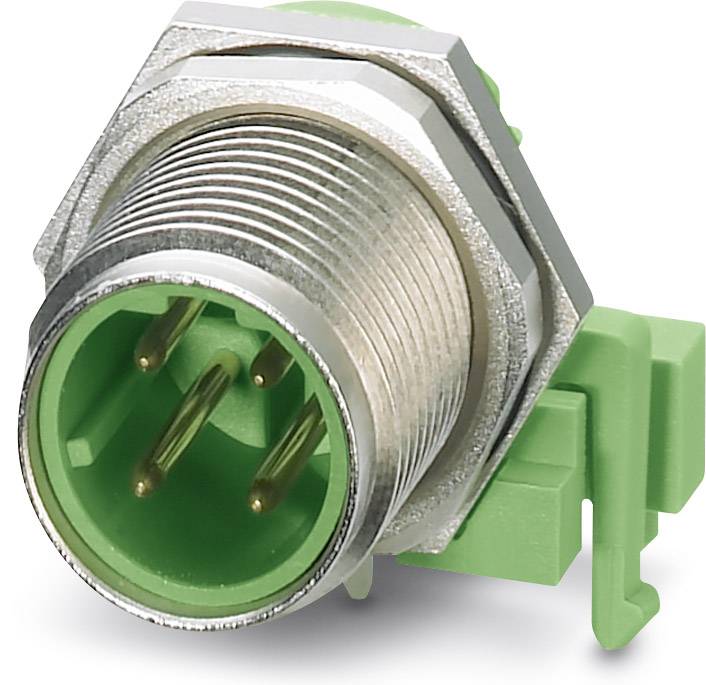

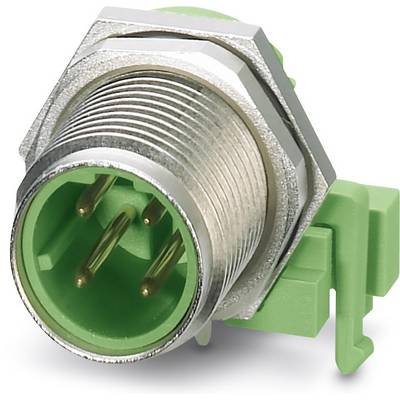

Bus system flat-type plug SACC-DSIV-M12MSD-4CON-L90 1434866 Phoenix Contact
EAN:
Part number:
Item no:
Product type
Sensor/actuator built-in connector
Connector type
Plug, mount
Connector standard
Bus connector
Connection side A
M12 plug, built-in
Connection side B
Customisable
Datasheet (PDF)
Number (Package size 10 pc(s))
Total (€ 12.18 / piece)
€ 121.84
plus VAT.
Only 8 Set(s) available
Highlights & Details
Bus system flat-type plug SACC-DSIV-M12MSD-4CON-L90
- SACC-DSIV-M12MSD-4CON-L90
- Industrial packaging, pack of 10
Technical specifications
- Packaging type
Package
- Type
SACC-DSIV-M12MSD-4CON-L90
- Product type
Sensor/actuator built-in connector
- Connector type
Plug, mount
- Connector standard
Bus connector
- Connection side A
M12 plug, built-in
- Connection side B
Customisable
- No. of pins
4
- Nominal voltage
250 V
- Nominal current
4 A
- Nominal current - rounded value
4 A
- Connection
Soldering
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Coding
D
- Sensor/actuator connectivity fittings
Rear panel fitting
IP67
- Features
Ethernet
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Seal type
Screw-on
- Manufacturer part #
1434866
- Industrial packaging
Yes
- Content
10 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 719836 Bus system flat-type plug SACC-DSIV-M12MSD-4CON-L90 1434866 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 719836 Bus system flat-type plug SACC-DSIV-M12MSD-4CON-L90 1434866 Phoenix Contact
Description
Bus system flush-type connector, ETHERNET, 4-pos., M12, shielded, D-coded, rear/screw mounting, with angled solder connection
Hints
Special order, no right of withdrawal.
