Bus system flat-type plug SACCBP-M12FS-8CON-M16/2,0-940 1553381 Phoenix Contact
Product type
Sensor/actuator built-in connector
Connector type
Socket, built-in
Connector standard
Sensor connector
Connection side A
Customisable
Connection side B
M12 socket, built-in
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 89.99 / piece)
€ 89.99
incl. VAT
Only 1 Piece(s) available
Technical specifications
- Type
SACCBP-M12FS-8CON-M16/2,0-940
- Product type
Sensor/actuator built-in connector
- Connector type
Socket, built-in
- Connector standard
Sensor connector
- Connection side A
Customisable
- Connection side B
M12 socket, built-in
- No. of pins
8
- Cable length
2.00 m
- Jacket material
PUR
- Nominal voltage
30 V
- Nominal current
2 A
- Nominal current - rounded value
2 A
- Outside Ø
0.96 mm
- Cross-section (sensor/actuator wiring)
0.14 mm²
- Connection
Open end cable
- Thread type connection side
M12
- Coding
A
IP67
- Manufacturer part #
1553381
- Content
1 pc(s)
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 719642 Bus system flat-type plug SACCBP-M12FS-8CON-M16/2,0-940 1553381 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 719642 Bus system flat-type plug SACCBP-M12FS-8CON-M16/2,0-940 1553381 Phoenix Contact
Description

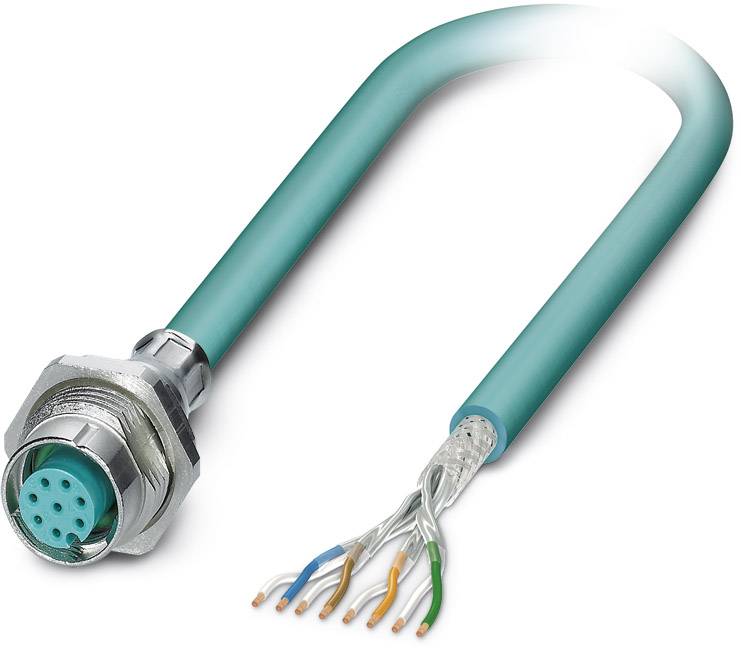

Bus system flush-type socket, ETHERNET, 8-pos., M12, shielded, rear/screw mounting with M16 thread, with 2 m bus cable, 4 x 2 x 0.26 mm²
Hints
Special order, no right of withdrawal.
