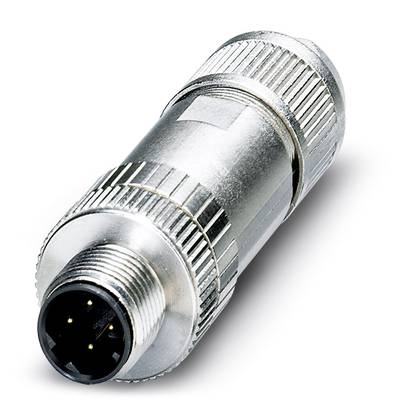

Bus system plug-in connector SACC-M12MSD-4Q SH PN 1554513 Phoenix Contact
Product type
Sensor/actuator data cable
Connector type
Plug, straight
Connector standard
Bus connector
Connection side A
M12 plug, straight
Connection side B
Customisable
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 31.99 / piece)
€ 31.99
incl. VAT
14-day return policy included
Technical specifications
- Type
SACC-M12MSD-4Q SH PN
- Product type
Sensor/actuator data cable
- Connector type
Plug, straight
- Connector standard
Bus connector
- Connection side A
M12 plug, straight
- Connection side B
Customisable
- No. of pins
4
- Nominal voltage
60 V DC
- Nominal current
1.75 A
- Nominal current - rounded value
1.75 A
- Outside Ø
1.60 mm
- Connection
Cut & Clip
- Factory colour
Multicolour
- Thread type connection side
M12
- Thread type (wiring and installation)
M12
- Cable colour
Multicolour
- Coding
D
IP67
- Features
D-coded
- Min. temperature
-40 °C
- Max. temperature
+85 °C
- Manufacturer part #
1554513
- Content
1 pc(s)
- Cable Ø (max.)
8 mm
- Cable Ø up to
4 mm
- Cable Ø range
4 - 8 mm
- Version
Connector
- Number of pins
4
- Case material
Brass
Other
48 V
TRUE
Other
Zinc
Other
85-85 °C
V0
Insulation displacement connection
Nickel
II
3
Straight
FALSE
1.75 A
100
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 584437 Bus system plug-in connector SACC-M12MSD-4Q SH PN 1554513 Phoenix Contact
User & Safety Instructions
User & Safety Instructions 584437 Bus system plug-in connector SACC-M12MSD-4Q SH PN 1554513 Phoenix Contact
Description
Bus system plug-in connector, PROFINET, 4-position, shielded, Plug straightLink:M12, D-coded, Insulation displacement connection, Knurl material: Nickel-plated brass, External cable diameter 4 mm ... 8 mm
