Name: Busch-Jaeger 2CHK290432C5300 1 pc(s)
Brand: Busch-Jaeger
SKU: 3545911

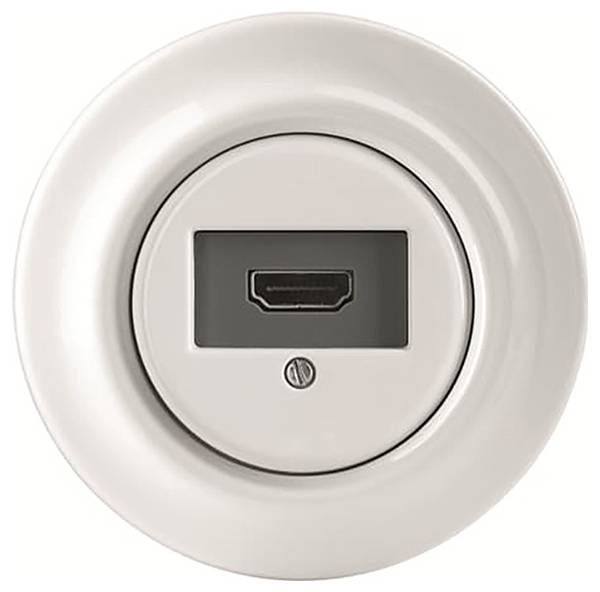

A circular wall plate with an HDMI port, designed for neat cable management in home or office setups.

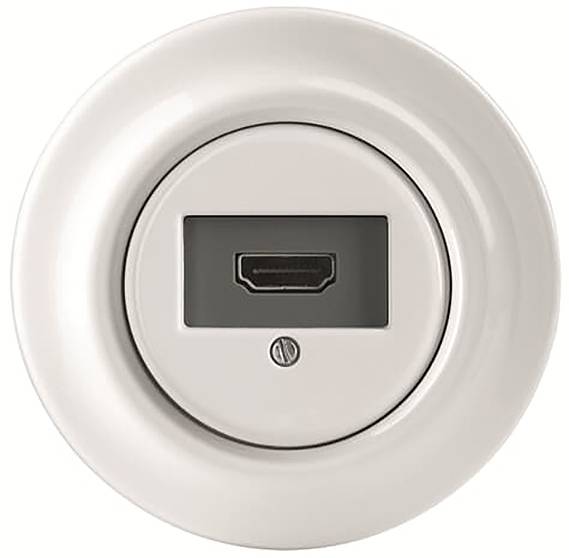

A wall-mounted HDMI port set within a circular, white faceplate.

1/2

Image similar

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Busch-Jaeger HDMI junction box 0261/32 J-64

Busch & Jaeger Switch Product Range

Technical specifications

Mounting type: Flush-mounted
Material: Other
Colour: white
Surface protection: Untreated
Transparent: No.
Surface design: Glossy
With hinged cover: No.
Halogen-free: No.
Min Depth of the device socket 34 mm
Material quality: Other
Mounting method: Fixing with screw
Antibacterial treatment: No.
Use: HDMI
RAL number (similar): 9016
Suitable for protection class (IP): IP20
Assembly: Base element with housing top
Bearing ring: No.
With dust protection: No.
Outlet direction: Straight
Labelling field: Without labeling field
With imprint: No.
With sockets/couplings: No.
Suitable for number of sockets/couplings: 1
With strain relief: No.
Shielded sockets: No.
Shielded housing: No.
Connector strip: No.
With illumination: No.
Device width 87 mm
Device height 34 mm
Device depth 87 mm

Type: Busch-Jaeger HDMI junction box 0261/32 J-64

Product type: Switch product range

Content: 1 pc(s)

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3545911 Busch-Jaeger 2CHK290432C5300 1 pc(s)

Description

Complete unit: Insert, central panel and frame.
Vintage style with always open housing screws.
For multiple combinations (vertical or horizontal), we recommend the device socket-No. 1055-04) in connection with the connecting pieces (Article No. 1159-34) from KAISER.
Design line: Decento®

This text is machine translated.
