Busch-Jaeger 2CKA001413A1116 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

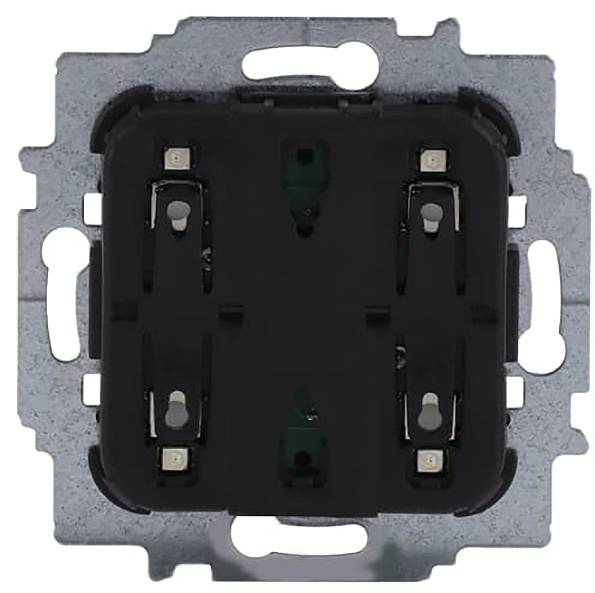

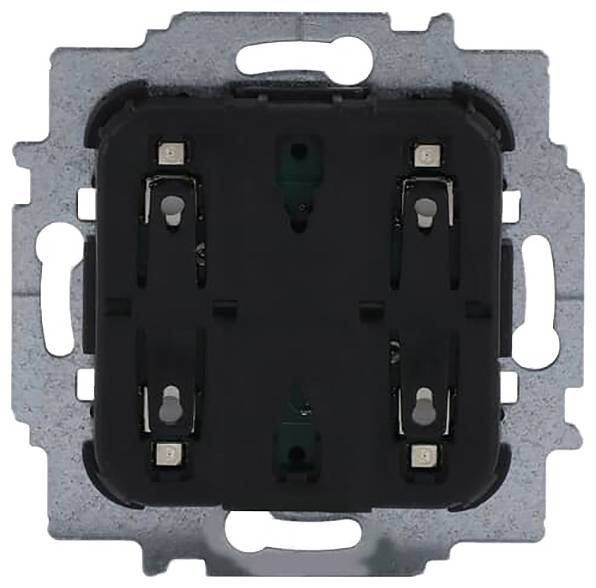

Busch-Jaeger electronic switch 2-f 2052 U
- Busch & Jaeger Switch Product Range
Technical specifications
- Mounting depth: 32 mm
- Rated current 0.05 A
- Mounting type: Flush-mounted
- Colour, black
- Surface protection: Untreated
- Design of surface: Matt
- Type of connection: Screw terminal
- Halogen-free: Yes
- Min Depth of the device socket 32 mm
- Compatible with Apple home kit: Yes
- Compatible with Google Assistant: Yes
- Compatible with Amazon Alexa: Yes
- IFTTT support available: Yes
- Mounting type: Screw fixing
- Antibacterial treatment: No.
- RAL number (similar): 9005
- Suitable for protection class (IP): IP20
- Assembly: Base element
- Device width 191 mm
- Device height 76 mm
- Device depth 43 mm
- Number of operating rockers: 2
- Feedback contact: Yes
- Lighting: Yes
- Heating switch: No.
- Washing machine switch: No.
- Lighting type: Other
- Type
Busch-Jaeger electronic switch 2-f 2052 U
- Product type
Switch product range
- Content
1 pc(s)
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3547777 Busch-Jaeger 2CKA001413A1116 1 pc(s)
Description
For connection to a room controller, binary input, SPS,
LED status indicator.
Contains two standard pluggable connection blocks with plug-in terminals.
The normally open contact and LED s are led individually to the connection blocks.
For switching or dimming of lighting or for blinds operation in connection with the respective control system.
For operation on a SELV control system, e.g. on a room controller, a room box or a central control unit.
For use in functional buildings e.g. in hotels, schools and office buildings.
Pre-wiring possible using the supplied terminal block according to the connection diagram.
Connection via connection block for flexible and rigid wires (up to 1.5 mm²).
Mounting required in UP sockets according to DIN 49073.
Design line: Platform 63, Busch-art linear®, future® linear, Busch-aXcent®, solo®, pure stainless steel, karat®, Busch-dynasty®
Design line Variant: Busch-art linear®, Busch-art linear® - with decorative ring, Busch-art linear® - real material, future®, future® linear, Busch-aXcent®, Busch-aXcent® pure
This text is machine translated.
LED status indicator.
Contains two standard pluggable connection blocks with plug-in terminals.
The normally open contact and LED s are led individually to the connection blocks.
For switching or dimming of lighting or for blinds operation in connection with the respective control system.
For operation on a SELV control system, e.g. on a room controller, a room box or a central control unit.
For use in functional buildings e.g. in hotels, schools and office buildings.
Pre-wiring possible using the supplied terminal block according to the connection diagram.
Connection via connection block for flexible and rigid wires (up to 1.5 mm²).
Mounting required in UP sockets according to DIN 49073.
Design line: Platform 63, Busch-art linear®, future® linear, Busch-aXcent®, solo®, pure stainless steel, karat®, Busch-dynasty®
Design line Variant: Busch-art linear®, Busch-art linear® - with decorative ring, Busch-art linear® - real material, future®, future® linear, Busch-aXcent®, Busch-aXcent® pure
This text is machine translated.
