Name: Busch-Jaeger 2CKA001751A3173 1 pc(s)
Brand: Busch-Jaeger
SKU: 3545903

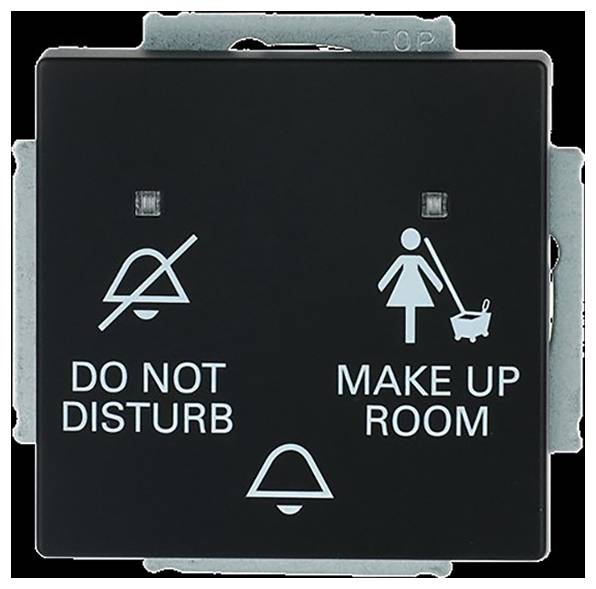

Hotel room sign with two options: 'Do Not Disturb' with a crossed-out bell icon, and 'Make Up Room' with a figure pushing a trolley.

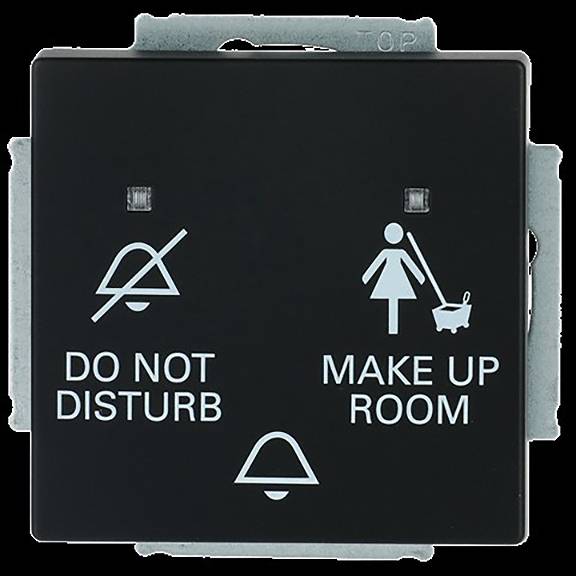

A black panel with icons: left side, a crossed-out bell above 'DO NOT DISTURB'; right side, a person with a trolley above 'MAKE UP ROOM'.

1/2

Image similar

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Busch-Jaeger doorbell button one. DND/MUR 2029 UC-885

Busch & Jaeger Switch Product Range

Technical specifications

Number of poles: 1
Rated current 10 A
Design: Single button
Mounting type: Flush-mounted
Material: Plastic
Colour, black
Surface protection: Painted
Transparent: No.
Design of surface: Matt
Nominal voltage: 250 V
Connection type: Plug-in terminal
Halogen-free: Yes
Number of contacts as N/O contacts: 1
With signal lamp: Yes
Min Depth of the device socket 27 mm
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
With bulb: Yes
Material quality: Thermoplastic
Mounting type: Screw fixing
Antibacterial treatment: No.
RAL number (similar): 9005
Suitable for protection class (IP): IP20
Text field/label area: No.
Assembly: Base element with central cover plate
With illumination: Yes
Device width 63 mm
Device height 63 mm
Device depth 32.2 mm
Button mode
Non-contact version: No.
Feedback contact: Yes
Printed: "Bell" symbol

Type: Busch-Jaeger doorbell button one. DND/MUR 2029 UC-885

Product type: Bell button

Content: 1 pc(s)

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3545903 Busch-Jaeger 2CKA001751A3173 1 pc(s)

Description

For switching electrical consumers.
With "
DO NOT DISTURB"
/"
MAKE-UP ROOM"
.
230 V version with light diodes to display the status.
For use in non-residential areas.
Only mount in conjunction with standard UP equipment boxes to DIN 49073.
Design line: Platform 63, future® linear, Busch-aXcent®, karat®
Design line variant: Future® linear - matt, Busch-aXcent®, Busch-aXcent® pure

This text is machine translated.
