Name: Busch-Jaeger 2CKA006220A0902 1 pc(s)
Brand: Busch-Jaeger
SKU: 3544832

Highlights & Details

Busch-Jaeger room temperature regulator 6x, SWZ Matte SBC-F-6.0.11-885

Busch & Jaeger Switch Product Range

Technical specifications

Mounting type: Flush-mounted
Material: Plastic
Colour, black
Protection class (IP) IP20
Surface protection: Painted
Design of surface: Matt
KNX bus system: No.
Bus system LON: No.
Bus system Powernet: No.
Other bus systems: Other
Bus system KNX radio: No.
Bus system wireless bus: No.
With LED display: Yes
With bus connection: No.
Min Depth of the device socket 30.7 mm
Material quality: Thermoplastic
RAL number (similar): 9005
Assembly: Operating element
Temperature controller class: I.

Type: Busch-Jaeger room temperature regulator 6x, SWZ Matte SBC-F-6.0.11-885

Product type: Switch product range

Content: 1 pc(s)

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3544832 Busch-Jaeger 2CKA006220A0902 1 pc(s)

Description

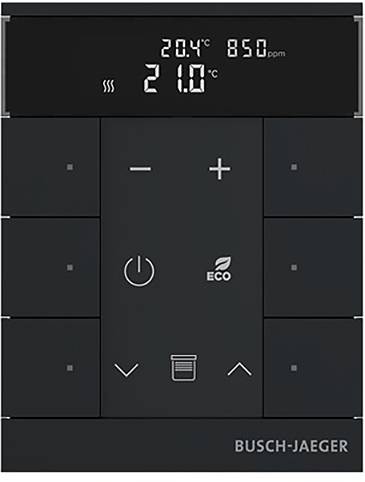

Busch-TenTon®, room temperature controller with CO2/humidity sensor and operating function 6-fold
Freely configurable multifunctional control element.
With integrated free@home bus connection.
With integrated room temperature controller and temperature sensor.
Button function: Switch / dim / blind / send value / light scenes etc.
For controlling HVAC actuators.
Main-/branch line operation
The fan stage can be switched manually or into automatic mode
Power supply via bus terminals (a,b).
Button contacts left / right
Design line: Busch-TenTon®
Product line: Busch-free@home®

This text is machine translated.
