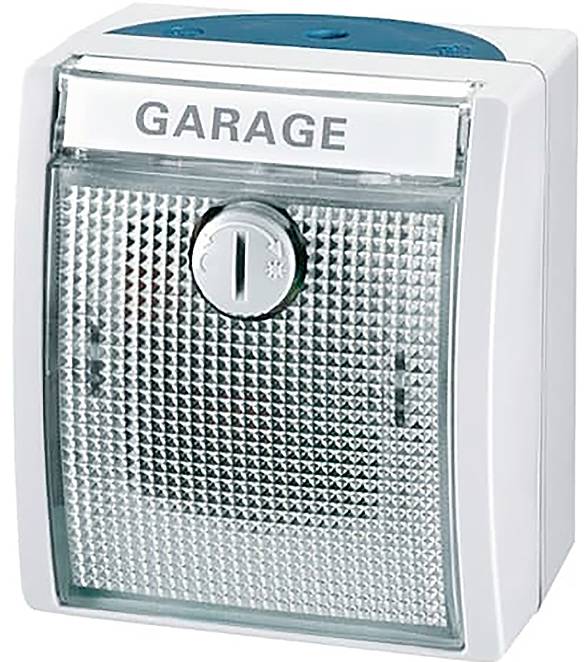

Busch-Jaeger 2CKA006500A0791 Twilight switch
EAN:
Part number:
Item no:
Technical specifications
- Height: 83 mm
- Width 74 mm
- Depth: 55 mm
- Mounting type: Surface-mounted
- Material: Plastic
- Colour : blue
- Surface protection: Untreated
- Transparent: Yes
- Surface design: Glossy
- Nominal voltage: 230 V
- Halogen-free: Yes
- Maximum breaking capacity 3680 W
- Suitable for C-Load: No.
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Material quality: Thermoplastic
- RAL number (similar): 7035
- Suitable for protection class (IP): IP44
- Max. Switching current (ohmic load) 16 A
- Switch-off delay 360 s.
- Switch-on delay 180 s.
- Operating temperature 35 °C .55 °C
- Contacts: 1 normally open contact
- Sensor type: Light sensor integrated
- Switch-on brightness 3..500 lx
- Switch-off brightness 3..500 lx
- With automatic night-time switch-off: Yes
- Swivel: No.
- Product type
Twilight switch
- Mounting type
Surface-mount
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3551181 Busch-Jaeger 2CKA006500A0791 Twilight switch
Description
With labeling field. Labelling area 57.8 x 9.8 mm On-off delay: Approx. 3-6 min fixed set. Non-illuminated label plate.
Design line: Ocean®
Dimensions of the label field 57.8 x 9.8 mm
This text is machine translated.
Design line: Ocean®
Dimensions of the label field 57.8 x 9.8 mm
This text is machine translated.
