Name: Busch-Jaeger 2CKA006730A0059 1 pc(s)
Brand: Busch-Jaeger
SKU: 3547441

Highlights & Details

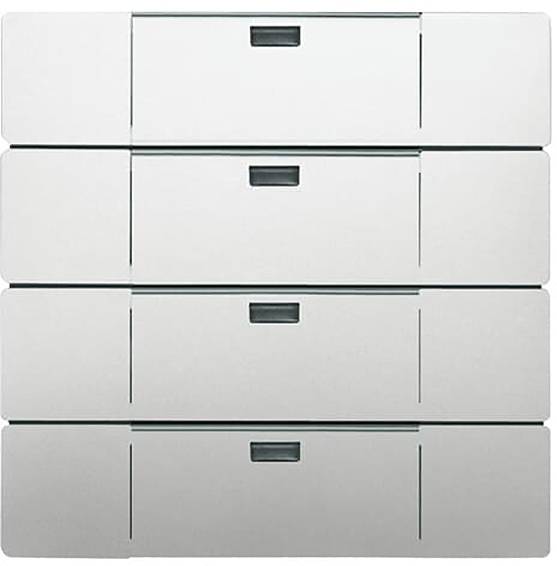

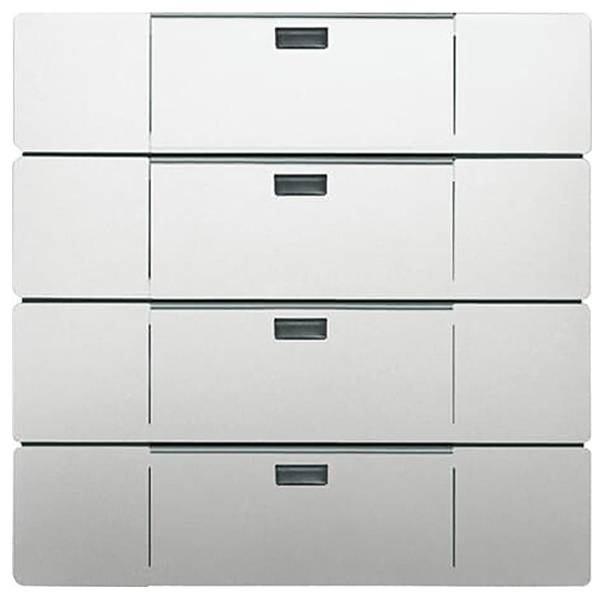

Busch-Jaeger operating element 4-gang stainless steel 6733-866

Busch & Jaeger Switch Product Range

Technical specifications

Mounting type: Surface-mounted
Material: Other
Colour: Stainless steel
Surface protection: Painted
Transparent: No.
Design of surface: Matt
Halogen-free: No.
Number of channels: 4
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Material quality: Thermoplastic
With hand-held transmitter: No.
Wall transmitter: Yes
Window transmitter: No.
With remote control: No.
Signal transmission: Other
Range: 100 m
Suitable for switches: Yes
Suitable for dimmer: Yes
Suitable for blind switches: Yes
Suitable for display element: No.
Suitable for motion detector: No.

Type: Busch-Jaeger operating element 4-gang stainless steel 6733-866

Product type: Control unit

Content: 1 pc(s)

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3547441 Busch-Jaeger 2CKA006730A0059 1 pc(s)

Description

Mains independent 4-way wall transmitter.
With labeling field and labeling label.
For switching and dimming.
For controlling shutters and lighting scenes.
4 wireless channels can be used, or up to 8 light scenes can be selected.
For WaveLine UP actuators 6701-101, 6702, 6703, 6704 and 6705-101.
Transmission frequency: 868 MHz
Range approx. 100 m (in open air)
Power supply: Lithium button cell type CR2032.
Battery life: Type. 5 years, therefore practically maintenance free.
Automatic monitoring of battery life.
With 6 bits. Mounting plate for mounting on smooth walls or on switch boxes.
Control elements: Left/right button contacts
Display elements: Status display of the transmission stage via LED
Nominal voltage: 3 V
Protection class IP 20 device
Temperature range of device -5 °C - 45 °C
Dimensions (H x W x D) 63 x 63 x 16 mm
Battery included.
Design line: Pure stainless steel
WaveLine product line

This text is machine translated.

Description

Mains independent 4-way wall transmitter.
With labeling field and labeling label.
For switching and dimming.
For controlling shutters and lighting scenes.
4 wireless channels can be used, or up to 8 light scenes can be selected.
For WaveLine UP actuators 6701-101, 6702, 6703, 6704 and 6705-101.
Transmission frequency: 868 MHz
Range approx. 100 m (in open air)
Power supply: Lithium button cell type CR2032.
Battery life: Type. 5 years, therefore practically maintenance free.
Automatic monitoring of battery life.
With 6 bits. Mounting plate for mounting on smooth walls or on switch boxes.
Control elements: Left/right button contacts
Display elements: Status display of the transmission stage via LED
Nominal voltage: 3 V
Protection class IP 20 device
Temperature range of device -5 °C - 45 °C
Dimensions (H x W x D) 63 x 63 x 16 mm
Battery included.
Design line: Pure stainless steel
WaveLine product line

This text is machine translated.
