Name: Busch-Jaeger 2CKA006730A0081 1 pc(s)
Brand: Busch-Jaeger
SKU: 3547450

Highlights & Details

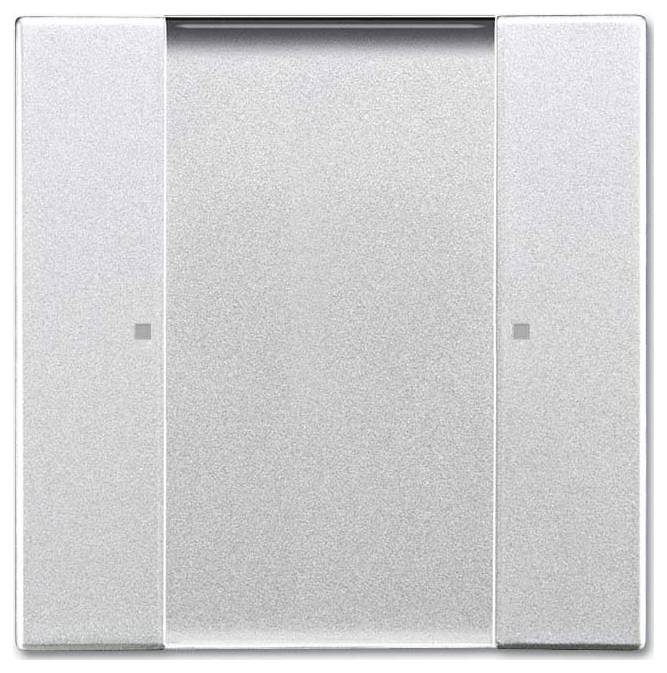

Busch-Jaeger wall transmitter aluminum silver 6735/01-83

Busch & Jaeger Switch Product Range

Technical specifications

Mounting type: Flush-mounted
Material: Other
Colour: Aluminium
Surface protection: Painted
Transparent: No.
Design of surface: Matt
Halogen-free: No.
Number of channels: 1
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Material quality: Thermoplastic
RAL number (similar): 9006
With hand-held transmitter: No.
Wall transmitter: Yes
Window transmitter: No.
With remote control: No.
Signal transmission: Other
Range: 100 m
Suitable for switches: Yes
Suitable for dimmer: Yes
Suitable for blind switches: Yes
Suitable for display element: No.
Suitable for motion detector: No.

Type: Busch-Jaeger wall transmitter aluminum silver 6735/01-83

Product type: Switch product range

Content: 1 pc(s)

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3547450 Busch-Jaeger 2CKA006730A0081 1 pc(s)

Description

Mains independent 1-way wall transmitter. For wireless remote control of other ZigBee Light Link radio components. For storing and calling up 2 light scenes. For dimming a light scene. A combination with other systems such as Philips hue is possible, as long as they also conform to the ZigBee Light Link 1.0 standard (not compatible with ZigBee home automation or ZigBee 3.0) With inscription field. Without enclosed inscription sheet. Labelling software under www.BUSCH-JAEGER-Beschriftungstool.de transmission/reception frequency 2.4 GHz. Range approx. 100 m (in open air) Power supply: Lithium button cell type CR2450 (included). Battery life: Type. 3 years. Automatic monitoring of battery life. With 6 bits. Mounting plate for mounting on smooth walls or on switch boxes. Nom. Voltage: 3 V- Protection type Device: IP 20 Temperature range Device: -5 °C - 45 °C Dimensions (H x W x D): 64 mm x 64 mm x 18 mm

This text is machine translated.

Description

Mains independent 1-way wall transmitter. For wireless remote control of other ZigBee Light Link radio components. For storing and calling up 2 light scenes. For dimming a light scene. A combination with other systems such as Philips hue is possible, as long as they also conform to the ZigBee Light Link 1.0 standard (not compatible with ZigBee home automation or ZigBee 3.0) With inscription field. Without enclosed inscription sheet. Labelling software under www.BUSCH-JAEGER-Beschriftungstool.de transmission/reception frequency 2.4 GHz. Range approx. 100 m (in open air) Power supply: Lithium button cell type CR2450 (included). Battery life: Type. 3 years. Automatic monitoring of battery life. With 6 bits. Mounting plate for mounting on smooth walls or on switch boxes. Nom. Voltage: 3 V- Protection type Device: IP 20 Temperature range Device: -5 °C - 45 °C Dimensions (H x W x D): 64 mm x 64 mm x 18 mm

This text is machine translated.
