Name: Busch-Jaeger Black 2CKA000470A0021 1 pc(s)
Brand: Busch-Jaeger
SKU: 3845735

Highlights & Details

Profile half cylinder equal to 0521 PZ-GS

Busch & Jaeger Switch Product Range

Technical specifications

Mounting method: Clamp mounting
Material quality: Thermoplastic
Halogen-free: No
Surface protection: Painted
Design of surface: Matt
Antibacterial treatment: No
Transparent: No
Mounting direction: Vertical
With hinged cover: No
Mounting width 55 mm
Text field/label area: No
Number of units: 3
Flush mounting: Yes
Mounting height 55 mm
Number of units vertical: 3
Number of vertical modules (for modular design): 3
With mounting frame: No
Suitable for underground passage box: No
Suitable for device installation channel: Yes
Suitable for panel mounting: No
Diameter boring (opening): 71 mm

Type: Profile half cylinder equal to 0521 PZ-GS

Product type: Euro profile cylinder

Factory colour: Black

: IP20
IK03

Dim: (W x H x D) 81 x 223 x 12 mm

Content: 1 pc(s)

Similar RAL: 9004

Depth: 12 mm

Height: 223 mm

Width: 81 mm

Material: Plastic

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3845735 Busch-Jaeger Black 2CKA000470A0021 1 pc(s)

Description

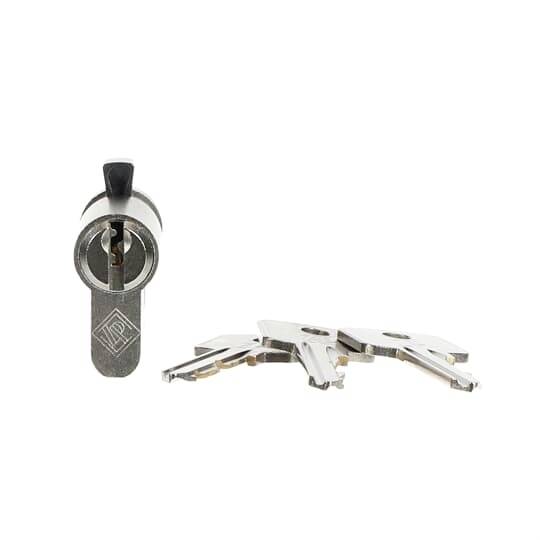

Profile cylinder in line with DIN 18252. Total length 40 mm for blind switch/sensor. Delivery: One profile half cylinder and three keys. These three keys fit this profile half-cylinder and any further profile half-cylinder that you can obtain under this Art.-No order. The profile half cylinders are therefore called common closing (GS). Design line: Platform 63, Busch-Duro 2000® SI, Reflex SI, Busch-balance® SI, Busch-art linear®, future® linear, Busch-aXcent®, solo®, pure stainless steel, karat®, Busch-dynasty®, Alpha, impuls Design line Variant: Busch-Duro 2000® SI, Busch-Duro 2000® SI Linear, Reflex SI, Reflex SI Linear, Busch-art linear®, bush-art linear® - with decorative ring, bush-art linear® - real material, future® linear, bush-aXcent®, bush-aXcent® pure

This text is machine translated.

Description

Profile cylinder in line with DIN 18252. Total length 40 mm for blind switch/sensor. Delivery: One profile half cylinder and three keys. These three keys fit this profile half-cylinder and any further profile half-cylinder that you can obtain under this Art.-No order. The profile half cylinders are therefore called common closing (GS). Design line: Platform 63, Busch-Duro 2000® SI, Reflex SI, Busch-balance® SI, Busch-art linear®, future® linear, Busch-aXcent®, solo®, pure stainless steel, karat®, Busch-dynasty®, Alpha, impuls Design line Variant: Busch-Duro 2000® SI, Busch-Duro 2000® SI Linear, Reflex SI, Reflex SI Linear, Busch-art linear®, bush-art linear® - with decorative ring, bush-art linear® - real material, future® linear, bush-aXcent®, bush-aXcent® pure

This text is machine translated.
