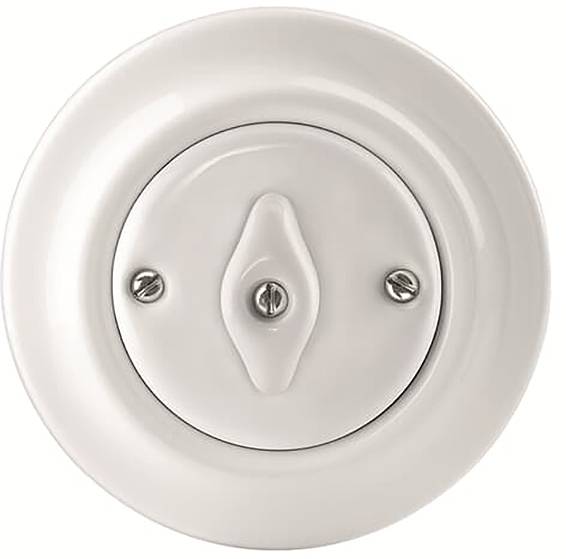

Busch-Jaeger Complete Cross-switch Decento 2CHK600734C5300 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Busch-Jaeger cross-switch 2002/7 UJDR-64
- Busch & Jaeger Switch Product Range
Technical specifications
- With mounting plate: Yes
- Installation depth: 26.2 mm
- Rated current 10 A
- Mounting type: Flush-mounted
- Material: Other
- Colour: white
- Surface protection: Untreated
- Surface design: Glossy
- Nominal voltage: 250 V
- Connection type: Plug-in terminal
- Halogen-free: No.
- Min Depth of the device socket 26.2 mm
- Compatible with Apple HomeKit: No.
- Compatible with Google Assistant: No.
- Compatible with Amazon Alexa: No.
- IFTTT support available: No.
- Material quality: Porcelain
- Mounting type: Screw fixing
- Antibacterial treatment: No.
- RAL number (similar): 9016
- Suitable for protection class (IP): IP20
- Text field/label area: No.
- Assembly: Base element with housing top
- Device width 98 mm
- Device height 103 mm
- Device depth 47 mm
- Control mode: Rotary knob
- Number of operating rockers: 1
- Feedback contact: No.
- Switching mode: Intermediate switch
- Push button: No
- Lighting: No.
- Heating switch: No.
- Washing machine switch: No.
- Type
Busch-Jaeger cross-switch 2002/7 UJDR-64
- Switch type function
Cross-switch
- Product type
Switch product range
- Switch type component
Complete
- Type series
Decento
- Content
1 pc(s)
- Similar RAL
9016
- Material
Ceramic
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3543279 Busch-Jaeger Complete Cross-switch Decento 2CHK600734C5300 1 pc(s)
Description
Complete unit: Insert, central panel and frame.
Vintage style with always open housing screws.
For multiple combinations (vertical or horizontal), we recommend the device socket-No. 1055-04) in connection with the connecting pieces (Article No. 1159-34) from KAISER.
Design line: Decento®
This text is machine translated.
Vintage style with always open housing screws.
For multiple combinations (vertical or horizontal), we recommend the device socket-No. 1055-04) in connection with the connecting pieces (Article No. 1159-34) from KAISER.
Design line: Decento®
This text is machine translated.
