Eco

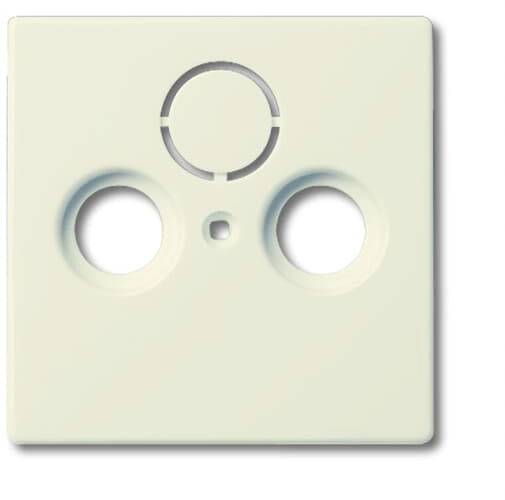

Busch-Jaeger Cover SAT socket Creamy white, Oyster white 2CKA001724A2758
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Central panel
- Busch & Jaeger Switch Product Range
Technical specifications
- Outlet direction: Straight
- Labeling field: Without labeling field
- Shielded sockets: No.
- Suitable for number of sockets/couplings: 3
- Casing shielded: No.
- Connector strip: No.
- Printed: No.
- With sockets/couplings: No.
- With dust protection: No.
- Retaining ring: No.
- With strain relief: No.
- Composition: Control element
- With hinged lid: No.
- Fastening method: Fixing with screw
- Halogen-free: Yes
- Transparent: No.
- Material quality: Thermoplastic
- RAL number (similar): 1013
- Surface type: Glossy
- Surface: Untreated
- Color: Cream white (electrowhite)
- Material: Plastic
- Min Depth of the appliance socket: 40
- Suitable for protection class (IP): IP20
- Mounting type: Flush-mounted
- Use: Sat
- Number of modules (for modular design): 1
- Device width 71
- Device height: 71
- Device depth: 32
- Type
Central panel
- Switch type function
SAT socket
- Product type
Switch product range
- Switch type component
Cover
- Factory colour
Creamy white
Oyster white
IP20
- Content
1 pc(s)
- Material
Thermoplastic
- UKCA
yes
- Eco badge reference
Cradle to Cradle certified
Documents & Downloads
Datasheet
Datasheet 2333265 Busch-Jaeger Cover SAT socket Creamy white, Oyster white 2CKA001724A2758
User & Safety Instructions
User & Safety Instructions 2333265 Busch-Jaeger Cover SAT socket Creamy white, Oyster white 2CKA001724A2758
Description
With 2 connections.according to DIN 45330.Radio/TV/SAT.with central mounting M3.
This text is machine translated.
This text is machine translated.
