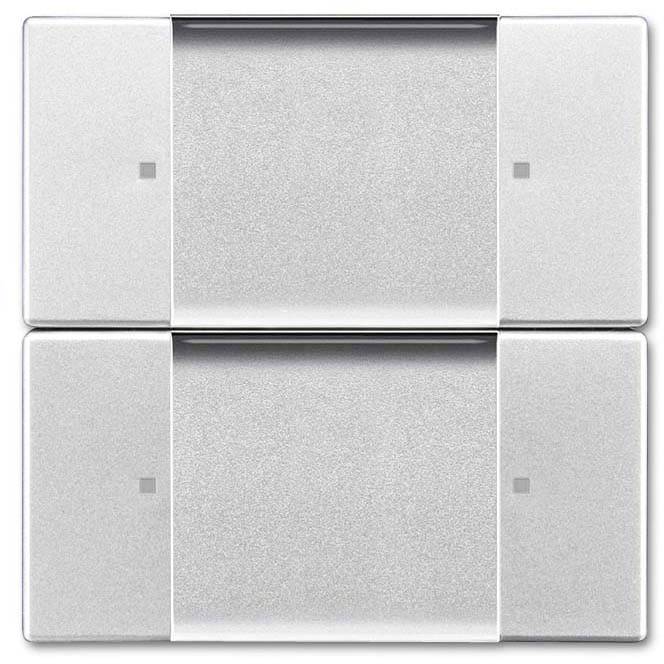

Name: Busch-Jaeger Cover Switch Aluminium 2CKA006730A0073 1 pc(s)
Brand: Busch-Jaeger
SKU: 3544322

Highlights & Details

Busch-Jaeger control element aluminum silver 6736-83

Busch & Jaeger Switch Product Range

Technical specifications

Mounting type: Flush-mounted
Material: Plastic
Colour: Aluminium
Surface protection: Painted
Transparent: No.
Design of surface: Matt
Halogen-free: Yes
Compatible with Apple HomeKit: No.
Compatible with Google Assistant: No.
Compatible with Amazon Alexa: No.
IFTTT support available: No.
Material quality: Thermoplastic
Mounting method: Clamp mounting
RAL number (similar): 9006
Suitable for protection class (IP): IP20
Suitable for switches: Yes
Suitable for dimmer: Yes
Suitable for shutter switch no.
Suitable for pulse pressure: Yes
Suitable for shutter switch no.
Suitable for blinds/shutter switch: No.
In the case: Yes
In the tube base housing: No.
As module/board: Yes
Power supply 230 V AC
Scan mode: Yes
Switching operation: Yes
With radio hand-held transmitter: Yes
With radio code: No.
With wireless switch: Yes
Radio frequency: 2400 MHz
Rolling code system: No.
Number of relays: 1

Type: Busch-Jaeger control element aluminum silver 6736-83

Switch type function: Switch

Product type: Control unit

Switch type component: Cover

Factory colour: Aluminium

Content: 1 pc(s)

Similar RAL: 9006

: 100 m

Material: Thermoplastic

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3544322 Busch-Jaeger Cover Switch Aluminium 2CKA006730A0073 1 pc(s)

Description

For switching and dimming electrical loads via radio. For ZigBee Light Link-UP inserts 6710 U, 6711 U and 6715 U. In conjunction with the ZigBee Light Link-UP inserts 6711 U and 6715 U, the top rocker switches the non-ZLL lamps and other loads connected to the UP insert directly or dim. The 6736 and 6737 can be used to store, access and dim light scenes. In conjunction with the 6710 U ZigBee Light Link UP insert to store and access 4 lighting scenes or dimming 2 lighting scenes. A combination with other systems such as Philips hue is possible, as long as they also conform to the ZigBee Light Link 1.0 standard (not compatible with ZigBee home automation or ZigBee 3.0) With inscription field. Without enclosed inscription sheet. Labelling software under www.BUSCH-JAEGER-Beschriftungstool.de transmission/reception frequency 2.4 GHz. Range: Approx. 100 m (free field) Surface painted plastic.

This text is machine translated.

Description

For switching and dimming electrical loads via radio. For ZigBee Light Link-UP inserts 6710 U, 6711 U and 6715 U. In conjunction with the ZigBee Light Link-UP inserts 6711 U and 6715 U, the top rocker switches the non-ZLL lamps and other loads connected to the UP insert directly or dim. The 6736 and 6737 can be used to store, access and dim light scenes. In conjunction with the 6710 U ZigBee Light Link UP insert to store and access 4 lighting scenes or dimming 2 lighting scenes. A combination with other systems such as Philips hue is possible, as long as they also conform to the ZigBee Light Link 1.0 standard (not compatible with ZigBee home automation or ZigBee 3.0) With inscription field. Without enclosed inscription sheet. Labelling software under www.BUSCH-JAEGER-Beschriftungstool.de transmission/reception frequency 2.4 GHz. Range: Approx. 100 m (free field) Surface painted plastic.

This text is machine translated.
