Busch-Jaeger Frame Busch-axcent 2CKA001754A4350 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details

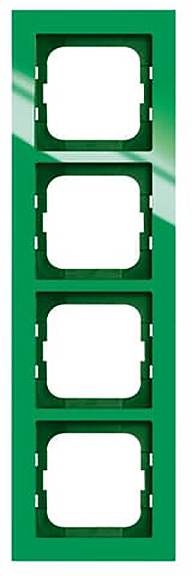

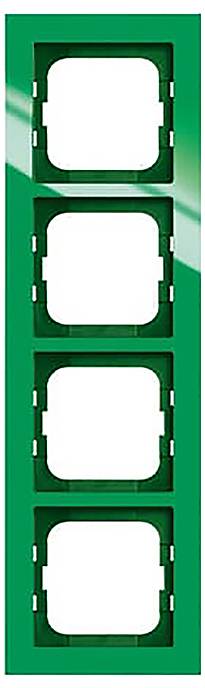

Busch-Jaeger frame 4-way green 1724-286
- Busch & Jaeger Switch Product Range
Technical specifications
- Height: 304 mm
- Width 91 mm
- Depth: 11 mm
- Material: Plastic
- Colour: green
- Protection class (IP) IP20
- Mounting width 63 mm
- Mounting height 63 mm
- Surface protection: Untreated
- Impact strength: IK03
- Transparent: No.
- Surface design: Glossy
- With hinged cover: No.
- Halogen-free: Yes
- Flush mounting: Yes
- Material quality: Thermoplastic
- Mounting method: Clamp mounting
- Antibacterial treatment: No.
- RAL number (similar): 6032
- Number of units: 4
- Mounting direction: Horizontal and vertical
- Number of units horizontal: 4
- Number of units vertical: 4
- With mounting frame: No.
- Suitable for underground passage box: No.
- Suitable for device installation channel: Yes
- Suitable for panel mounting: No.
- Text field/label area: No.
- Diameter boring (opening): 71 mm
- Type
Busch-Jaeger frame 4-way green 1724-286
- Product type
Faceplate
- Switch type component
Frame
- Type series
Busch-axcent
- Content
1 pc(s)
- Similar RAL
6032
- Material
Thermoplastic
- UKCA
yes
- Eco badge reference
Cradle to Cradle certified
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3544927 Busch-Jaeger Frame Busch-axcent 2CKA001754A4350 1 pc(s)
Description
To cover switches, buttons and sockets.
Design line: Busch-aXcent®, platform 63
Design line variant: Busch-aXcent®
This text is machine translated.
Design line: Busch-aXcent®, platform 63
Design line variant: Busch-aXcent®
This text is machine translated.
