Name: Busch-Jaeger Frame Carat 2CKA001754A4821 1 pc(s)
Brand: Busch-Jaeger
SKU: 3546939

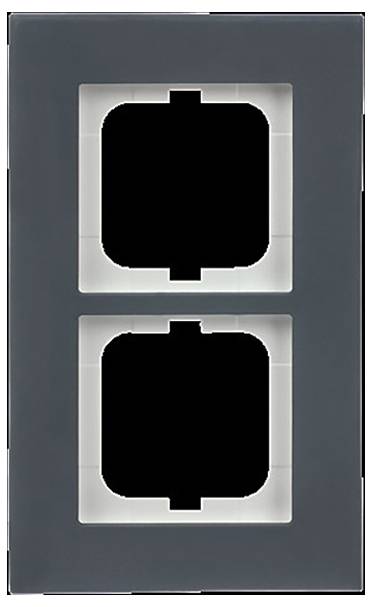

A black frame with two slots for electrical outlets or switches, designed for dual installation on a wall.

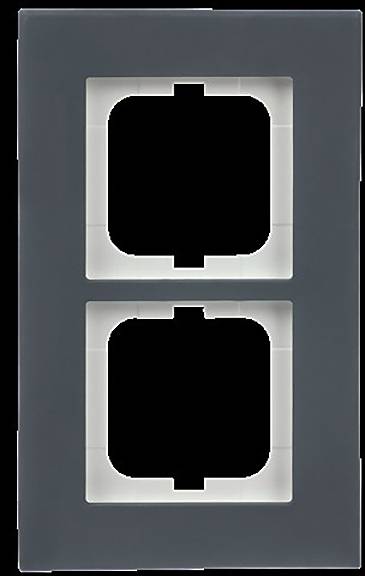

A rectangular black and white frame with two square cutouts, likely for holding electrical outlets or switches.

1/2

Image similar

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Busch-Jaeger cover frame anthracite karat 1722-815

Busch & Jaeger Switch Product Range

Technical specifications

Height: 178 mm
Width 107 mm
Depth: 11 mm
Material: Other
Colour: Anthracite
Protection class (IP) IP20
Mounting width 63 mm
Mounting height 63 mm
Surface protection: Untreated
Impact strength: IK03
Transparent: No.
Design of surface: Matt
With hinged cover: No.
Halogen-free: Yes
Flush mounting: Yes
Material quality: Other
Mounting method: Clamp mounting
Antibacterial treatment: No.
Number of units: 2
Mounting direction: Horizontal and vertical
Number of units horizontal: 2
Number of units vertical: 2
With mounting frame: No.
Suitable for underground passage box: No.
Suitable for device mounting channel: No.
Suitable for panel mounting: No.
Text field/label area: No.
Diameter boring (opening): 71 mm

Type: Busch-Jaeger cover frame anthracite karat 1722-815

Product type: Faceplate

Switch type component: Frame

Type series: Carat

Content: 1 pc(s)

Material: Ceramic

UKCA: not relevant

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3546939 Busch-Jaeger Frame Carat 2CKA001754A4821 1 pc(s)

Description

To cover switches, buttons and sockets.
Real material with individual and open-pore surface.
Each frame is unique in structure and color nuance.
Recommendation: Protect more sensitive real materials from increased mechanical stress.
Anthracite porcelain!
Design line: Carat®, platform 63

This text is machine translated.
