Name: Busch-Jaeger Frame Marking field Busch-balance SI Multicolour 2CKA001754A4554 1 pc(s)
Brand: Busch-Jaeger
SKU: 3544320

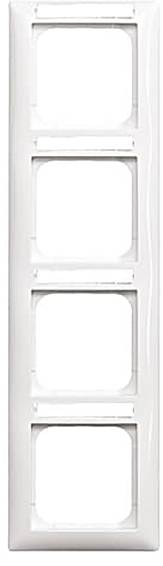

A white vertical frame featuring four rectangular openings, designed for housing light switches or outlets.

Image similar

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

Busch-Jaeger frame 4-fold alpine white 1724 NS-914

Busch & Jaeger Switch Product Range

Technical specifications

Height: 294 mm
Width 81 mm
Depth: 12 mm
Material: Plastic
Colour: Alpine white
Protection class (IP) IP20
Mounting width 55 mm
Mounting height 55 mm
Surface protection: Untreated
Impact strength: IK03
Transparent: No.
Surface design: Glossy
With hinged cover: No.
Halogen-free: Yes
Flush mounting: Yes
Material quality: Thermoplastic
Mounting method: Clamp mounting
Antibacterial treatment: No.
RAL number (similar): 9010
Number of units: 4
Mounting direction: Vertical
Number of units vertical: 4
With mounting frame: No.
Suitable for underground passage box: No.
Suitable for device installation channel: Yes
Suitable for panel mounting: No.
Text field/label area: Yes
Diameter boring (opening): 71 mm

Type: Busch-Jaeger frame 4-fold alpine white 1724 NS-914

Switch type function: Marking field

Product type: Faceplate

Switch type component: Frame

Type series: Busch-balance SI

Factory colour: Multicolour

Dim: (L x W x H) 450 cm x 300 mm x 300 mm

Content: 1 pc(s)

Similar RAL: 9010

Material: Thermoplastic

Height: 300 mm

Length: 450 cm

Width: 300 mm

Weight: 100 g

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3544320 Busch-Jaeger Frame Marking field Busch-balance SI Multicolour 2CKA001754A4554 1 pc(s)

Description

To cover switches, buttons and sockets.
With viewing window and inscription plate.
With small corner radii for cut channel covers.
Undetachable by mounting on the bearing ring
Design line: Busch-balance® SI
Dimensions of the label field 46.9 x 6 mm
