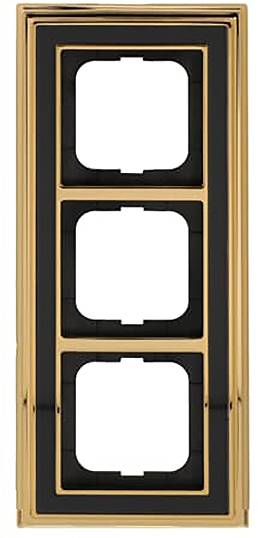

Image similar
Busch-Jaeger Frame Switch, Switch, Socket Dynasty 2CKA001754A4640 1 pc(s)
EAN:
Part number:
Item no:
Highlights & Details
Busch-Jaeger frame 3-way MS/pin anthracite 1723-835
- Busch & Jaeger Switch Product Range
Technical specifications
- Height: 248 mm
- Width 106 mm
- Depth: 12 mm
- Material: Metal
- Colour: Anthracite
- Protection class (IP) IP20
- Mounting width 63 mm
- Mounting height 63 mm
- Surface protection: Other
- Impact strength: IK03
- Transparent: No.
- Surface design: Glossy
- With hinged cover: No.
- Halogen-free: Yes
- Flush mounting: Yes
- Material quality: Other
- Mounting method: Clamp mounting
- Antibacterial treatment: No.
- Number of units: 3
- Mounting direction: Horizontal and vertical
- Number of units horizontal: 3
- Number of units vertical: 3
- With mounting frame: No.
- Suitable for underground passage box: No.
- Suitable for device installation channel: Yes
- Suitable for panel mounting: No.
- Text field/label area: No.
- Diameter boring (opening): 71 mm
- Type
Busch-Jaeger frame 3-way MS/pin anthracite 1723-835
- Switch type function
Switch
Switch
Socket
- Product type
Faceplate
- Switch type component
Frame
- Type series
Dynasty
- Content
1 pc(s)
- Material
Steel
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3543792 Busch-Jaeger Frame Switch, Switch, Socket Dynasty 2CKA001754A4640 1 pc(s)
Description
To cover switches, buttons and sockets.
Design line: Busch-dynasty®, platform 63
This text is machine translated.
Design line: Busch-dynasty®, platform 63
This text is machine translated.
