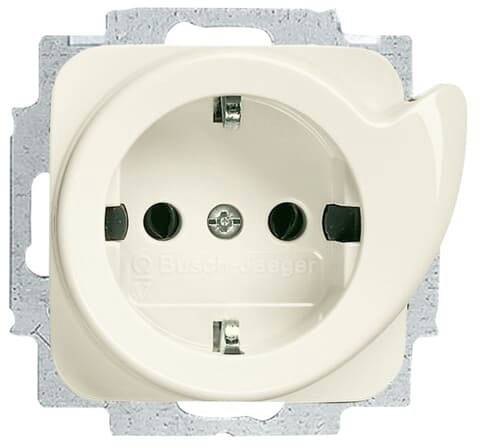

Busch-Jaeger Insert PG socket Oyster white, Creamy white 2CKA002011A2597 1 pc(s)
EAN:
Part number:
Item no:
Datasheet (PDF)
Highlights & Details
Busch Service Socket®
- Busch & Jaeger Switch Product Range
Technical specifications
- Number of units: 1
- Text Box/Label Area: No.
- Impact strength: IK03
- With hinged lid: No.
- Fastening method: Claw/screw fastening
- Halogen-free: Yes
- Transparent: No.
- Material quality: Duroplast
- RAL number (similar): 1013
- Surface type: Glossy
- Surface: Untreated
- Color: Cream white (electrowhite)
- Material: Plastic
- Min Depth of the appliance socket: 40
- Suitable for protection class (IP): IP20
- Mounting type: Flush-mounted
- Design: SCHUKO
- Nominal voltage 250
- Nominal current 16
- Antibacterial treatment: No.
- Ejection mechanism: Yes
- Rated fault current: 0
- Number of sockets switchable: 0
- With function lighting: No.
- With orientation lighting: No.
- With built-in USB power supply: No.
- Protective conductor contact round: No.
- For "difficult conditions" (according to VDE): No.
- Insulated mounting: Yes
- With loop-through function: Yes
- With increased touch protection: No.
- Earthing contact: Yes
- Special power supply: Without special power supply
- Twisted central insert: No.
- With on/off switch: No.
- Number of active contacts (round): 2
- Number of active contacts (flat): 0
- Fault current protection: No.
- With micro fuse: No.
- Surge protection: No.
- Frequency: 50;;50
- Connection type: Plug-in terminal
- With signal lamp: No.
- Number of phases: 1
- Lockable: No.
- Printed/labeled: Without printed text
- Number of modules (for modular design): 1
- Device width 71
- Device height: 12
- Device depth: 32
- Type
Busch Service Socket®
- Switch type function
PG socket
- Product type
Switch product range
- Switch type component
Insert
- Factory colour
Oyster white
Creamy white
- Nominal voltage
250 V
IP20
- Content
1 pc(s)
- Motif
without pressing
- Material
PVC
- UKCA
yes
Documents & Downloads
Datasheet
Datasheet 2334850 Busch-Jaeger Insert PG socket Oyster white, Creamy white 2CKA002011A2597 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2334850 Busch-Jaeger Insert PG socket Oyster white, Creamy white 2CKA002011A2597 1 pc(s)
Description
With plug connection.2-pin (2 P + E) with ejection mechanism.
This text is machine translated.
This text is machine translated.
What kind of Busch-Jaeger Switch Product Range are you looking for?
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
-38%
Conrad Electronic
€ 0.37
€ 0.23*
